Product Details:
|
| Control: | Color Touch-sreen PLC | Press: | Vertical Presss |
|---|---|---|---|
| Drive: | Compressed Air / Cylinders | Heat: | Steam Chamber &steam Pipes |
| Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |

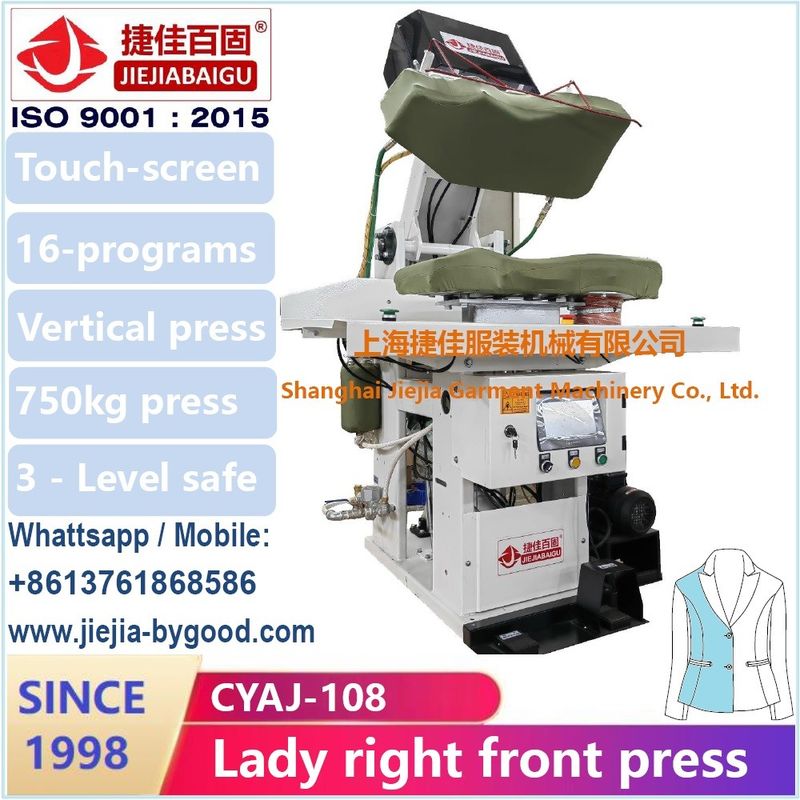

Shanghai Jiejiabaigu Factory 1998 Full Range Garment Ironing Machine lady dress front
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic suit jacket press machine (sleeve elbow seam)
| Model | CYAJ-107 / CYAJ-108 left front / right front |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | upto 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (20L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 900x1200x1650mm |
| Net weight | 470kg |
III. Feature
Scissors-type close & vertical presss
Aluminum buck is suitable for lady dresss
(customizable)s
Automatic LED PLC / Touch-screen PLCs
-16 programs
-MITSUBISHI PLCs
-touch-screen 7"
3 level safety protection device
Steam heating systems
-steam cheambers
-stainless steel pipe
Top buck steam spray
big volume (adjustable) steam valve
Bottom buck has vacuum
Famous pneumatic parts
IV. Full inline suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-105 | sleeve front seam | 900x1200x1300mm |
| 2 | CZBJ-104 | sleeve elbow seam | 900x1200x1300mm |
| 3 | CYAJ-107 | Left front | 1200x1200x1650mm |
| 4 | CYAJ-108 | Right front | 1200x1200x1650mm |
| 5 | CYAJ-122 | Left back | 1200x1200x1650mm |
| 6 | CYAJ-123 | Right back | 1200x1200x1650mm |
| 7 | CYEJ-116.117 | Double shoulder | 1000x1100x2050mm |
| 8 | CYGJ-547 | Collar master | 1100x1100x2050mm |
| 9 | CZBJ-114 | Sleeve blocking | 900x1200x1300mm |
| 10 | CZBJ-114-14 | Sleeve arm-hole | 900x1200x1300mm |
| 11 | CYAJ-126 | Double lapel | 900x1200x1650mm |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
Add: No. 2759 Shendu Road, Shanghai, China 201112
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
