Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Automatic Vertical Jacket Pressing Machine Left Front Steam Heating System

Description
Product Name: Jacket Front Pressing Machine Control: Touch-screen 7" & PLC
Press: Vertical High Pressure 750kg Type: Left Front Body Press
Drive: Compressed Air / Cylinder Electric Power: 220V/1ph/50-60HZ
Feature: Scissors-type Close & Vertical Press Pressure: 100 ~ 750kg
Vacuum: Pipe 2" Or Build-in Vacuum Unit Location Lazer: Optional Or 2 Pieces
High Light:

Left Front Jacket Pressing Machine

,

Steam Heating Jacket Pressing Machine

,

Vertical Suit Ironing Machine

Vertical Automatic jacket Pressing Machine left front Steam Heating System​



I. Feature



Scissors-type close & vertical press

(All buck surface press at same time)

Metal buck is suitable for suit & jacket

(customizable)

Automatic Touch-screen PLC

3 level safety protection device

(easy to check faulty)

Top buck: Steam heating system

                 steam spray

Bottom buck: steam heating system

                 vacuum

top buck with heating chamber & optional vacuum

Famous pneumatic parts




II. Automatic suit jacket press machine (left back press)

Model CYAJ-107
Control Automatic touch-screen PLC
Total pressure 750kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (20L/min) 8mm
Electric power 220V/1ph/5060HZ
Vacuum 1.5kw extra vacuum pump 2”
Drained water 1/2”
Dimension 1200x1200x1650mm
Net weight 420kg







III. Full final suit jacket uniform press machine list



NO. Model Description of machine Dimension: L x W x H mm
1 CYAJ-107 Left front body press 1200x1200x1650

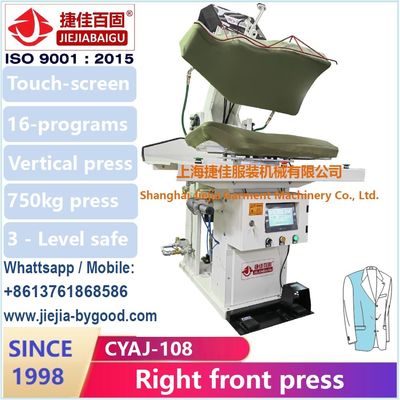

2 CYAJ-108 Right front body press 1200x1200x1650
3 CYAJ-122 Left back body press 1200x1200x1650
4 CYAJ-123 Right back body press 1200x1200x1650
5 CYAJ-126 Double lapel 900x1200x1650
6 CYEJ-116.117 Double shoulder 1000x1000x2150
7 CYGJ-547 Collar master 1100x1100x2150
8 CZBJ-104 Sleeve front 900x1200x1300
9 CZBJ-105 Sleeve elbow 900x1200x1300
10 CZBJ-114 Sleeve arm-hole 900x1200x1300
11 CABJ-114-14 Sleeve blocking 900x1200x1300






V. Q&A

1.How could I get more information?
please contact with our E-mail or local agent.

2. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

3. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

4. Do you have machine video?

Yes. please contact with us.

5. Are you factory?

Yes. We started to manufacture on 1995

6.Our garment is export to USA. Do you have suitable buck?

Yes. We have different types of buck series for your reference.

7.Our factory production is not much, could I have some suggestion about the machine?

Yes. We have double buck machine for small production factory.

8.Do you have English manual and installation instruction?

Yes. We have all machine with English manual and installation instruction.

9.Could you supply OEM product?

Yes. We are supplying many OEM machine for Italy, English, American customer.

10. Could you supply with demo machine?

We could supply with demo machine but it is could be charged for some cost.









======================================
