Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Man Jacket Pressing Machine Vertical Dress Suit Garment Steam Press Machine

Description
Control: Touch-sreen PLC 7 Inch / LED Controller System Press: Vertical 750kg Max
Heat: Steam Pipe & Chamber Drive: 100 Mm Cylinder
Electric Power: 220V/1ph/50HZ Or 110V Certification: ISO9001:2015
Class: High Buck: Back Body Right
Steam: High Volume Spray Drain: Trap 1/2"
High Light:

Dress Suit Steam Press Machine

,

220V Man Jacket Pressing Machine

,

Vertical Automatic Jacket Pressing Machine

CYAJ Jacket blazer suit press machine equipment vertical lapel press Shanghai Jiejiabaigu





Model CZBJ CYAJ
Driving mode Automatic Automatic
Heating model of upper and lower mould Steam Steam
Driving mode of the mould 1 cylinder close & press 1 cylinder close & 1 cylinder press
Steam working pressure (Mpa ) 0.4Mpa to 0.6Mpa 0.4Mpa to 0.Mpa
Steam consumption 420kg 520kg
Dimension 1200mm*1200mm*1300mm 1200mm*1200mm*1650mm



I. Factory

The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries

Our company has passed is090001-2015 quality system certification.

There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department.

Our machine has famous spare part like Mitsubishi, Omron, SCHNEIDER, FOTEK and so on.

The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.



Full range of garment ironing equipment

Reliable equipment quality

Delivery in time



II. Automatic suit jacket press machine (Lady left front press)

Model CYAJ-122 left back body
Control Automatic touch-screen PLC
Total pressure 750kg max
Steam 0.4-0.6MPa (18kg/h) 1/2” pipe
Compress air 0.4-0.6MPa (15L/min) 8mm quick connect
Electric power 220V/1ph/50HZ / 110V
Vacuum 1.5kw extra vacuum pump 2” PIPE
Drained water 1/2” PIPE
Dimension 1200x1200x1650mm
Net weight5 420kg







III. Feature

3.1 Scissors-type close & press

pressure 300kg

3.2 Metal buck is suitable for garment

(customizable)

3.3 Automatic LED controller (8 programs)

(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)

3.4 (3) level safety protection device

3.5 Input & output signal

(easy to check faulty)

3,6 180mm length shock absorber (long life)

Optional air shock absorber system

3.7 Stainless steel board

Optional painted metal board

3.8 Steam heating system (top + bottom)

3.9 Top buck steam spray

(steam chamber supply much volume)

3.10 Bottom buck has vacuum

Scissors-type close & vertical press

(All buck surface press at same time)

Metal buck is suitable for garment

(customizable)

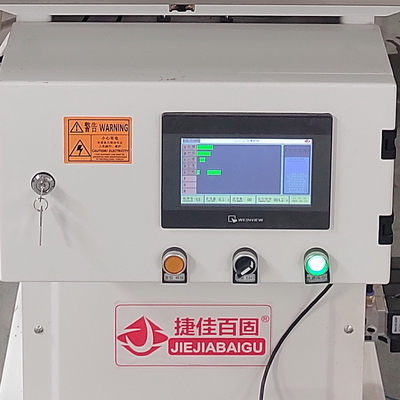

Automatic Touch-screen PLC

3 level safety protection device

(easy to check faulty)

180mm length shock absorber (long life)

Steam heating system

Top buck steam spray

(steam chamber supply much volume)

Bottom buck has vacuum

Famous pneumatic parts

Suit ironing equipment



IV. Full final suit press machine



NO. Model Description of machine Dimension: L x W x H mm

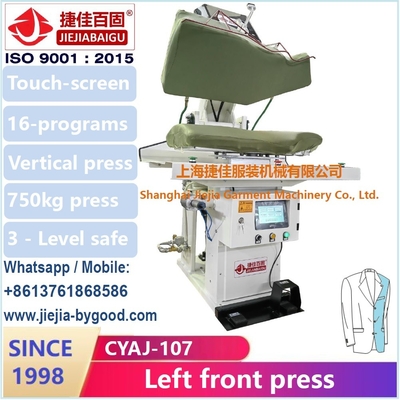

1 CYAJ-107 Left front press 1200x1200x1650

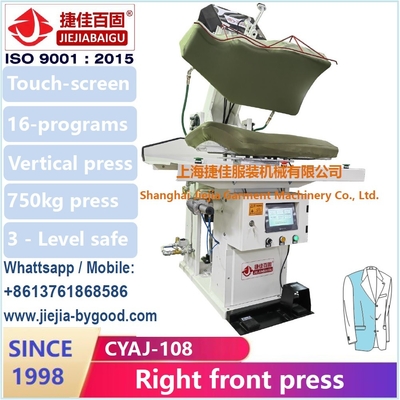

2 CYAJ-108 Right front press 1200x1200x1650

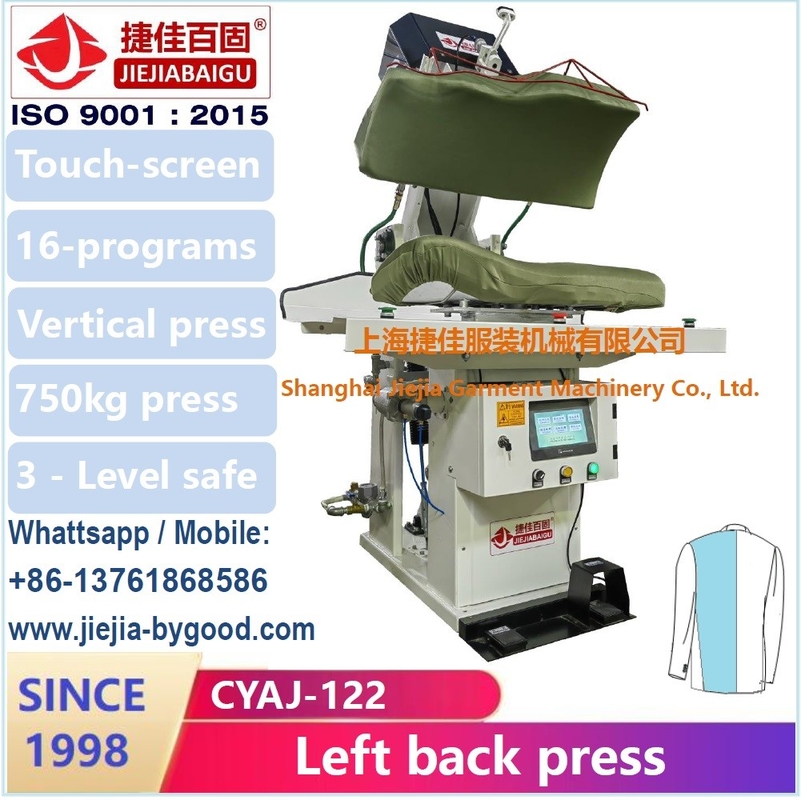

3 CYAJ-122 Left back press 1200x1200x1650

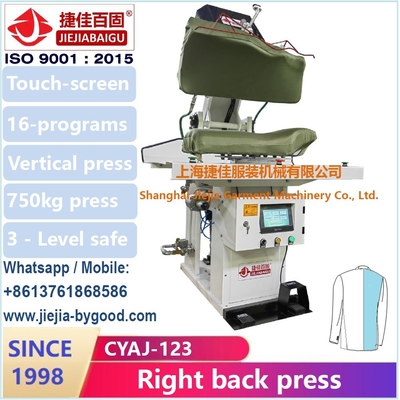

4 CYAJ-123 Right back press 1200x1200x1650
5 CYAJ-126 Double lapel 900x1200x1650
6 CYEJ-116.117 Double shoulder 1000x1000x2150
7 CYGJ-547 Collar master 1100x1100x2150
8 CZBJ-104 Sleeve front 900x1200x1300
9 CZBJ-105 Sleeve elbow 900x1200x1300
10 CZBJ-114 Sleeve arm-hole 900x1200x1300
11 CABJ-114-14 Sleeve blocking 900x1200x1300






Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A





1.Q How could I get more information
A Please contact with our E-mail or local agent.
2.Q Do you have another type of machine?
A Sure. We have 3 different levels of machine for your reference
3.Q Do you have any customer factory to see?
A Sure. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Sure. Please contact with us.
5.Q Are you factory?
A Sure. We started to manufacture on 1995 in Shanghai China.
6.Q Do you have different buck for different market?
A Sure. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Sure. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Sure s. We have all for you.
9.Q Could you supply OEM product?
A Sure. We are supplying OEM machine for Italy, English, American customer.
10.Q Could you supply with demo machine?
  We could supply with demo machine with refundable cost.
