Highlight:
Steam Trouser Pressing Machine
, Jeans Trouser Pressing Machine
, Industrial Trouser Pressing Machine

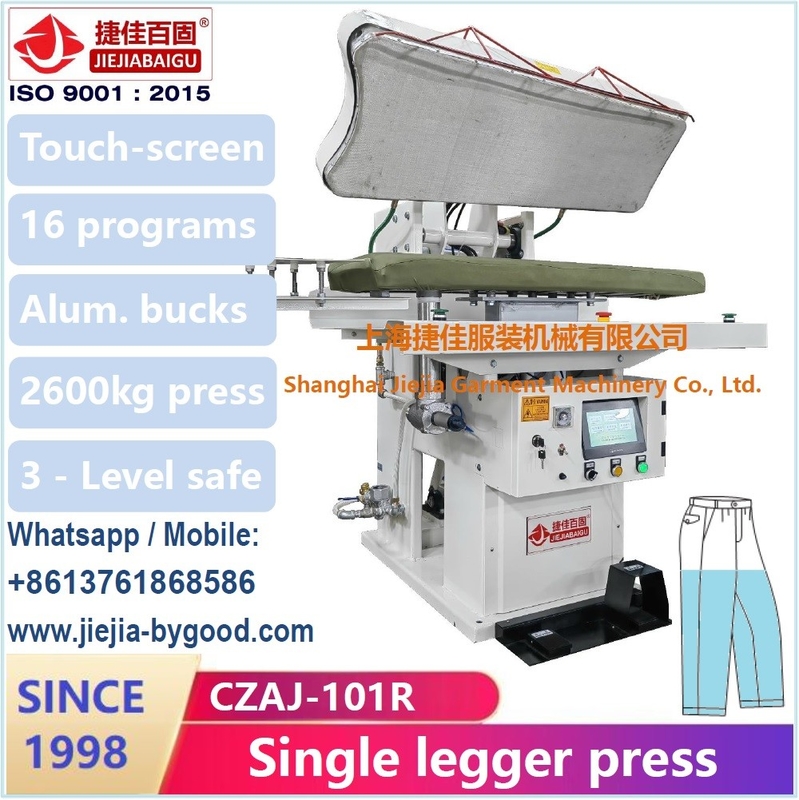

Jeans denim trousers Steam Industrial Trouser Pressing Machine legger
Jeans denim trousers Steam Industrial Trouser Pressing Machine legger
This steam press is perfect machine forr hotels, classic laundry shop, health care center to do ironing job of clothes
This steam press is used for shaped-fixed and ironing processing for suits, the trousers' legs and rousers which made of woool, synthetic fibric, it is easy in maintance and adaptable to medium and small-size garment manufactures.
Both the top mold and bottom mold is vacuum and heated by steam.
The machine can be operated manually or automatic that the air operated automatic steam press.
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic Pant press machine (seat seam)
| Model | CZAJ-102R |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | 1600kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 0.75kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 900x1200x1650mm |
| Net weight | 320kg |
III. Feature
Scissors-type close & press
Metal buck is suitable for garment
(customizable)
Automatic LED PLC / Touch-screen PLC
3 level safety protection device
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray
Italy steam valve
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
IV. Full pant press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam | 900x1200x1300 |
| 2 | CZCJ-136 | Pocket | 900x900x1650 |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
- Fabric shrink / inspect / fuse machinery
- Suits pressing machinery
- Pant machinery
- Shirt machinery
- Jeans machinery
- Knitting machinery
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
