Product Details:
|
| Control: | Touch-sreen PLC | Press: | Vertical |
|---|---|---|---|
| Heat: | Steam | Drive: | Compressed Air / Cylinder |
| Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |
| High Light: | 0.6MPa Dress Pressing Machine,0.4MPa Dress Pressing Machine,ISO9001 press iron machine for clothes |
||
CYAJ Jacket blazer suit press machine equipment vertical back press Shanghai Jiejiabaigu
Name: Dress Press for clothes,hotel laundry machines
Ironing table, ironer, vacuum ironing table, laundry equipment, laundry machines, dry cleaning shop.
Short introduction:
Controlled by computer, it is very easy to operate. With special designed mold, it can fit the part of garment that need to press. The method of applying cushion material is very reasonable. No matter how thick or thin the garment is, even the uniform with copper buttons, it will not damage the garment and buttons, You'll be satisfied with the ironing quality. Patented design of steam circuit, which makes the appearance of whole machine very tidy. Only need 5 minutes to preheat. Equipment with floating canister style draining machine, it is with efficient steam-saving effect.
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time

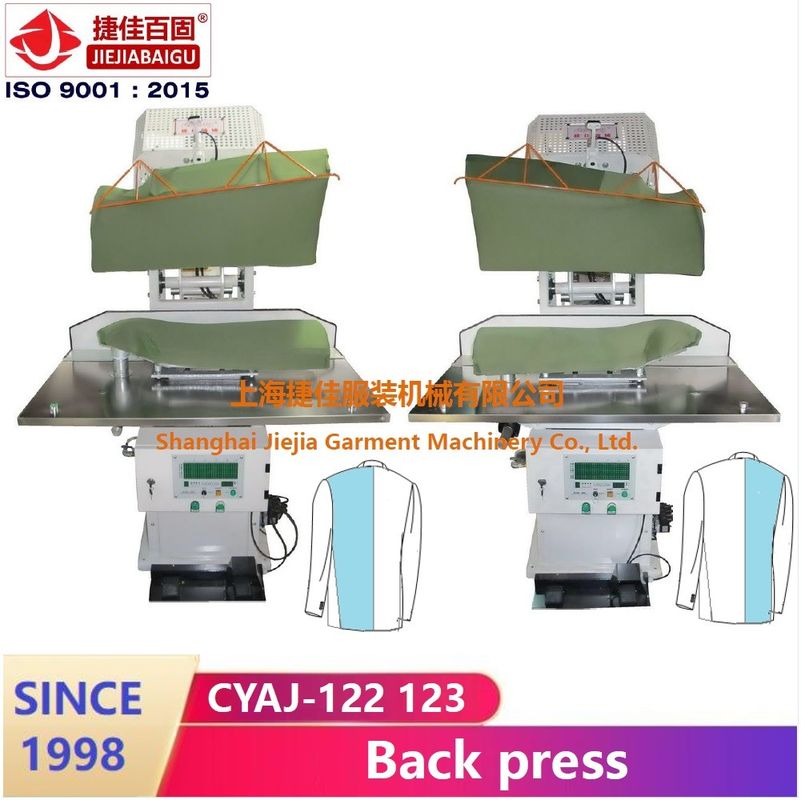

II. Automatic suit jacket press machine (Back)
| Model | CYAJ-122 (left), CYAJ-123(right) |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 1200x1200x1650mm |
| Net weight | 470kg |
III. Feature
Scissors-type close & vertical press
(All buck surface press at same time)
Metal buck is suitable for garment
(customizable)
Automatic Touch-screen PLC
3 level safety protection device
(easy to check faulty)
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
