Product Details:
|
| Control: | Touch-sreen PLC | Press: | Vertical Press |
|---|---|---|---|
| Heat: | Steam 0.6MPa | Drive: | Compressed Air / Cylinder |
| Electric Power: | 220V/1ph/50HZ-60HZ | Certification: | ISO9001:2015 |
| Garment: | Suit Jacket | Part: | Double Lapel |
| Suction: | Suction Pipe System | Cover: | Silicone Foam |
| High Light: | Suit Garment Steam Press Machine,Jacket garment steam press machine,220V steam press machine for clothes |
||
CYAJ Jacket blazer suit press machine equipment vertical lapel press Shanghai Jiejiabaigu
| Model | CPAJ | CYAJ |
| Driving mode | Manual | Automatic cylinder |
| Heating model of upper and lower mould | Steam | Steam heating system x2 |
| Driving mode of the mould | Upper mould hand operated Lower mould foot operated |
Upper mould and lower mould automatic |
| Steam working pressure (Mpa ) | 0.4Mpa to 0.6Mpa | 0.4Mpa to 0.Mpa |
| Steam consumption | 20kg/h/ | 20kg / hour / |
| Dimension | 900mm*1200mm*1650mm | 900mm*1200mm*1650mm |
I. Factory
The company established a production base in Shanghai in 1998, with more than 24 years of clothing ironing equipment design, research and development, production experience beter service.
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
Our company has passed is090001-2015 quality system certification for increasing quality.
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers 4- jeans 5- sweater ironing machine.
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time

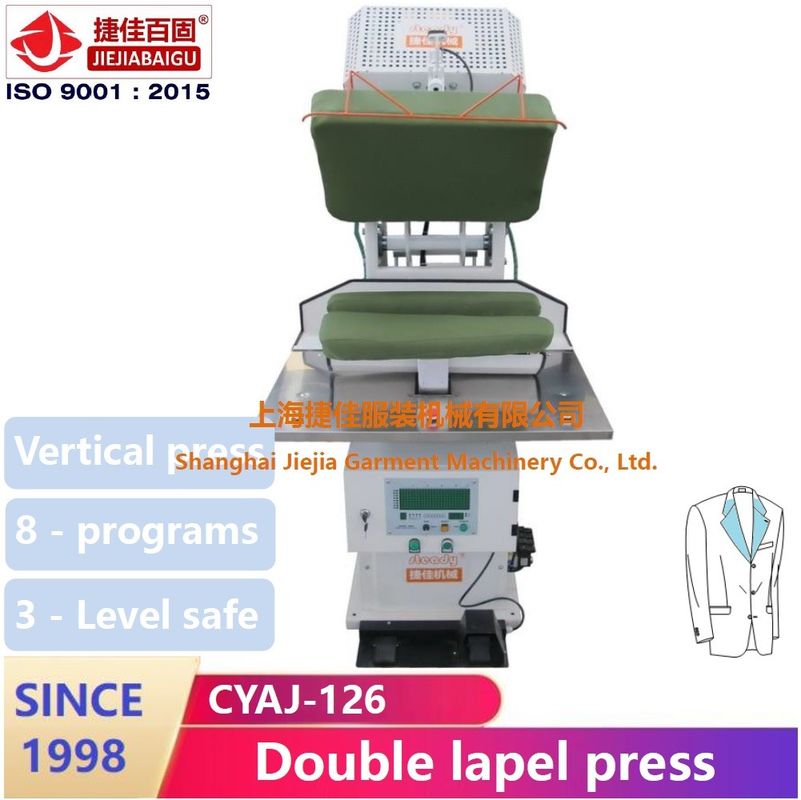

II. Automatic suit jacket press machine (Double lapel)
| Model | CYAJ-126 double lapel |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg (max) |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” pipe |
| Compress air | 0.4-0.6MPa (15L/min) 8mm pipe |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” system |
| Drained water | 1/2” inlet |
| Dimension | 900x1200x1650mm |
| Net weight | 420kg |
III. Feature
Scissors-type close & vertical press
(All buck surface press at same time)
Metal buck is suitable for garment
(customizable)
Automatic Touch-screen PLC
3 level safety protection device
(easy to check faulty for maintenance)
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front press equipment | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press equipment | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press equipment | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press equipment | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
