Product Details:
|
Control: | Touch-sreen PLC 7" Color | Press: | Vertical Ironing |
---|---|---|---|
Heat: | Steam Pipe Chamber System | Drive: | Compressed Air / Cylinder Automatic |
Electric Power: | 220V/1ph/50HZ Supply | Certification: | ISO9001:2015 |
Garment: | Suit Dress | Part: | Collar Master |
Buck: | 1 Top + 1 Bottom | Suction: | 2" Pipe High |
Highlight: | Vertical Dress Pressing Machine,Suit Dress Pressing Machine,Automatic clothes steam press machine |
Suit Vertical press Dress Pressing Machine Automatic Touch Screen PLC suit press machine
I. Factory
The company established a production base in Shanghai in 1998, with more than 24 years of clothing ironing equipment design, research and development, production experience for all kinds of garment.
sales & service network are all in China, in Southeast Asia, Europe, America, Africa and other countries
Our company has passed is090001-2015 quality system certification to keep high quality.
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers 4 - jeans 5- sweater ironing machine and so on.
II. Full final suit press machine
NO. | Model | Description of machine | Dimension: L x W x H mm |
1 | CYAJ-107 | Left front press | 1200x1200x1650 |
2 | CYAJ-108 | Right front press | 1200x1200x1650 |
3 | CYAJ-122 | Left back press | 1200x1200x1650 |
4 | CYAJ-123 | Right back press | 1200x1200x1650 |
5 | CYAJ-126 | Double lapel | 900x1200x1650 |
6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
7 | CZCJ-147 | Collar master | 1100x1100x2150 |
8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |

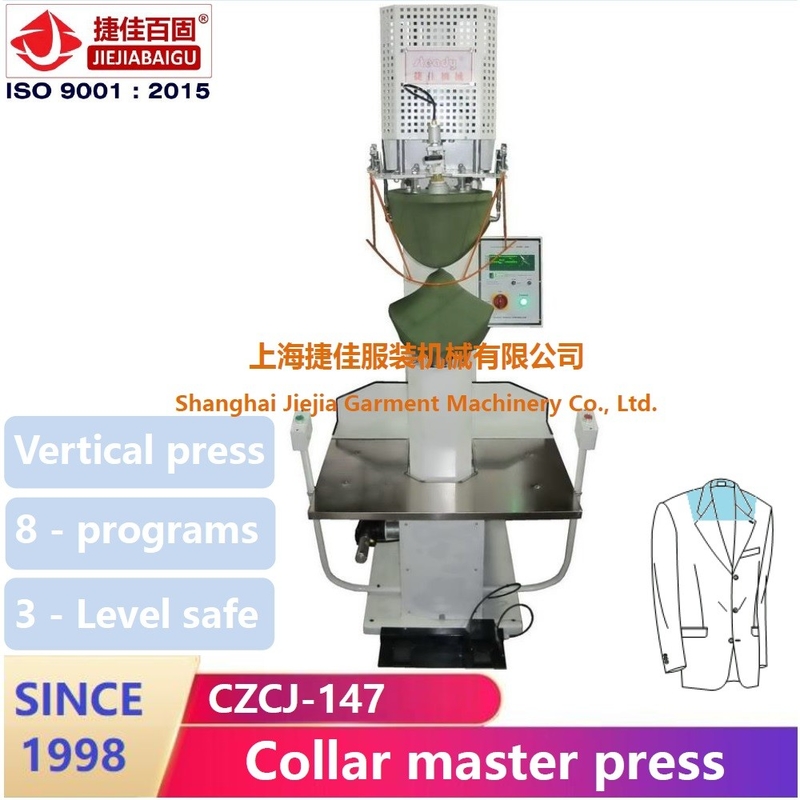

III. Automatic suit jacket press machine (collar)
Model | CZCJ-147 |
Control | Automatic touch-screen PLC / LED controler |
Total pressure | 400kg |
Steam | 0.4-0.6MPa (18kg/h) 1/2” connection |
Compress air | 0.4-0.6MPa (15L/min) 8mm connector |
Electric power | 220V/1ph/50HZ or 380V |
Vacuum | 1.5kw extra vacuum pump 2” SYSTEM |
Drained water | 1/2” inlet |
Dimension | 1000x1000x2150mm |
Net weight | 300kg |
IV. Feature
Scissors-type close & vertical press=
(All buck surface press at same time)=
3 TOP press bucks=
Metal buck is suitable for garment=
(customizable)=
Automatic Touch-screen PLC=
-steam spray optional: top, bottom or both=
-vacuum optional: top, bottom or both=
3 level safety protection device=
Steam heating system=
Top buck steam spray=
Bottom buck has vacuum=
Famous pneumatic parts=
