Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit

Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit
Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit
Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit

Large Image :  Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYHJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit

Description
Control: Touch-sreen PLC Press: Vertical
Heat: Steam Drive: Compressed Air / Cylinder
Close: Rotary Certification: ISO9001
Highlight:

1.5KW Dress Pressing Machine

,

Jacket Dress Pressing Machine

,

1500W jacket pressing machine



Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit





I. Introduction



The cor established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries

Our company has passed is090001-2015 quality system certification.

There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.

This steam press is used for shaped-fixed and ironing processing for suits, the trousers' legs and rousers which made of woool, synthetic fibric, it is easy in maintance and adaptable to medium and small-size garment manufactures.

Both the top mold and bottom mold is vacuum and heated by steam.

The machine can be operated manually or automatic that the air operated automatic steam press.

Ironing table, ironer, vacuum ironing table, laundry equipment, laundry machines, dry cleaning shop.

Short introduction:


Controlled by computer, it is very easy to operate. With special designed mold, it can fit the part of garment that need to press. The method of applying cushion material is very reasonable. No matter how thick or thin the garment is, even the uniform with copper buttons, it will not damage the garment and buttons, You'll be satisfied with the ironing quality.


Patented design of steam circuit, which makes the appearance of whole machine very tidy. Only need 5 minutes to preheat. Equipment with floating canister style draining machine, it is with efficient steam-saving effect.

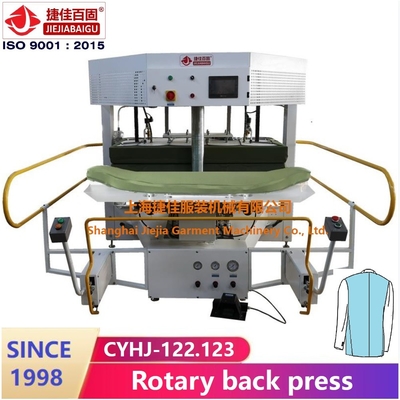

II. Automatic suit jacket press machine (Back)

Model CYHJ-122.123
Control Automatic touch-screen PLC 7INCH COLOR SCREEN
Total pressure 750kg UP
Steam 0.4-0.6MPa (35kg/h) 1/2”
Compress air 0.4-0.6MPa (35L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 1.5kw extra vacuum pump 2”
Drained water 1/2”
Dimension 1700x1700x1750mm
Net weight 750kg



III. Feature

Rotary-type close & vertical press

2 working buck

one is loading & unloading working

anothr is presssing, increase efficiency

(All buck surface press at same time)

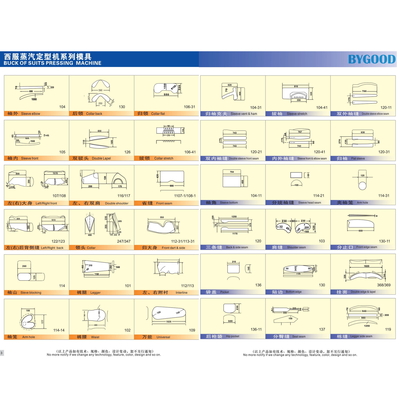

Metal buck is suitable for garment

(customizable)

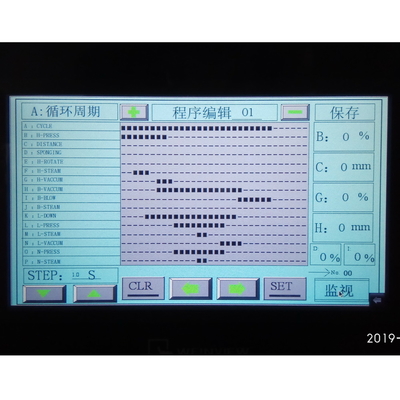

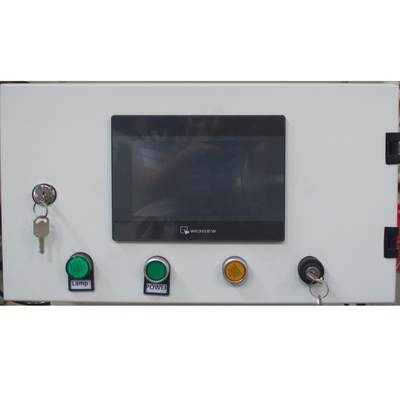

Automatic Touch-screen PLC

3 level safety protection device

(easy to check faulty)

180mm length shock absorber (long life)

Steam heating system

Top buck steam spray

(steam chamber supply much volume)

Bottom buck has vacuum

Famous pneumatic parts





IV. Full final suit press machine





NO. Model Description of machine Dimension: L x W x H mm
1 CYHJ-107 Left front press 1700x1700x1750
2 CYHJ-122 Left back press 1700x1700x1750
3 CYHJ-126 Double lapel 1600x1700x1750
4 CYEJ-116.117 Double shoulder 1000x1000x2150
5 CYGJ-547 Collar master 1100x1100x2150
6 CZBJ-104 Sleeve front 900x1200x1300
7 CZBJ-105 Sleeve elbow 900x1200x1300
8 CZBJ-114 Sleeve arm-hole 900x1200x1300
9 CABJ-114-14 Sleeve blocking 900x1200x1300




Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction

Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit 0






Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit 1Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit 2


Vertical rotary Jacket 1.5KW Dress suit Pressing Machine 1500W steam chamber blazer suit 3
