Product Details:
|
| Control: | Touch-sreen PLC | Press: | Vertical |
|---|---|---|---|
| Heat: | Steam | Drive: | Compressed Air / Cylinder |
| Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |
| High Light: | 0.6MPa fully automatic cloth press machine,0.4MPa fully automatic cloth press machine,Jacket industrial clothing press machine |
||
CYAJ Jacket blazer suit press machine equipment vertical front & edge Shanghai Jiejiabaigu
I. Feature
Scissors-type close & vertical press
(All buck surface press at same time)
Metal buck is suitable for garment
(customizable)
side buck vertical press

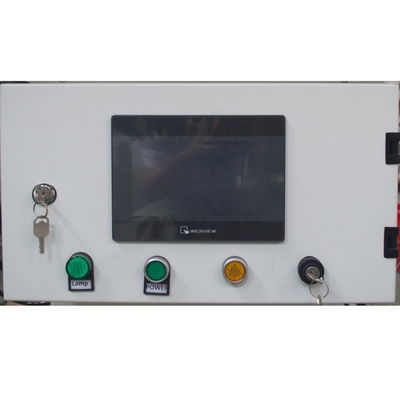

Automatic Touch-screen PLC
3 level safety protection device
(easy to check faulty)
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
II. Automatic suit jacket press machine (Front & edge press)
| Model | CYAJ-368 CYAJ-369 |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 1200x1200x1650mm |
| Net weight | 470kg |
III. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
IV. Full inline suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-120-21 | sleeve front seam | 900x1200x1300 |
| 2 | CZBJ-120-31 | sleeve elbow seam | 900x1200x1300 |
| 3 | CYAJ-112-31 | Left front dart press | 1200x1200x1650 |
| 4 | CYAJ-113-31 | Right front dart press | 1200x1200x1650 |
| 5 | CYAJ-112 | Left interline | 1200x1200x1650 |
| 6 | CYAJ-113 | Right interliine | 1200x1200x1650 |
| 7 | CYAJ-104-41 | Sleeve stetch | 900x1200x1650 |
| 8 | CYAJ-120 | Back & side seams | 1200x1200x1650 |
| 9 | CZBJ-103 | shoulder seam | 900x1200x1300 |
| 10 | CYAJ-368 | Front and edge | 1200x1200x1650 |
| 11 | CYAJ-369 | Front and edge | 1200x1200x1650 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
