Product Details:
|
Control: | LED PLC / Touch-sreen PLC | Press: | Scissors |
---|---|---|---|
Heat: | Steam | Drive: | Compressed Air / Cylinder |
Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |
Highlight: | 0.75KW pants steam press machine,220V pants steam press machine,Touch Screen PLC steam press pants |
CZAJ pant trousers final line Auto-PLC high pressure press machine legger Shanghai Jiejiabaigu
I. Full pant press machine
NO. | Model | Description of machine | Dimension: L x W x H mm |
1 | CZBJ-137 | Seat seam | 900x1200x1300 |
2 | CZCJ-136 | 900x900x1650 | |
3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
5 | CZBJ-119 | Side seam | 1200x1200x1300 |
6 | CZBJ-102 | Topper | 900x1200x1300 |
7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
9 | CZBJ-101 | Legger | 1200x1200x1300 |
10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
II. Automatic Pant press machine (legger)

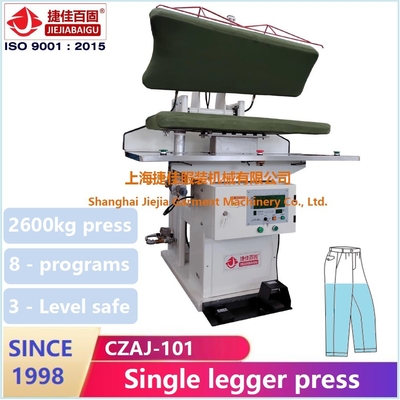

Model | CZAJ-101 |
Control | Automatic LED PLC / touch-screen PLC |
Total pressure | 2600kg |
Steam | 0.4-0.6MPa (18kg/h) 1/2” |
Compress air | 0.4-0.6MPa (25L/min) 8mm |
Electric power | 220V/1ph/50HZ |
Vacuum | 0.75kw extra vacuum pump 2” |
Drained water | 1/2” |
Dimension | 1200x1200x1350mm |
Net weight | 470kg |
III. Feature
Scissors-type close & press
Dual cylinder: close + press
Max pressure: 2600kg

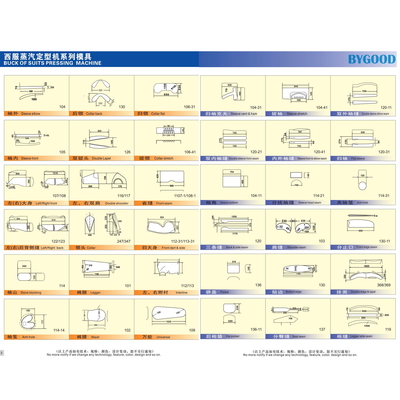

Metal buck is suitable for garment
(customizable)

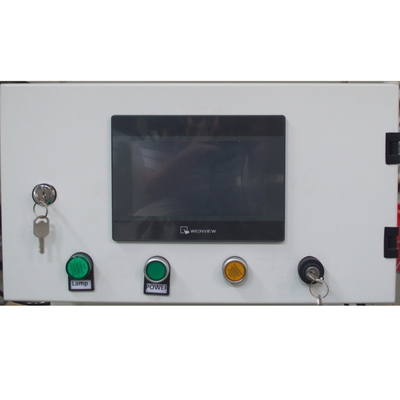

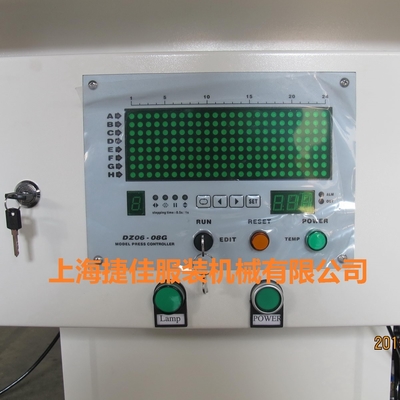

Automatic LED PLC / Touch-screen PLC
3 level safety protection device
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
