Product Details:
|
| Control: | LED PLC / Touch-sreen PLC | Press: | Scissors |
|---|---|---|---|
| Heat: | Steam / Electric + Steam | Drive: | Compressed Air / Cylinder |
| Buck: | Aluminium Made | Steam Spray: | Japan Design Bronze Made |
| High Light: | Wrinkle Free Trouser Pressing Machine,High Pressure Trouser Pressing Machine,1.7KW iron press machine for clothes |
||

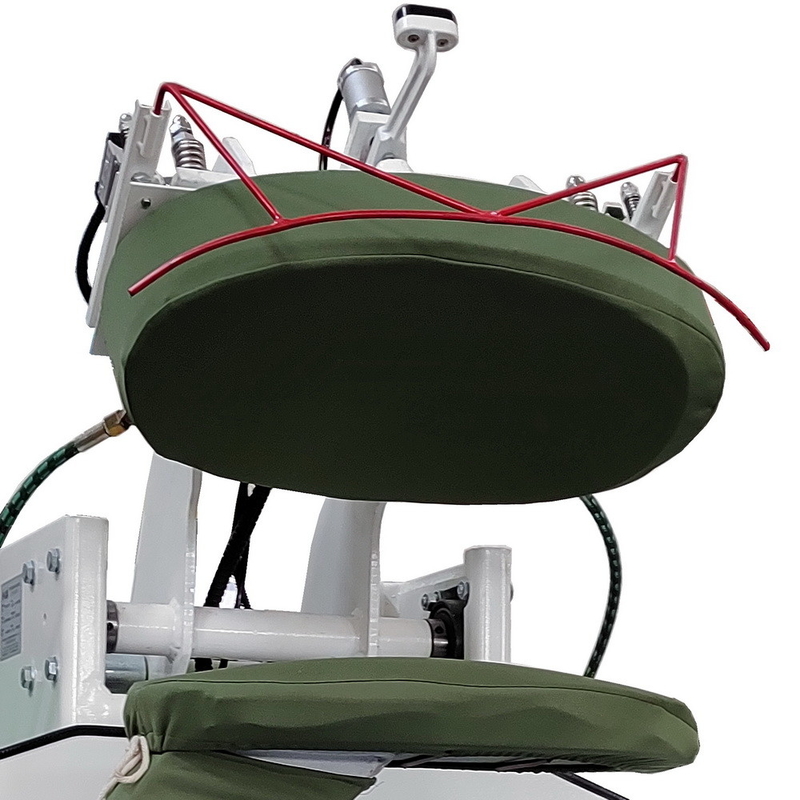

Auto-PLC high pressure wrinkle free trouser pant waist press machine pant final line
I. Feature
Scissors-type close & press
Dual cylinder: close + press
Max pressure: 1600kg
Aluminum buck is suitable for waist of pant
(customizable)
6 different buck options
Automatic LED PLC / Touch-screen PLC
3 level safety protection device
180mm length shock absorber (long life)
Steam heating system + electric heating
Top buck steam spray
(steam chamber supply much volume)
Bottom buck has steam heating & vacuum
Famous pneumatic parts
II. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
III. Automatic wrinkle free Pant press machine (waist)
| Model | CZAJ-102 / CZAJ-102R (electric heating) |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | 1600kg |
| Steam | 0.4-0.6MPa (20kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (25L/min) 8mm |
| Electric power | 220V/1ph/50HZ, 1.7KW |
| Vacuum | 0.75kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 900x1200x1350mm |
| Net weight | 420kg |
IV. Full pant press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam open | 900x1200x1300 |
| 2 | CZCJ-136 | Pocket press | 900x900x1650 |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper / waist | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
V. Q&A
| 1.Q | How could I get more information about your equipment & factory |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of equipment? |
| A | Yes. We have 3 different levels of equipment for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Yes. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Yes. Please contact with us. |
| 5.Q | Are you factory? |
| A | Yes. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable buck? |
| A | Yes. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Yes. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Yes. We have all. |
| 9.Q | Could you supply OEM product? |
| A | Yes. We are supplying OEM equipment for Italy, English, American customer. |
| 10.Q | Could you supply with demo equipment e? |
| We could supply with demo equipment with some cost. |
