Product Details:
|
| Control: | LED PLC / Touch-sreen PLC | Press: | Vertical Press |
|---|---|---|---|
| Heat: | Steam Champer | Drive: | Compressed Air / Cylinder |
| Vacuum: | Build-in / Vacuum Pipe System | Frame: | Top Frame |
| Steam Spray: | Japan Original Design | Buck: | Legger Design |
| High Light: | Legger Vertical fully automatic cloth press machine,80W fully automatic cloth press machine,Fully Automatic clothes pressing machine |
||

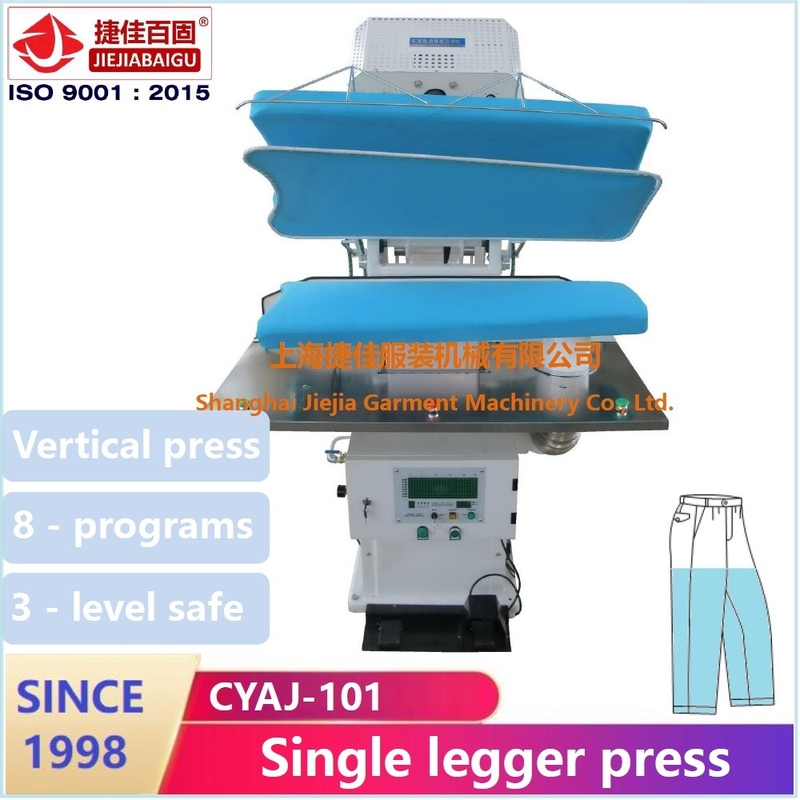

LED PLC cloth pant trouser legger vertial press machine pant final press
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Machine's application
4.1 >High class wool trousers pant legger press in pant final press line
4.2 >Dark color light fabric pant final press
4.3 >classical jacket blazer back pant final press
4.4 >formal jacket blazer back pant final press
Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
I. Instructions:
CYAJ-101 is used to press pant trouser legger in pant final press line.
They are designed for different kind of fabric with many different functions
II. Automatic Pant press machine (legger)
| Model | CYAJ-101 |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” inlet |
| Compress air | 0.4-0.6MPa (25L/min) 8mm pipe |
| Electric power | 220V/1ph/50HZ 80W |
| Vacuum |
1.5kw extra vacuum pump 2” build-in unit: 0.75kw |
| Drained water | 1/2” |
| Dimension | 1200x1200x1650mm |
| Net weight | 470kg |
III. Feature
Scissors-type close & vertical press
Dual cylinder: close + press
Max pressure: 750kg
Metal buck is suitable for pant trousers legger
(customizable)
Automatic LED PLC / Touch-screen PLC
3 level safety protection device design
180mm length shock absorber (long life)
with stretch frame & covering knitting fabric
anti-shining
Steam heating system
Top buck steam spray
(steam chamber supply much volume)
Japan original design steam valve
Bottom buck has vacuum
Famous pneumatic parts
IV. Full pant press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam open | 900x1200x1300 |
| 2 | CZCJ-136 | 900x900x1650 | |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam open | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam open | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
|
1.Q |
How could I get more information |
|
A |
Please contact with our E-mail or local agent. |
|
2.Q |
Do you have another type of machine? |
|
A |
Sure. We have 3 different levels of machine for your reference |
|
3.Q |
Do you have any customer factory to see? |
|
A |
Sure. Please contact with us to find close one for you. |
|
4.Q |
Do you have machine video? |
|
A |
Sure. Please contact with us. |
|
5.Q |
Are you factory? |
|
A |
Sure. We started to manufacture on 1995 |
|
6.Q |
Our garment is export to different countries. Do you have suitable buck? |
|
A |
Sure. We have different types of buck series for your reference. |
|
7.Q |
Our factory production is not much, could I have some suggestion? |
|
A |
Sure. We have double buck machine for small production factory. |
|
8.Q |
Do you have English manual and installation instruction? |
|
A |
Sure s. We have all. |
|
9.Q |
Could you supply OEM product? |
|
A |
Sure. We are supplying OEM machine for Italy, English, American customer. |
|
10.Q |
Could you supply with demo machine? |
|
|
We could supply with demo machine with some cost. |
