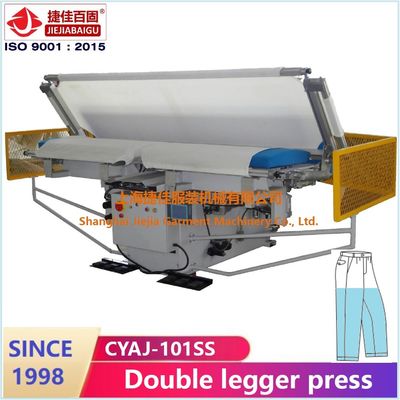

Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame

Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame
Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame
Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame

Large Image :  Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 20-30 works day
Supply Ability: 40 units per month

Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame

Description
Control: LED PLC Or Touch-sreen PLC Press: Vertial
Heat: Steam Drive: Compressed Air Cylinder
Frame: Top And Bottom Germany Made Fabric Buck: Double Legger
Suction: Top And Bottom Left And Right Steam: Top And Bottom
Highlight:

Double Legger Trouser Pressing Machine

,

Touch Screen Trouser Pressing Machine

,

ISO9001 commercial steam press for clothes

Touch-screen Auto-PLC double legger vertical press machine trousers pant final press





1. Instruction:

CYAJ-101SS is able to press double pant legger in on time.

Re different fabric, it is able to set different pressing program.

Program could control suction, frame, steam, press automatically.



1. steam pressing machine,hotel equipment
2. with reasonable structure design
3. Strong wind suctionaaaaSpecification
Name: steam pressing machine
Ironing table, ironer, vacuum ironing table, laundry equipment, laundry machines, dry cleaning shop.



2. Machine perameter:



Model CYAJ-101SS
Control Automatic LED PLC / touch-screen PLC
Total pressure 750kg
Steam 0.4-0.6MPa (35kg/h) 1/2”
Compress air 0.4-0.6MPa (80L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 3kw extra vacuum pump 2”x2
Frame Top + bottom, Germany made fabric
Drained water 1/2”
Dimension 3000x1600x1650mm
Net weight 950kg



3. Machine advantage

3.1 —Vertical press: all surface touch at same time to guarantee pressure equally

3.2 — Automatic LED PLC / Touch-screen PLC

          3 level safety protection device

3.3 —with 180mm length shock absorber (long life)

3.4 —with stretch frame & Germany-made knitting fabric (anti-shining)

3.5 —top buck and bottom buck with steam heating chamber

3.6 —Top steam spray by Japan design valve (dry & huge valume)

3.7 —Steam spray: top + bottom

3.8 —Vacuum: left bottom + right bottom + top



4. Machine application

4.1 —High class wool trousers double legger trousers pant final press

4.2 —Dark color light fabric trousers double legger pant final press

4.3 —classical trousers double legger pant final press

4.4 —formal trousers double legger pant final press





5. Machine picture

Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame 0



Put double legger on the bottom buck







Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame 1



close stretch frame

Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame 2



Top buck close and start program



Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame 3



Automatic PLC runs program



Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame 4



After pressing, the trousers legger looks flat and no shining.



Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame 5



6. Full pant press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-137 Seat seam 900x1200x1300
2 CZCJ-136 Pocket 900x900x1650
3 CZAJ-666 Legger stretch 1200x1200x1350
4 CZAJ-119 High pressure side seam 1200x1200x1350
5 CZBJ-119 Side seam 1200x1200x1300
6 CZBJ-102 Topper 900x1200x1300
7 CZAJ-102 High pressure topper 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topper 900x1200x1350
9 CZBJ-101 Legger 1200x1200x1300
10 CZAJ-101 High pressure legger 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure legger 1200x1200x1350
12 CYAJ-101 Vertical press legger 1200x1200x1650
13 CYAJ-101S Vertical press double legger 3000x1600x1650
14 VTH-288A Pant blowing machine / dummy 500x1200x2000



Double Legger Vertical Trouser Pressing Machine Touch Screen PLC stretch frame 6



7. Company profile:



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.





8.  Q&A

8.1 —How could I get more information?
  please contact with E-mail and telephone

8.2 —Do you have another type of machine ?
  Yes. we have 3 different levels of machine for your reference

8.3 —Do you have any customer factory to see?
  Yes. please contect with us to find close one for you.

8.4 —Do you have machine video?

  Yes. please contact with us.

8.5 —Are you factory?

  Yes. We have manufactured for over 20 years.

8.6 —Could I customize machine or buck

  Yes. We could make machine according to your requirement.
