Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric

Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric
Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric
Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric

Large Image :  Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZBJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric

Description
Control: LED PLC / Touch-sreen PLC /manual Option Press: Scissors Close Press Way
Heat: Steam Chamber And Steam Pipe Drive: Compressed Air100 Cylinder
Buck: Shirt Collar & Cuff Steam Spray: Italy Made Valve 1/2" Outlet
Suction: Build-in Suction Unit Pump Suitable For: Dry Clean Press
High Light:

1500w Laundry Steam Press

,

0.6MPa Laundry Steam Press

,

380v industrial clothing press machine

Auto-PLC laundry press machine commercial laundry press machine Laundry press



 Factory

The company -established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

Customers are all in China, in Southeast-Asia, -Europe, -America,- Africa and other countries

Our company has passed is090001-2015 quality system- certification.



1. Instructions of CZBJ-L220:



Litter laying reasonable method, and then thick thin clothing, uniforms and even brass buttons when hot, it will not damage clothing and buttons, ironing satisfactory quality.



CZBJ-L220 is used to press collar and cuff of shirt in dry wash laundry.

They are designed for different kind of fabric with unersal buck.



2. Machine perameter of CZBJ-L220:

Model CZBJ-L220 (shirt collar & cuff)
Control Automatic touch-screen PLC / LED PLC controller
Total pressure 100-300kg setting
Steam 0.4-0.6MPa (18kg/h) 1/2” pipe inlet
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ / 380V/3ph/50hz
Vacuum 1.5kw / 0.75 build-in vacuum unit pump
Drained water 1/2”
press type dry press
Stem spray Italy made valve
Dimension 1200x1200x1300mm
Net weight 370kg



3. Machine's advantage

3.1 ) Scissors press: simple movement and more stability

3.2 ) Manual control / LED PLD / Touch-screen PLC with more function

3 level safety protection design
buck gap is able to set between 0-50mm in PLC

3.3 ) Advanced 180mm length shock absorber (long life use)

3.4 ) with different buck design and sizes

3.5 ) top buck and bottom buck with steam heating chamber

3.6 ) Top steam spray by Italy made valve (steam: dry & huge valume)

3.7 ) Steam spray: bottom

3.8 ) Vacuum: bottom

3.9 ) top buck with extra heating pipe



4. Machine's application

4.1 ) High class wool jacket blazer front suit final press

4.2 ) Dark color light fabric jacket blazer font suit final press

4.3 ) classical jacket blazer font suit final press

4.4 ) formal jacket blazer font suit final press



5. Full final suit press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-137 Seat seam 900x1200x1300
2 CZCJ-136 Pocket 900x900x1650
3 CZAJ-666 Legger stretch 1200x1200x1350
4 CZAJ-119 High pressure side seam 1200x1200x1350
5 CZBJ-119 Side seam 1200x1200x1300
6 CZBJ-102 Topper 900x1200x1300
7 CZAJ-102 High pressure topper 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topper 900x1200x1350
9 CZBJ-101 Legger 1200x1200x1300
10 CZAJ-101 High pressure legger 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure legger 1200x1200x1350
12 CYAJ-101 Vertical press legger 1200x1200x1650
13 CYAJ-101S Vertical press double legger 3000x1600x1650
14 VTH-288A Pant blowing machine / dummy 500x1200x2000





Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



6. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.



=========================================

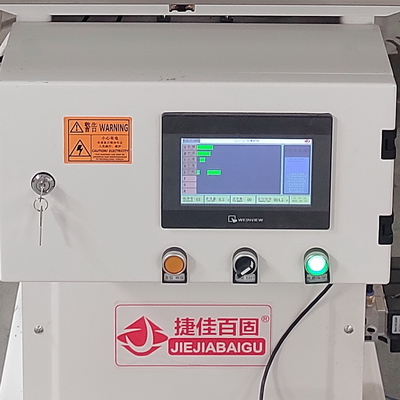

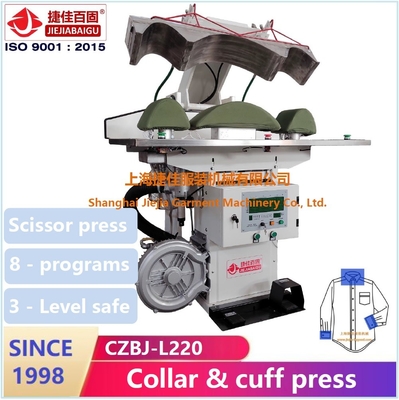

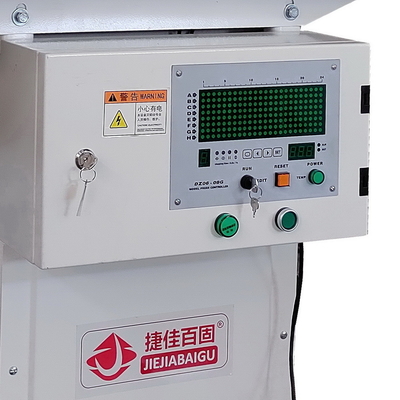

7. Machine's picture



Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 0



Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 1

Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 2





Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 3







Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction





8. Factory



Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 4Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 5

Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 6Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 7

Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 8Laundry Steam Press For Collar And Cuff Ironing 0.4-0.6MPa 380 Volt Italy Made Valve Different kind of fabric 9
