Product Details:
|
| Control: | LED PLC / Touch-sreen PLC | Press: | Vertical |
|---|---|---|---|
| Heat: | Steam | Drive: | Compressed Air / Cylinder |
| Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |
| Highlight: | 220V Trouser Pressing Machine,0.75KW Trouser Pressing Machine,750w clothes pressing machine |
||

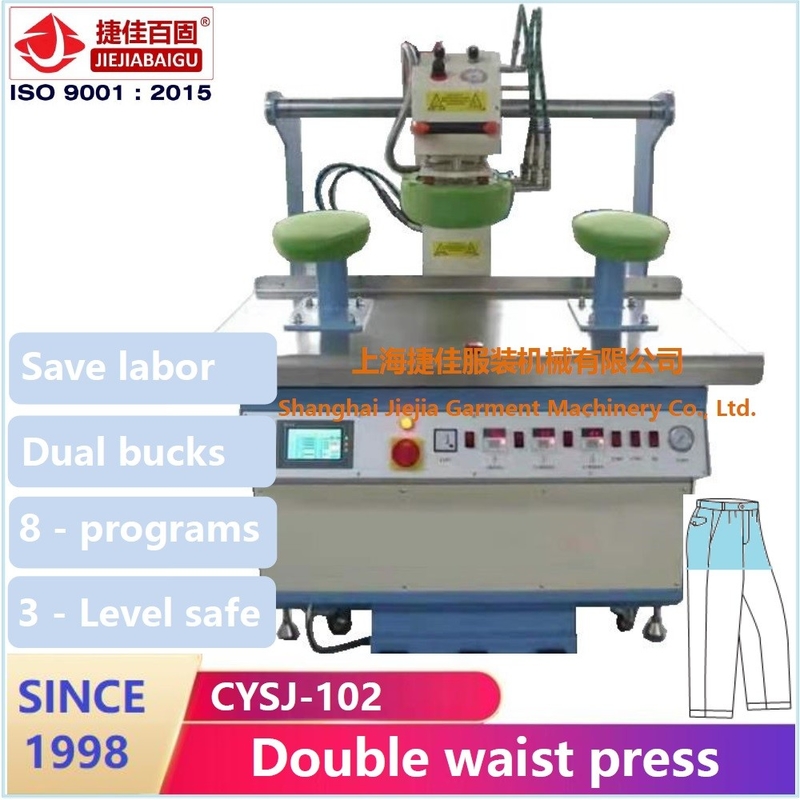

CYSJ-102 DOUBLE buck pant trousers final line Auto-PLC press machine waist Shanghai Jiejiabaigu
I. Introduction
Heating model of upper and lower mould steam
Driving mode of the mould Upper mould hand operated
Lower mould foot operated
Steam inlet size 1/2''
Steam working pressure (Mpa ) 0.4Mpa to 0.5Mpa
Steam consumption 320kg
Dimension 900x1200x1650mm
II. Automatic Pant press machine (seat seam)
| Model | CYSJ-102 |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | 200kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (40L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 1400x1200x1650mm |
| Net weight | 520kg |
III. Feature
TOP buck move left / right
Vertical press
Metal buck is suitable for garment
(customizable)
Automatic LED PLC / Touch-screen PLC
3 level safety protection device
Steam heating system
Top buck steam spray
Italy steam valve
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
IV. Full pant press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam | 900x1200x1300 |
| 2 | CZCJ-136 | 900x900x1650 | |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
