Product Details:
|
| Control: | LED PLC / Touch-sreen PLC /manual | Press: | Scissors Close Press |
|---|---|---|---|
| Heat: | Steam Chamber | Drive: | Compressed Air |
| Buck: | Universal Type | Steam Spray: | Italy Made Valve |
| Suction: | Build-in Suction Unit | Suitable For: | Dry Clean Press |
| High Light: | 0.6MPa industrial clothing press machine,Steam industrial clothing press machine,0.4MPa steam press machine for clothes |
||
Auto-PLC laundry press machine commercial laundry press machine Laundry press
1. Instructions of CZBJ-109:
CZBJ-109 is used to press any part of dry clean jacket blazer suit.
They are designed for different kind of fabric with unersal buck.
2. Machine perameter of CZBJ-109:
| Model | CZBJ-109 (Universal press) |
| Control | Automatic touch-screen PLC / LED PLC |
| Total pressure | 250kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ / 380V/3ph/50hz |
| Vacuum | 1.5kw / 0.75 build-in vacuum unit |
| Drained water | 1/2” |
| press type | dry press |
| Stem spray | Italy made valve |
| Dimension | 1200x1200x1300mm |
| Net weight | 370kg |
3. Machine's advantage
3.1 ) Scissors press: simple movement and more stability
3.2 ) Manual control / LED PLD / Touch-screen PLC with more function
3 level safety protection design
buck gap is able to set between 0-50mm in PLC
3.3 ) Advanced 180mm length shock absorber (long life use)
3.4 ) with different buck design and sizes
3.5 ) top buck and bottom buck with steam heating chamber
3.6 ) Top steam spray by Italy made valve (steam: dry & huge valume)
3.7 ) Steam spray: bottom
3.8 ) Vacuum: bottom
3.9 ) top buck with extra heating pipe
4. Machine's application
4.1 ) High class wool jacket blazer front suit final press
4.2 ) Dark color light fabric jacket blazer font suit final press
4.3 ) classical jacket blazer font suit final press
4.4 ) formal jacket blazer font suit final press

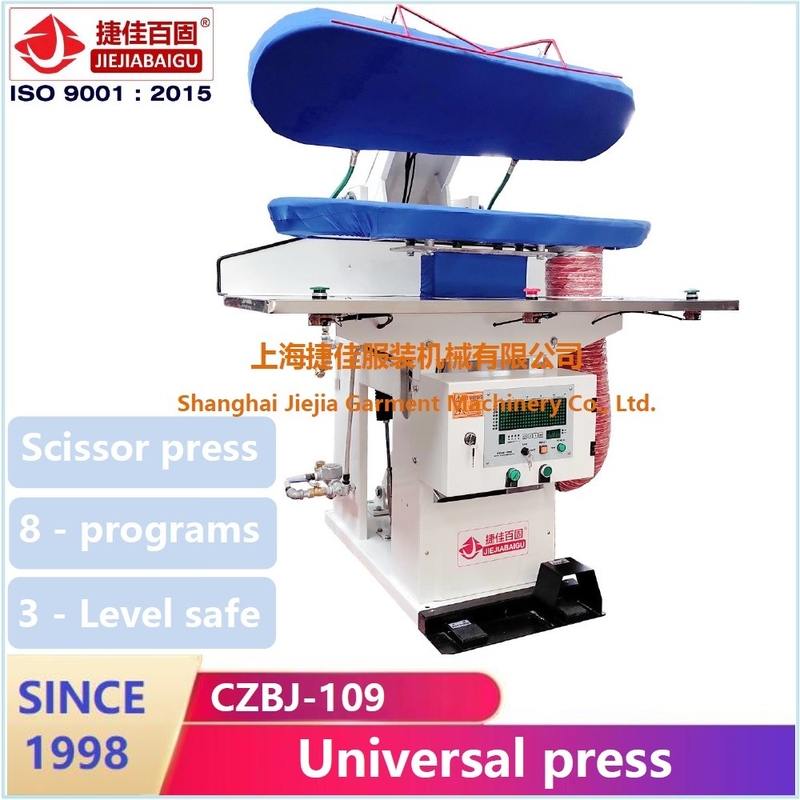

5. Machine's picture
6. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seam | 900x1200x1300 |
| 2 | CZCJ-136 | 900x900x1650 | |
| 3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seam | 1200x1200x1300 |
| 6 | CZBJ-102 | Topper | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure topper | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
| 9 | CZBJ-101 | Legger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press legger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
| 14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
