Product Details:
|
| Control: | LED PLC / Touch-sreen PLC Color 7inch | Press: | Vertical Press 750kg Max |
|---|---|---|---|
| Heat: | Steam Chamber Top & Bottom Both | Drive: | Compressed Air100mm Cylinder Auto |
| Buck: | Aluminium++ | Steam Spray: | Italy Made Valve Big Volume Vavle |
| Suction: | Vacuum Pipe System | Suitable For: | Dry Clean Press |
| Garment: | Suit Interline | Part: | Edege Lapel |
| Highlight: | ISO9001 Commercial Laundry Press,Manual Commercial Laundry Press,Suit automatic press machine for clothes |
||
Touch screen PLC Jacket blazer front vertical press machine equipment suit final press
Factory
The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.
1. Instructions:
1, With simple and reliable design, the pressure of the machine can be adjusted sleeplessly, and which is equipped with a programmable computer system to set the pressing time, suction time, etc. To meet the requirement of different kinds of fabrics.
2, The buck shape is with the smooth and durable surface, the shape is specially designed for suit lapel.

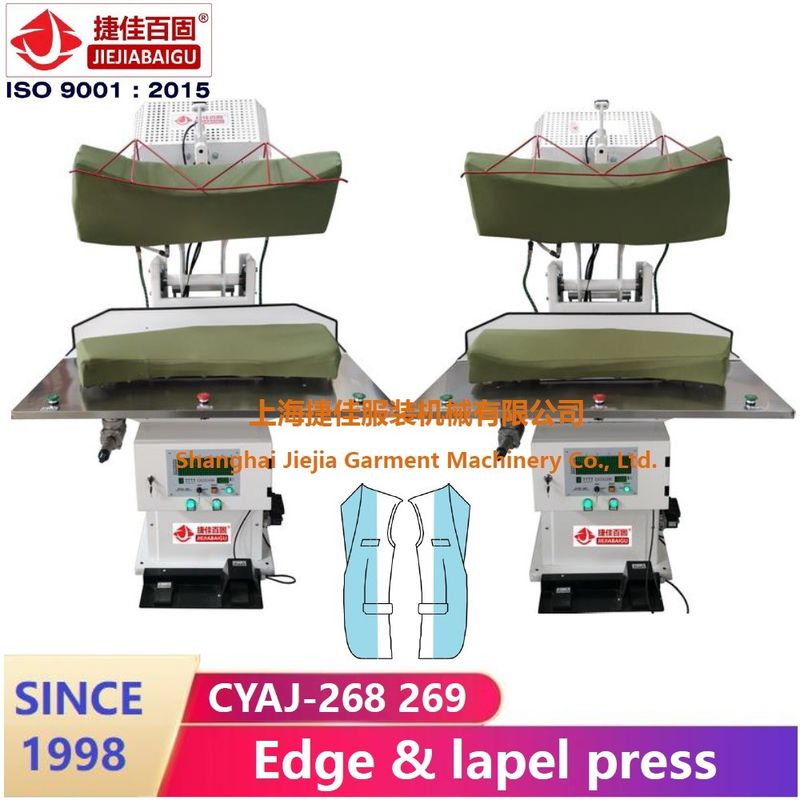

CYAJ-268 / CYAJ-269 is used to press jacket blazer suit edge of lapel in suit final press line.
They are designed for different kind of fabric with many different functions
2. Machine perameter:
| Model | CYAJ-268 left CYAJ-269 right |
| Control | Automatic LED PLC (8 programs) |
| Optional: touch-screen PLC (16 programs) | |
| Buck name | edge of lapel |
| Buck material | aluminium == |
| Total pressure | 750kg max p |
| Heat method | Steam chamber steam pipe |
| Steam spray | Top buck, bottom buck |
| Vacuum | Bottom buck, top buck |
| Standard: 2” vacuum pipe system | |
| Optional 1: 1.5kw 220V build-in vacuum pum | |
| Optional 2: 0.75kw 380V build-in vacuum pum | |
| Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
| Standard: 1/2” pipe | |
| Optional: build-in steam boiler 12kw 380V | |
| Spray by Japan design big volume steam | |
| Compress air | 0.4-0.6MPa (20L/min) |
| Standard: 8mm pipe | |
| Optional: build-in air compressor 1.5kw 220V | |
| Electric power |
220V/1ph/50hz, 0.1kw 380V/1PH/50hz, 0,85kw (with build-in vacuum pump) |
| Drained water | 1/2” |
| Dimension | 1200x1200x1650mm |
| Safety | 3 levels |
| Net weight | 470kg big |
| Package | Wooden case |
3. Machine's advantage
3.1 ) Vertically press: full surface move down at same time to make pressure equally
3.2 ) Touch-screen /PLC with more function
3 level safety protection /design
buck gap is able to set between /0-50mm in PLC
3.3 ) Advanced 180mm/ length shock absorber (long life use)
3.4 ) with location pilot/ laser light
3.5 ) top buck and bottom buck with /steam heating chamber
3.6 ) Top steam spray by Japan design /valve (steam: dry & huge valume) big steam volume
3.7 ) Steam spray: top + bottom
3.8 ) Vacuum: bottom + top
3.9 ) top buck with extra heating pipe
3.10 ) optional both both buck with steam
3.11) optional both buck with suction
4. Machine's application
4.1 ) High class wool jacket blazer edge lapel suit final press
4.2 ) Dark color light fabric jacket blazer font suit final press well
4.3 ) classical jacket blazer font suit final press good
4.4 ) formal jacket blazer font suit final press ok
5. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CXAJ--107 | Left front press | 1200x1200x1650 |
| 2 | CXAJ--108 | Right front press | 1200x1200x1650 |
| 3 | CXAJ--122 | Left back press | 1200x1200x1650 |
| 4 | CXAJ--123 | Right back press | 1200x1200x1650 |
| 5 | CXAJ--126 | Double l-apel press | 900x1200x1650 |
| 6 | CXEJ--116.117 | Double shoulde-r press | 1000x1000x2150 |
| 7 | CXGJ--547 | Collar master press | 1100x1100x2150 |
| 8 | CZBJ--104 | Sleeve- front press | 900x1200x1300 |
| 9 | CZBJ--105 | Sleeve elbow press | 900x1200x1300 |
| 10 | CZBJ--114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ--114-14 | Sleeve blocking | 900x1200x1300 |
7. Company profile:
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
8. Q&A
8.1 —How could I get more information?
please contact with E-mail =and telephone
8.2 —Do you have another =type of machine ?
Yes. we have 3 different levels =of machine for your reference
8.3 —Do you have any =customer factory to see?
Yes. please contect with =us to find close one for you.
8.4 —Do you have =machine video?
Yes. please contact= with us.
8.5 —Are you= factory?
Yes. We have manufactured= for over 20 years.
8.6 —Could I customize= machine or buck
Yes. We could make =machine according to your requirement.
5. Machine's picture
