Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric

Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric
Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric

Large Image :  Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric

Description
Control: LED PLC Controller/ Touch-sreen PLC 7" Press: Scissors Close Vertical Press High Side Press
Heat: Steam Chamber Pipe System 150 Drive: Compressed Air 100 Cylinder
Buck: 1 Top + 1 Side Steam Spray: Italy Made Valve
Suction: Bottom + Side Suitable For: Dress Suit Jacket
High Light:

0.75KW commercial steam press for clothes

,

Automatic commercial steam press for clothes

,

commercial cloth press automatic machine

Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric



I. Factory

The JIEJIA GARMENG FACTORY established a production base in Shanghai in 1998, with more than 24 years of clothing ironing equipment design, research and development, production experience

Machinery are all in China, in Southeast Asia, Europe, America, Africa and other countries

JIEJIA has passed is090001-2015 quality system certification.

There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers 4 - jeans / denim ironing machine.



1. Instructions:



1, With simple and reliable design, the pressure of the machine can be adjusted sleeplessly, and which is equipped with a programmable computer system to set the pressing time, suction time, etc. To meet the requirement of different kinds of fabrics.
2, The buck shape is with the smooth and durable surface, the shape is specially designed for suit edg of lapel.





CYAJ-368 / CYAJ-369 is used to press jacket blazer suit Edge lapel in suit final press line.

They are designed for different kind of fabric with many different functions



2. Machine perameter:

Model CYAJ-368 / CYAJ-369 edge of lapel
Control Automatic touch-screen PLC
Total pressure 750kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 1.5kw extra vacuum pump 2”
Drained water 1/2”
Buck gap 0-50mm set in PLC
Location pilot Laser light *2
Dimension 900x1200x1650mm
Net weight 420kg



3. Machine's advantage

3.1 ) Vertically press: full surface move down at same time to make pressure equally

3.2 ) Touch-screen PLC with more-- function

3 level safety protection --design
buck gap is able to set between 0-50mm-- in PLC

3.3 ) Advanced 180mm length shock --absorber (long life use)

3.4 ) with location pilot --laser light

3.5 ) top buck and bottom-- buck with steam heating chamber

3.6 ) Top steam spray by Japan design --valve (steam: dry & huge valume)

3.7 ) Steam spray: top + bottom

3.8 ) Vacuum: bottom + top

3.9 ) top buck with extra heating--- pipe



4. Machine's application

4.1 ) High class wool jacket blazer front suit final press

4.2 ) Dark color light fabric jacket blazer font suit final press

4.3 ) classical jacket blazer font suit final press

4.4 ) formal jacket blazer font suit final press







5. Full final suit press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CXAJ-107 Left front press 1200x1200x1650
2 CXAJ-108 Right front press 1200x1200x1650
3 CXAJ-122 Left back press machine 1200x1200x1650
4 CXAJ-123 Right back press machine 1200x1200x1650
5 CXAJ-126 Double lapel machine 900x1200x1650
6 CXEJ-116.117 Double shoulder machine 1000x1000x2150
7 CXGJ-547 Collar master machine 1100x1100x2150
8 CZBJ-104 Sleeve front machine 900x1200x1300
9 CZBJ-105 Sleeve elbow 900x1200x1300
10 CZBJ-114 Sleeve arm-hole 900x1200x1300
11 CABJ-114-14 Sleeve blocking 900x1200x1300




6. Company profile:



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.





8. Q&A

8.1 —How could I get more information?
please contact with E-mail and telephone

8.2 —Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

8.3 —Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

8.4 —Do you have machine video?

Yes. please contact with us.

8.5 —Are you factory?

Yes. We have manufactured for over 20 years.

8.6 —Could I customize machine or buck

Yes. We could make machine according to your requirement.





Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 0

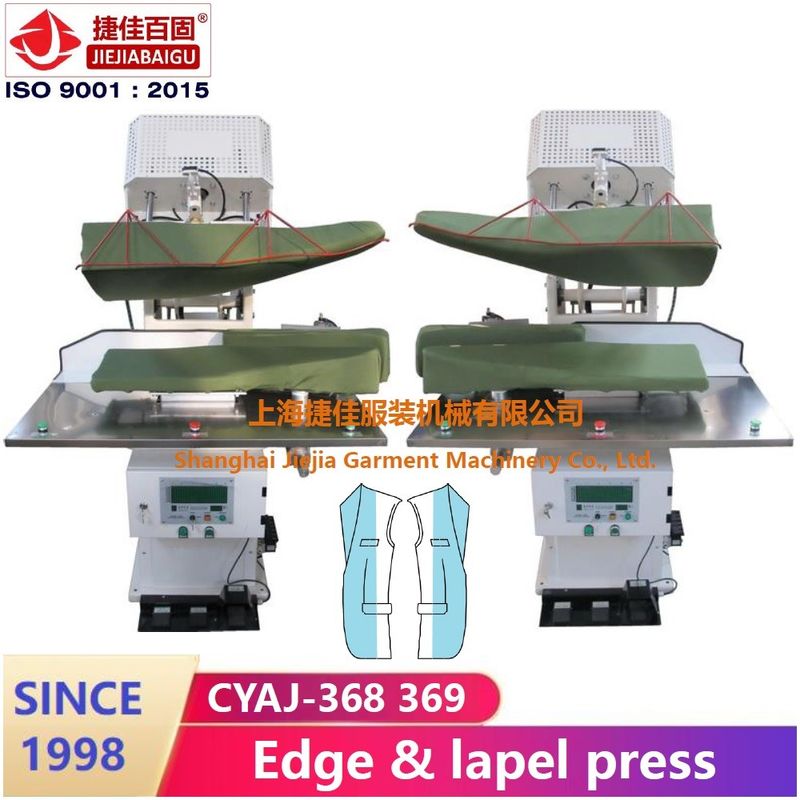

5. Machine's picture



Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 1





Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 2








Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 3







9. factory

Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 4Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 5

Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 6Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 7

Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 8Automatic suit ironing machine edge of lapel Commercial Steam Press For Clothes different kind of fabric 9
