Product Details:
Place of Origin: Shanghai China
Certification: ISO9001:2015
Model Number: CZBJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

ISO9001 Commercial Laundry Press

Control: LED PLC / Touch-sreen PLC /manual Press: Scissors Close Press
Heat: Steam Chamber Drive: Compressed Air
Buck: Universal Type Steam Spray: Italy Made Valve
Suction: Build-in Suction Unit Suitable For: Dry Clean Press
High Light:

ISO9001 Commercial Laundry Press


0.6MPa Commercial Laundry Press


0.4MPa commercial ironing press

Auto-PLC laundry press machine commercial laundry press machine Laundry press


1. Instructions of CZBJ-109:

CZBJ-109 is used to press any part of dry clean jacket blazer suit.

They are designed for different kind of fabric with unersal buck.


2. Machine perameter of CZBJ-109:

Model CZBJ-109 (Universal press)
Control Automatic touch-screen PLC / LED PLC
Total pressure 250kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ / 380V/3ph/50hz
Vacuum 1.5kw / 0.75 build-in vacuum unit
Drained water 1/2”
press type dry press
Stem spray Italy made valve
Dimension 1200x1200x1300mm
Net weight 370kg


3. Machine's advantage

3.1 ) Scissors press: simple movement and more stability

3.2 ) Manual control / LED PLD / Touch-screen PLC with more function

3 level safety protection design
buck gap is able to set between 0-50mm in PLC

3.3 ) Advanced 180mm length shock absorber (long life use)

3.4 ) with different buck design and sizes

3.5 ) top buck and bottom buck with steam heating chamber

3.6 ) Top steam spray by Italy made valve (steam: dry & huge valume)

3.7 ) Steam spray: bottom

3.8 ) Vacuum: bottom

3.9 ) top buck with extra heating pipe


4. Machine's application

4.1 ) High class wool jacket blazer front suit final press

4.2 ) Dark color light fabric jacket blazer font suit final press

4.3 ) classical jacket blazer font suit final press

4.4 ) formal jacket blazer font suit final press

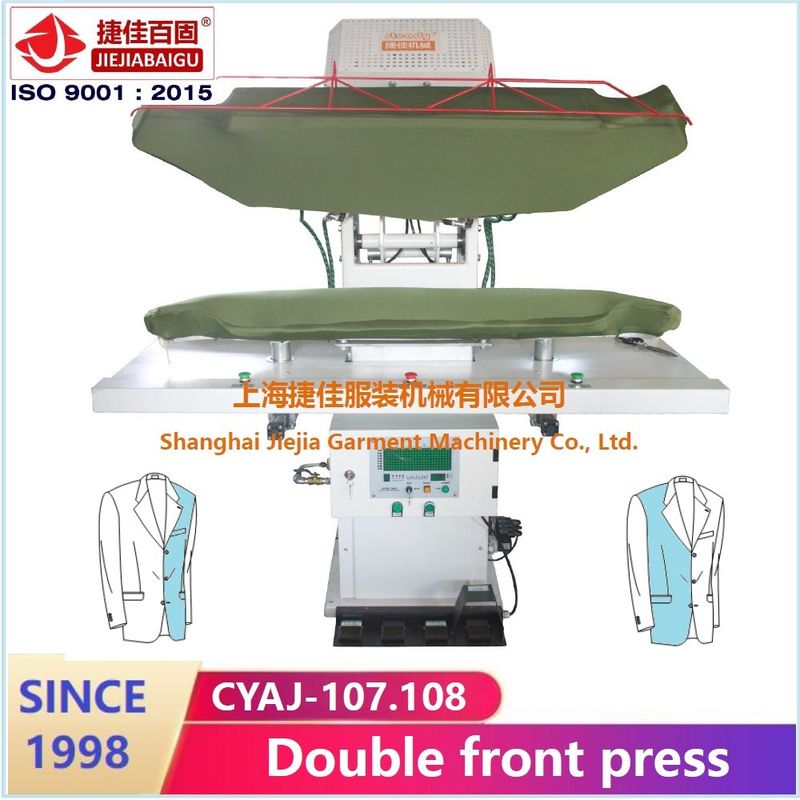

5. Machine's picture


ISO9001 Commercial Laundry Press 0ISO9001 Commercial Laundry Press 1ISO9001 Commercial Laundry Press 2ISO9001 Commercial Laundry Press 3



6. Full final suit press machine


NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-137 Seat seam 900x1200x1300
2 CZCJ-136 Pocket 900x900x1650
3 CZAJ-666 Legger stretch 1200x1200x1350
4 CZAJ-119 High pressure side seam 1200x1200x1350
5 CZBJ-119 Side seam 1200x1200x1300
6 CZBJ-102 Topper 900x1200x1300
7 CZAJ-102 High pressure topper 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topper 900x1200x1350
9 CZBJ-101 Legger 1200x1200x1300
10 CZAJ-101 High pressure legger 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure legger 1200x1200x1350
12 CYAJ-101 Vertical press legger 1200x1200x1650
13 CYAJ-101S Vertical press double legger 3000x1600x1650
14 VTH-288A Pant blowing machine / dummy 500x1200x2000



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:


  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery


Any customer could find his satisfied machinery and acceptable price for economical class or high class.


Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
