Product Details:
|
| Control: | Touch-sreen PLC | Press: | Vertical |
|---|---|---|---|
| Heat: | Steam | Drive: | Compressed Air / Cylinder |
| Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |
| High Light: | 1.5KW industrial clothing press machine,vertical industrial clothing press machine,industrial machine press clothes |
||

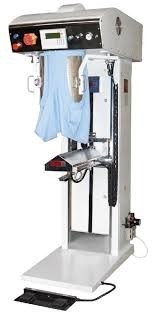

Touch screen suit dress press machine equipment vertical press lapel Shanghai Jiejiabaigu
I. Introduction
1, Available to press any special parts of cloth.
2, With strong vacuum moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...
II. Automatic suit jacket press machine (double lapel)
| Model | CXAJ-126 |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 900x1200x1650mm |
| Net weight | 420kg |
III. Feature
Scissors-type close & vertical press
(All buck surface press at same time)
Metal buck is suitable for garment
(customizable)
Automatic Touch-screen PLC
- bucks gap is adjustable in PLC
- pressure is adjustable in PLC
- steam spray optional: top, bottom or both
- vacuum optional: top, bottom or both
3 level safety protection device
(easy to check faulty)
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray + vacuum
(steam chamber supply much volume)
Bottom buck has vacuum + steam spray
Famous pneumatic parts
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CXAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CXAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CXAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CXAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CXAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CXEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CXGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
