Product Details:
|
Control: | Touch-sreen PLC | Press: | Dual Cylinder |
---|---|---|---|
Heat: | Steam | Drive: | Compressed Air / Cylinder |
Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |
Buck: | Side Seam | Work Method: | Heavy Duty |
Highlight: | 220V Steam Pant Press Machine,Side Seam Air Automatic Pants Presser,Side Trouser Steam Press |
Touch screen suit dress press machine equipment vertical press lapel Shanghai Jiejiabaigu
I. Factory information
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic suit jacket press machine (double lapel)
Model | CZAJ-119 |
Control | Automatic touch-screen PLC |
Total pressure | 1600kg |
Steam | 0.4-0.6MPa (18kg/h) 1/2” |
Compress air | 0.4-0.6MPa (15L/min) 8mm |
Electric power | 220V/1ph/50HZ |
Vacuum | 0.75kw extra vacuum pump 2” |
Drained water | 1/2” |
Dimension | 1200x1200x1350mm |
Net weight | 420kg |
III. Feature
Scissors-type close & supper strong press
pressure: 1600-2600kg
Metal buck is suitable for garment
(customizable)

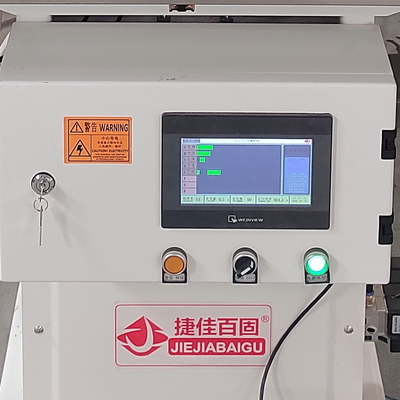

Automatic Touch-screen PLC
- bucks gap is adjustable in PLC
- pressure is adjustable in PLC
- steam spray optional: top, bottom or both
- vacuum optional: top, bottom or both
3 level safety protection device
(easy to check faulty)
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray + vacuum
(steam chamber supply much volume)
Bottom buck has vacuum + steam spray
Famous pneumatic parts
IV. Full pant trousers press machine
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed different product:
NO. | Model | Description of machine | Dimension: L x W x H mm |
1 | CZBJ-136 | Pocket press | 900x1200x1300 |
2 | CZBJ-137 | Seat seam press | 900x1200x1300 |
3 | CZAJ-666 | Legger stretch press | 1200x1200x1350 |

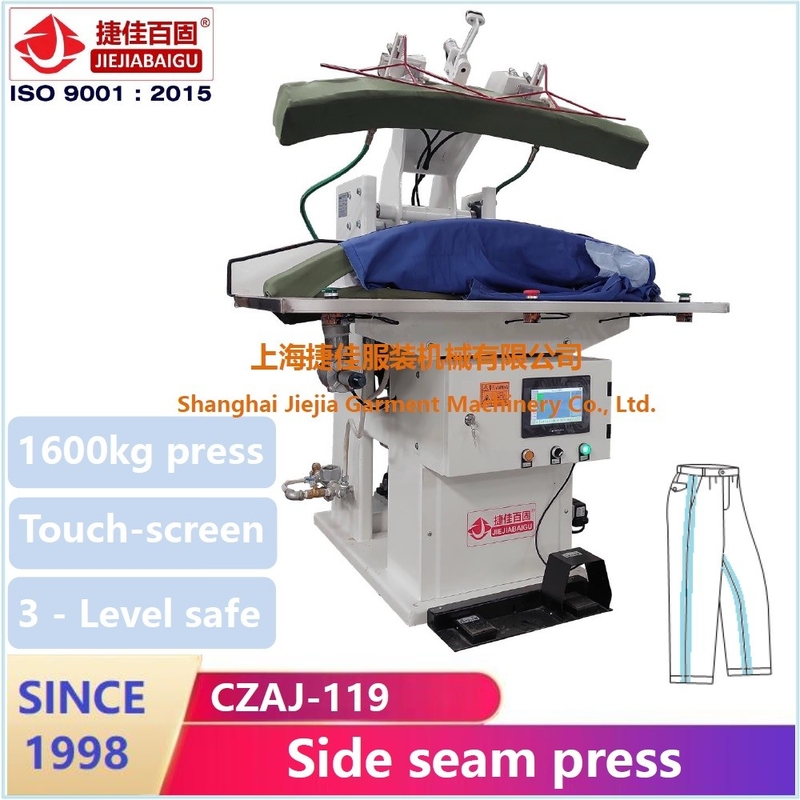

4 | CZBJ-119 | Side seam press | 1200x1200x1300 |
CZAJ-119 | --Dual cylinder | 1200x1200x1300 | |
5 | CZBJ-102 | Waist press | 900x1200x1300 |
CZAJ-102 | --Dual cylinder | 900x1200x1350 | |
CZAJ-102R | --Dual cylinder & electric heat | 900x1200x1350 | |
6 | CZBJ-101 | Legger press | 1200x1200x1300 |
7 | CZAJ-101 | --Dual cylinder | 1200x1200x1350 |
8 | CZAJ-101R | --Dual cylinder & electric heat | 1200x1200x1350 |
9 | CYAJ-101 | --vertical press | 1200x1200x1650 |
10 | CYAJ-101S | Double legger press | 3000x1600x1350 |
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
