Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump

Description
Control: LED PLC Or 7" Touch-sreen PLC Controller Press: 1,600kg Press
Heat: Steam Or Electric Drive: Compress Air / Cylinders
Electric Power: 220V/1ph/50HZ Or 380V Certification: ISO9001:2015
Buck: Waist Buck Ma: Aluminium
Steam: Big Volume Spray Vacuum: 2" Pipe System Supply
High Light:

Automatic Garment Ironing Machine

,

Industrial Garment Ironing Machine

,

25l/Min Garment Pressing Machine



CZAJ pant trousers sewing line Auto-PLC press machine legger press Shanghai Jiejiabaigu



This steam press is perfect machine forr hotels, classic laundry shop, health care center to do ironing job of clothes
This steam press is used for shaped-fixed and ironing processing for suits, the trousers' legs and rousers which made of woool, synthetic fibric, it is easy in maintance and adaptable to medium and small-size garment manufactures.
Both the top mold and bottom mold is vacuum and heated by steam.
The machine can be operated manually or automatic that the air operated automatic steam press.



I. Factory

The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, experience

Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries

Our company has passed is090001-2015 quality system certification.







II. Automatic Pant press machine



Model CZAJ-101

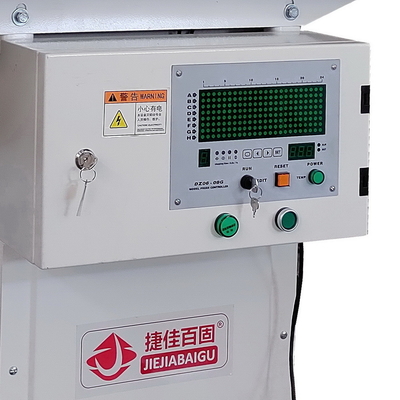

Control Automatic LED PLC (8 programs)

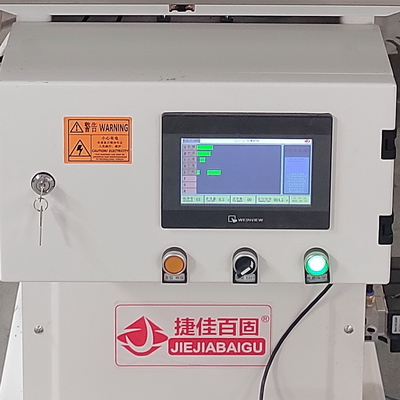

  Optional: touch-screen PLC (16 programs)
Buck name
Buck material
Total pressure 2,600kg
Heat method Steam chamber
  Optional electric heating
Steam spray Top buck, bottom buck, or both
Vacuum Bottom buck, top buck, or both
  Standard: 2” vacuum pipe system
  Optional 1: 1.5kw 220V build-in vacuum pump
  Optional 2: 0.75kw 380V build-in vacuum pump
Steam 0.4-0.6MPa (18kg/h) / (15kg/h)
  Standard: 1/2” pipe
  Optional: build-in steam boiler 12kw 380V
  Spray by Japan design big volume steam
Compress air 0.4-0.6MPa (15L/min)
  Standard: 8mm pipe
  Optional: build-in air compressor 1.5kw 220V
Electric power

220V/1ph/50hz, 0.1kw

220V/1ph/50hz, 1.6kw (with build-in vacuum pump)

380V/1PH/50hz, 0,85kw (with build-in vacuum pump)

Drained water 1/2”
Dimension 1200x1200x1350mm
Safety 3 levels
Net weight 470kg / 420kg
Package Wooden case



III. Feature

3.1 Scissors-type close & level press

High pressure 2,600kg / 1,600kg

3.2 Metal buck is suitable for garment

(customizable)

3.3 Automatic LED controller (8 programs)

(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)

3.4 (3) level safety protection device

3.5 Input & output signal

(easy to check faulty)

3,6 180mm length shock absorber (long life)

Optional air shock absorber system

3.7 Stainless steel board

Optional painted metal board

3.8 Steam heating system (top + bottom)

3.9 Top buck steam spray

(steam chamber supply much volume)

3.10 Bottom buck has vacuum

3.11 Famous pneumatic parts





IV. Full pant press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-137 Seat seam 900x1200x1300
2 CZCJ-136 Pocket 900x900x1650
3 CZAJ-666 Legger stretch 1200x1200x1350
4 CZAJ-119 High pressure side seam 1200x1200x1350
5 CZBJ-119 Side seam 1200x1200x1300
6 CZBJ-102 Topper 900x1200x1300
7 CZAJ-102 High pressure topper 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topper 900x1200x1350
9 CZBJ-101 Legger 1200x1200x1300
10 CZAJ-101 High pressure legger 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure legger 1200x1200x1350
12 CYAJ-101 Vertical press legger 1200x1200x1650
13 CYAJ-101S Vertical press double legger 3000x1600x1650




V. Q & A

1.Q How could I get more information
A Please contact with our E-mail or local agent also.
2.Q Do you have another type of machine?
A Yes. We have 3 different levels of machine for your reference
3.Q Do you have any customer factory to see?
A Yes. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Yes. Please contact with us.
5.Q Are you factory?
A Yes. We started to manufacture on 1995
6.Q Our garment is export to different countries. Do you have suitable buck?
A Yes. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Yes. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Yes. We have all.
9.Q Could you supply OEM product?
A Yes. We are supplying OEM machine for Italy, English, American customer.
10.Q Could you supply with demo machine?
A We could supply with demo machine with some cost.





Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 0
Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 1Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 2




Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 3

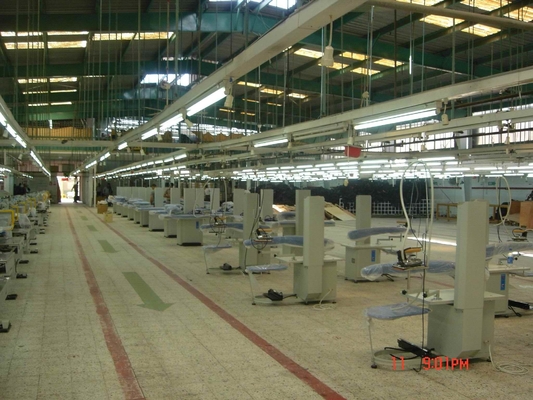

Factory
Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 4  Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 5
Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 6  Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 7
Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 8  Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 9

Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 10  Automatic Industrial Garment Ironing Machine Steam Pressing For Legger vacuum pump 11


IV. Full pant press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-137 Seat seam 900x1200x1300
2 CZCJ-136 Pocket 900x900x1650
3 CZAJ-666 Legger stretch 1200x1200x1350
4 CZAJ-119 High pressure side seam 1200x1200x1350
5 CZBJ-119 Side seam 1200x1200x1300
6 CZBJ-102 Topper 900x1200x1300
7 CZAJ-102 High pressure topper 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topper 900x1200x1350
9 CZBJ-101 Legger 1200x1200x1300
10 CZAJ-101 High pressure legger 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure legger 1200x1200x1350
12 CYAJ-101 Vertical press legger 1200x1200x1650
13 CYAJ-101S Vertical press double legger 3000x1600x1650
14 VTH-288A Pant blowing machine / dummy 500x1200x2000
