0.6MPa Steam Automatic Garment Ironing Equipment For Pant Side

Product Details

Place of Origin: Shanghai China

Brand Name: JIEJIABAIGU

Certification: ISO9001:2015

Model Number: CZAJ-119

Payment & Shipping Terms

Minimum Order Quantity: 2 SETS

Price: price is negotiable

Packaging Details: wooden case

Delivery Time: 7-15 works day

Supply Ability: 20 units per month

Get Best Price
Contact Now
Specifications
Highlight:

Side Pants Steam Press Machine

,

0.6MPa Garment Ironing Equipment

,

Automatic Garment Ironing Equipment

Control:
Touch-sreen PLC
Press:
Dual Cylinder
Heat:
Steam
Drive:
Compressed Air / Cylinder
Electric Power:
220V/1ph/50HZ
Certification:
ISO9001:2015
Buck:
Side Seam
Work Method:
Heavy Duty
Control:
Touch-sreen PLC
Press:
Dual Cylinder
Heat:
Steam
Drive:
Compressed Air / Cylinder
Electric Power:
220V/1ph/50HZ
Certification:
ISO9001:2015
Buck:
Side Seam
Work Method:
Heavy Duty
Description

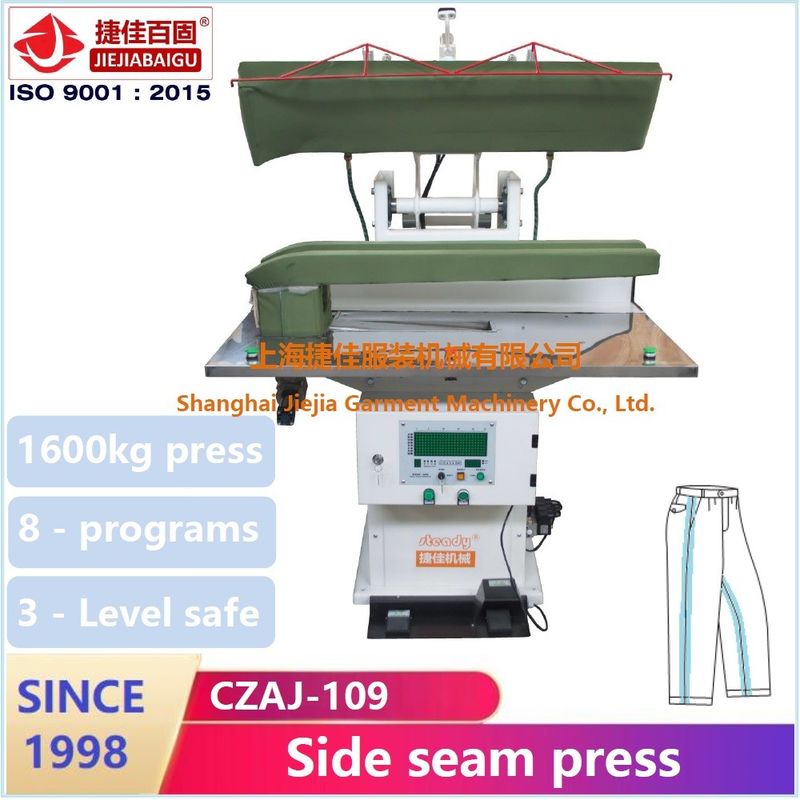

0.6MPa Steam Automatic Garment Ironing Equipment For Pant Side

Touch screen suit dress press machine equipment vertical press lapel Shanghai Jiejiabaigu



I. Factory information
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time


II. Automatic suit jacket press machine (double lapel)

ModelCZAJ-119
ControlAutomatic touch-screen PLC
Total pressure1600kg
Steam0.4-0.6MPa (18kg/h) 1/2”
Compress air0.4-0.6MPa (15L/min) 8mm
Electric power220V/1ph/50HZ
Vacuum0.75kw extra vacuum pump 2”
Drained water1/2”
Dimension1200x1200x1350mm
Net weight420kg


0.6MPa Steam Automatic Garment Ironing Equipment For Pant Side 0


III. Feature

Scissors-type close & supper strong press

pressure: 1600-2600kg

Metal buck is suitable for garment

(customizable)

Automatic Touch-screen PLC

- bucks gap is adjustable in PLC

- pressure is adjustable in PLC

- steam spray optional: top, bottom or both

- vacuum optional: top, bottom or both

3 level safety protection device

(easy to check faulty)

180mm length shock absorber (long life)

Steam heating system

Top buck steam spray + vacuum

(steam chamber supply much volume)

Bottom buck has vacuum + steam spray

Famous pneumatic parts



0.6MPa Steam Automatic Garment Ironing Equipment For Pant Side 1



IV. Full pant trousers press machine




Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed different product:



NO.ModelDescription of machineDimension: L x W x H mm
1CZBJ-136Pocket press900x1200x1300
2CZBJ-137Seat seam press900x1200x1300
3CZAJ-666Legger stretch press1200x1200x1350
4CZBJ-119Side seam press1200x1200x1300
 CZAJ-119--Dual cylinder1200x1200x1300
5CZBJ-102Waist press900x1200x1300
 CZAJ-102--Dual cylinder900x1200x1350
 CZAJ-102R--Dual cylinder & electric heat900x1200x1350
6CZBJ-101Legger press1200x1200x1300
7CZAJ-101--Dual cylinder1200x1200x1350
8CZAJ-101R--Dual cylinder & electric heat1200x1200x1350
9CYAJ-101--vertical press1200x1200x1650
10CYAJ-101SDouble legger press3000x1600x1350



0.6MPa Steam Automatic Garment Ironing Equipment For Pant Side 2



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1.QHow could I get more information
APlease contact with our E-mail or local agent.
2.QDo you have another type of machine?
ASure. We have 3 different levels of machine for your reference
3.QDo you have any customer factory to see?
ASure. Please contact with us to find close one for you.
4.QDo you have machine video?
ASure. Please contact with us.
5.QAre you factory?
ASure. We started to manufacture on 1995
6.QOur garment is export to different countries. Do you have suitable buck?
ASure. We have different types of buck series for your reference.
7.QOur factory production is not much, could I have some suggestion?
ASure. We have double buck machine for small production factory.
8.QDo you have English manual and installation instruction?
ASure s. We have all.
9.QCould you supply OEM product?
ASure. We are supplying OEM machine for Italy, English, American customer.
10.QCould you supply with demo machine?
 We could supply with demo machine with some cost.



=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
