Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control

Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control
Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control
Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control

Large Image :  Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control

Description
Control: LED PLC / Touch-sreen PLC Press: 3.5 Time Level Press
Heat: Steam / Electric Drive: Compressed Air / Cylinder
Electric Power: 220V/1ph/50HZ Certification: ISO9001:2015
High Light:

Double Waist Trouser Steam Press

,

Trouser Steam Pressing Machine

,

PLC Industrial Steam Pressing Machine

CZAJ pant trousers sewing line Auto-PLC press machine waist press Shanghai Jiejiabaigu



This steam press is perfect machine forr hotels, classic laundry shop, health care center to do ironing job of clothes
This steam press is used for shaped-fixed and ironing processing for suits, the trousers' legs and rousers which made of woool, synthetic fibric, it is easy in maintance and adaptable to medium and small-size garment manufactures.
Both the top mold and bottom mold is vacuum and heated by steam.
The machine can be operated manually or automatic that the air operated automatic steam press.



I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time


II. Automatic Pant press machine

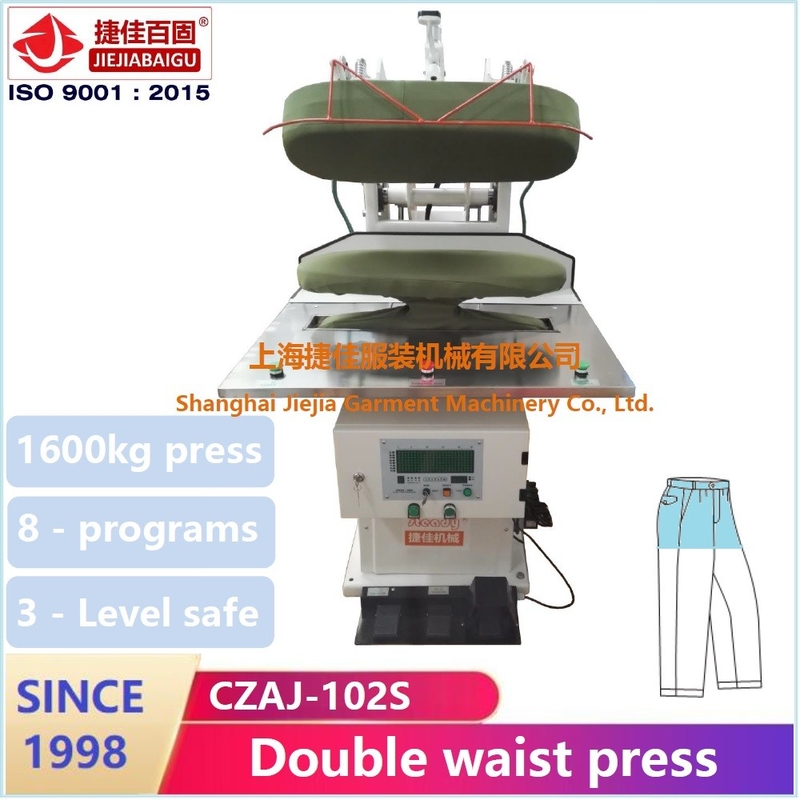

ModelCZAJ-102S double waist topper
ControlAutomatic LED PLC / touch-screen PLC
Total pressure1,600kg
Steam0.4-0.6MPa (18kg/h) 1/2”
Compress air0.4-0.6MPa (25L/min) 8mm
Electric power220V/1ph/50HZ
Vacuum0.75kw extra vacuum pump 2” / build-in vacuum unit
Drained water1/2”
Dimension900x1200x1650mm
Net weight420kg


Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 0
Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 1Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 2


III. Feature

Scissors-type close & press

Metal buck is suitable for garment

(customizable)

Supper high pressure upto 2,600kg

Automatic LED  PLC / Touch-screen PLC

3 level safety protection device

180mm length shock absorber (long life)

Steam heating system

Top buck steam spray

High volume Japan type steam valve

(steam chamber supply much volume)

Bottom buck has vacuum

Famous pneumatic parts





IV. Full pant press machine



NO.ModelDescription of machineDimension: L x W x H mm
1CZBJ-137Seat seam900x1200x1300
2CZCJ-136Pocket900x900x1650
3CZAJ-666Legger stretch1200x1200x1350
4CZAJ-119High pressure side seam1200x1200x1350
5CZBJ-119Side seam1200x1200x1300
6CZBJ-102Topper900x1200x1300
7CZAJ-102High pressure topper900x1200x1350
8CZAJ-102RElectric-heat high pressure topper900x1200x1350
9CZBJ-101Legger1200x1200x1300
10CZAJ-101High pressure legger1200x1200x1350
11CZAJ-101RElectric-heat high pressure legger1200x1200x1350
12CYAJ-101Vertical press legger1200x1200x1650
13CYAJ-101SVertical press double legger3000x1600x1650
14VTH-288APant blowing machine / dummy500x1200x2000



Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 3

Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction


Factory
Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 4  Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 5
Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 6  Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 7
Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 8  Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 9

Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 10  Double Waist Press Trouser Steam Pressing Machine Industrial Ironing PLC Control 11
