Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Compressed Air PLC Garment Jacket suit Pressing Machine With Steam Heating System blazer suit

Description
Control: Touch-sreen PLC Press: Vertical
Heat: Steam Drive: Compressed Air / Cylinder
Electric Power: 220V/1ph/50HZ Certification: ISO9001:2015
High Light:

1ph Jacket Pressing Machine

,

Compressed Air Suit Press Machine 1ph

,

PLC Jacket Pressing Machine

Compressed Air PLC Garment Jacket suit Pressing Machine With Steam Heating System blazer suit



I. Factory

The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience



Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries





There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - jacket ironing machine 2 - shirt ironing machine 3 - pant ironing machine.



Model CPJ CYAJ
Driving mode Manual Automatic cylinder
Heating model of upper and lower mould Steam Steam
Driving mode of the mould Upper mould hand operated
Lower mould foot operated

Upper mould and lower mould automatic move
Steam working pressure (Mpa ) 0.4Mpa to 0.6Mpa 0.4Mpa to 0.Mpa
Steam consumption 18kg/h 18kg/hour
Dimension 1200mm*1200mm*1350mm 1200mm*1200mm*1650mm



I. Factory



Full range of garment ironing equipment

Reliable equipment quality

Delivery in time

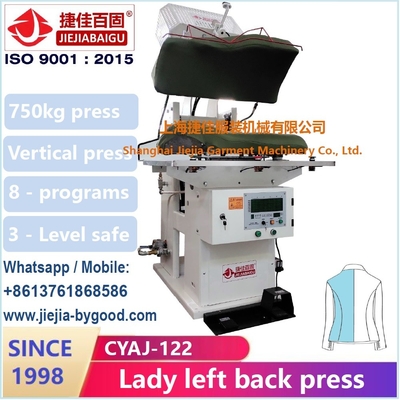

II. Automatic suit jacket press machine (Lady left back press)

Model CYAJ-122

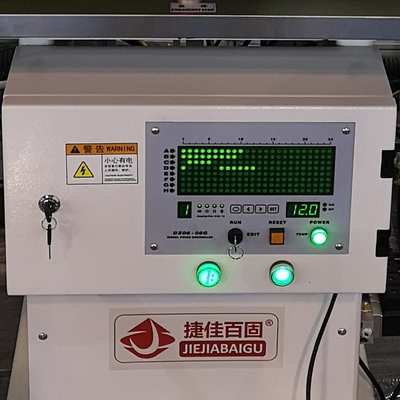

Control Automatic LED PLC (8 programs)

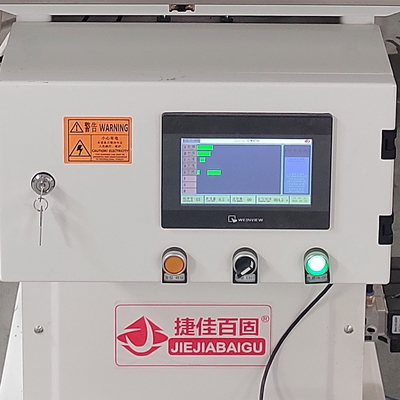

  Optional: touch-screen PLC (16 programs)
Buck name left back body
Buck material Aluminiu aa
Total pressure 100 ...750kg
Heat method Steam chamber and pipe system
Steam spray Top buck, bottom buck, or both heat
Vacuum Bottom buck, top buck, or both vacuum
  Standard: 2” vacuum pipe system
  Optional 1: 1.5kw 220V build-in pump
  Optional 2: 0.75kw 380V build-in pump
Steam 0.4-0.6MPa (18kg/h) / (15kg/h)
  Standard: 1/2” pipe
  Optional: build-in steam boiler 12kw 380V
  Spray by Japan design steam vavle
Compress air 0.4-0.6MPa (20L/min)
  Standard: 8mm pipe system
  Optional: build-in air compressor 1.5kw 220V
Electric power

220V/1ph/50hz, 0.1kw

220V/1ph/50hz, 1.6kw (with build-in pump)

380V/1PH/50hz, 0,85kw (with build-in pump)

Drained water 1/2” pipe
Dimension 1200x1200x1650mm
Safety 3 levels
Net weight 470kg up
Package Wooden case





II. Feature

3.1 Scissors-type close & vertical press well

(All buck surface press at same time)

3.2 Aluminiu buck is suitable for garment

(customizable or standar)

3.3 Automatic LED controller (8 programs)

(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs to save)

3.4 (3) level safety protection device

3.5 Input & output signal

(easy to check faulty if necessary)

3,6 180mm length shock absorber (long life)

Optional air shock absorber system

3.7 Stainless steel board

Optional painted metal board

3.8 Steam heating system (top + bottom)

3.9 Top buck steam spray

(steam chamber supply much volume)

3.10 Bottom buck has vacuum

3.11 Famous pneumatic parts





IV. Full final suit press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CYAJ-107 Left front press 1200x1200x1650
2 CYAJ-108 Right front press 1200x1200x1650
3 CYAJ-122 Left back press 1200x1200x1650
4 CYAJ-123 Right back press 1200x1200x1650
5 CYAJ-126 Double lapel press 900x1200x1650
6 CYEJ-116.117 Double shoulder press 1000x1000x2150
7 CYGJ-547 Collar master press 1100x1100x2150
8 CZBJ-104 Sleeve front press 900x1200x1300
9 CZBJ-105 Sleeve elbow 900x1200x1300
10 CZBJ-114 Sleeve arm-hole 900x1200x1300
11 CABJ-114-14 Sleeve blocking press 900x1200x1300




Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery all solution
  2. Suits pressing machinery series
  3. trousers machinery series
  4. Shirt machinery series
  5. Jeans denim machinery series
  6. Knitting / sweater machinery series



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1.Q How could I get more information
A Please contact with our E-mail or local agent.
2.Q Do you have another type of machine?
A Yes. We have 3 different levels of machine for your reference
3.Q Do you have any customer factory to see?
A Yes. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Yes. Please contact with us.
5.Q Are you factory?
A Yes. We started to manufacture on 1995
6.Q Our garment is export to different countries. Do you have suitable buck?
A Yes. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Yes. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Yes. We have all.
9.Q Could you supply OEM product?
A Yes. We are supplying OEM machine for Italy, English, American customer.
10.Q Could you supply with demo machine?
A We could supply with demo machine with some cost.





=========================================
