Product Details:
|
Buck Move: | Cylinder | Press: | Vertical Supper High Pressure |
---|---|---|---|
Heat: | Steam Chamber | Cool: | Suction |
Vacuum: | Vaccum Pump Pipe System | Buck Material: | Aluminium |
Safety: | 3 Level Design | Buck Number: | 3 Bucks |
Highlight: | Waist Pants Steam Press Machine,Seam Sealing Automatic Pants Presser,Pant Press Machine With Clamp Stretch |

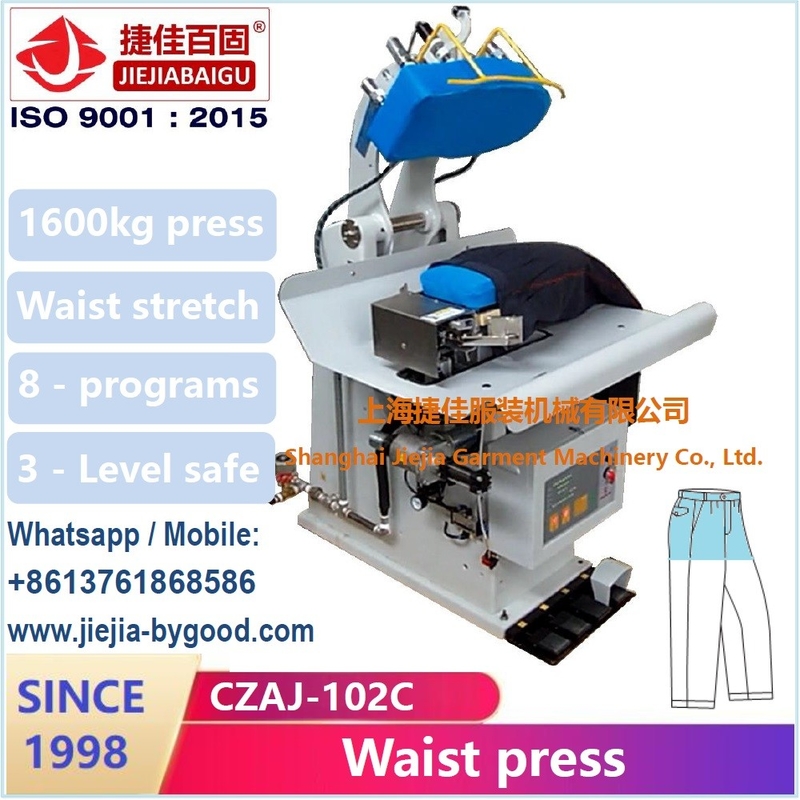

Trousers pant waist topper Press Machine for wrinkle free seam sealing steam heating system waist clamp stretch Shanghai Jiejiabaigu
I. Factory
The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.
II. Automatic CZAJ series press machine (legger)
Model | CZAJ-102C |
Control | Automatic LED PLC (8 programs) |
Optional: touch-screen PLC (16 programs) | |
Buck name | waist / top |
Buck material | Alumninum |
Total pressure | 1,600kg |
Heat method | Steam chamber |
Optional electric heating | |
Steam spray | Top buck, bottom buck, or both |
Vacuum | Bottom buck, top buck, or both |
Standard: 2” vacuum pipe system | |
Optional 1: 1.5kw 220V build-in vacuum pump | |
Optional 2: 0.75kw 380V build-in vacuum pump | |
Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
Standard: 1/2” pipe | |
Optional: build-in steam boiler 12kw 380V | |
Spray by Japan design big volume steam | |
Compress air | 0.4-0.6MPa (15L/min) |
Standard: 8mm pipe | |
Optional: build-in air compressor 1.5kw 220V | |
Electric power |
220V/1ph/50hz, 0.1kw 220V/1ph/50hz, 1.6kw (with build-in vacuum pump) 380V/1PH/50hz, 0,85kw (with build-in vacuum pump) |
Drained water | 1/2” |
Dimension | 900x1200x1350mm |
Safety | 3 levels |
Net weight | 420kg |
Package | Wooden case |
III. Feature
3.1 Scissors-type close & level press
High pressure 2,600kg / 1,600kg
3.2 Metal buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty)
3,6 180mm length shock absorber (long life)
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
3.10 Bottom buck has vacuum
3.11 Famous pneumatic parts
3.12 suitable for: pant / trousers
3.13 ironing part: waist / topper
3.14 extra device: waist stretch down device, improve efficiency
IV. Full pant trousers press machine
NO. | Model | Description of machine | Dimension: L x W x H mm |
1 | CZBJ-136 | Pocket press | 900x1200x1300 |
2 | CZBJ-137 | Seat seam press | 900x1200x1300 |
3 | CZAJ-666 | Legger stretch press | 1200x1200x1350 |
4 | CZBJ-119 | Side seam press | 1200x1200x1300 |
CZAJ-119 | --Dual cylinder | 1200x1200x1300 | |
5 | CZBJ-102 | Waist press | 900x1200x1300 |
CZAJ-102 | --Dual cylinder | 900x1200x1350 | |
CZAJ-102R | --Dual cylinder & electric heat | 900x1200x1350 | |
6 | CZBJ-101 | Legger press | 1200x1200x1300 |
7 | CZAJ-101 | --Dual cylinder | 1200x1200x1350 |
8 | CZAJ-101R | --Dual cylinder & electric heat | 1200x1200x1350 |
9 | CYAJ-101 | --vertical press | 1200x1200x1650 |
10 | CYAJ-101S | Double legger press | 3000x1600x1350 |
V. Production range of machinery:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
VI. Q&A
1.How could I get more information? please contact with: barclay_yang@163.com
2. Do you have another type of machine ? Yes. we have 3 different levels of machine for your reference
3. Do you have any customer factory to see? Yes. please contect with us to find close one for you.
4. Do you have machine video? Yes. please contact with us.
5. Are you factory? Yes. We have manufactured for over 20 years.
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
2. Automatic suit jacket press machine (double lapel)
Model | CZAJ-102C |
Control | Automatic touch-screen PLC / LED PLC |
Total pressure | 2600kg |
Buck heating | Electric heat |
Compress air | 0.4-0.6MPa (15L/min) 8mm |
Electric power | 220V/1ph/50HZ |
Vacuum | 0.75kw extra vacuum pump 2” |
Drained water | 1/2” |
Dimension | 900x1200x1350mm |
Net weight | 420kg |
3. Feature
Scissors-type close & supper strong press
pressure: 1600-2600kg
Metal buck is suitable for garment
(customizable)
Automatic Touch-screen PLC
- bucks gap is adjustable in PLC
- pressure is adjustable in PLC
- steam spray optional: top, bottom or both
- vacuum optional: top, bottom or both
3 level safety protection device
(easy to check faulty)
Steam heating system
Top buck steam spray + vacuum
(steam chamber supply much volume)
Bottom buck has vacuum + steam spray
Famous pneumatic parts
4. Machine list of Shirt final press
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed different product:
NO. | Model | Description of machine | Dimension: L x W x H mm |
1 | CZBJ-136 | Pocket press | 900x1200x1300 |
2 | CZBJ-137 | Seat seam press | 900x1200x1300 |
3 | CZAJ-666 | Legger stretch press | 1200x1200x1350 |
4 | CZBJ-119 | Side seam press | 1200x1200x1300 |
CZAJ-119 | --Dual cylinder | 1200x1200x1300 | |
5 | CZBJ-102 | Waist press | 900x1200x1300 |
CZAJ-102 | --Dual cylinder | 900x1200x1350 | |
CZAJ-102R | --Dual cylinder & electric heat | 900x1200x1350 | |
6 | CZBJ-101 | Legger press | 1200x1200x1300 |
7 | CZAJ-101 | --Dual cylinder | 1200x1200x1350 |
8 | CZAJ-101R | --Dual cylinder & electric heat | 1200x1200x1350 |
9 | CYAJ-101 | --vertical press | 1200x1200x1650 |
10 | CYAJ-101S | Double legger press | 3000x1600x1350 |
5. Factory product range
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
6. Question & Answer
1.Q |
How could I get more information about your equipment & factory |
A | Please contact with our E-mail or local agent. |
2.Q | Do you have another type of equipment? |
A | Yes. We have 3 different levels of equipment for your reference |
3.Q | Do you have any customer factory to see? |
A | Yes. Please contact with us to find close one for you. |
4.Q | Do you have machine video? |
A | Yes. Please contact with us. |
5.Q | Are you factory? |
A | Yes. We started to manufacture on 1995 |
6.Q | Our garment is export to different countries. Do you have suitable buck? |
A | Yes. We have different types of buck series for your reference. |
7.Q | Our factory production is not much, could I have some suggestion? |
A | Yes. We have double buck machine for small production factory. |
8.Q | Do you have English manual and installation instruction? |
A | Yes. We have all. |
9.Q | Could you supply OEM product? |
A | Yes. We are supplying OEM equipment for Italy, English, American customer. |
10.Q | Could you supply with demo equipment e? |
We could supply with demo equipment with some cost. |
7. Factory and supporting processing equipment
