Product Details:
|
Control: | 7" Touch-sreen PLC Or LED Type PLC | Press: | MAX 2600KG |
---|---|---|---|
Heat: | Steam Chamber / Electric Or Both | Drive: | Compressed Air / Cylinder |
Electric Power: | 220V/1ph/50HZ / 380V/3ph/50hz | Buck: | Metal / Aluminium |
Suitable: | Pant Trousers | Suction: | Vacuum Pipe 2" |
Highlight: | Steam Ironing Pant Presser Machine,Industrial Trouser Steam Press,Sewing Line Trouser Pressing Machine 220V |

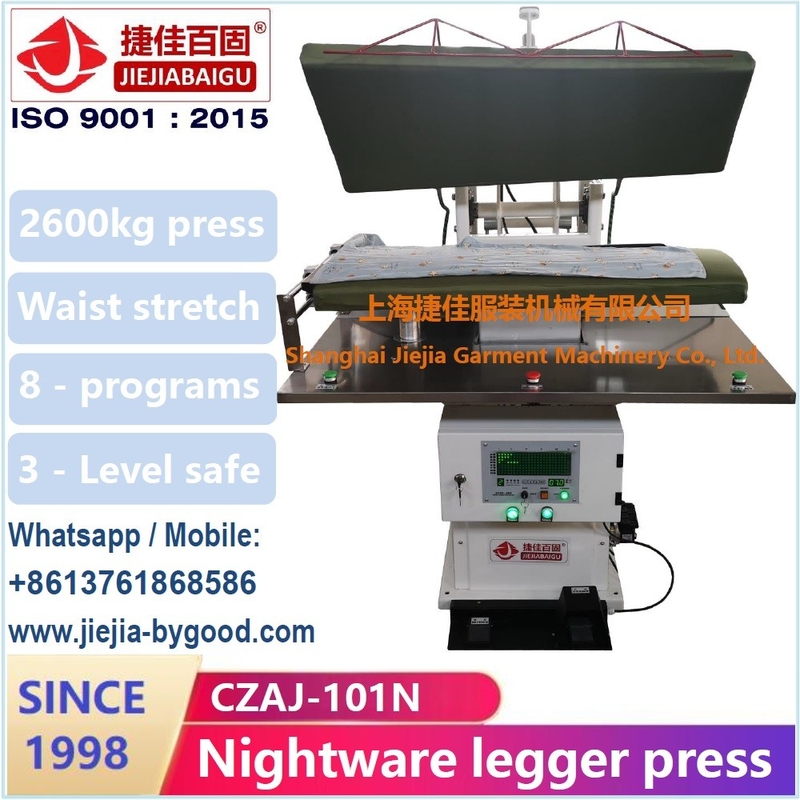

CZAJ pant trousers sewing line Auto-PLC press machine legger press Shanghai Jiejiabaigu
This steam press is perfect machine forr hotels, classic laundry shop, health care center to do ironing job of clothes
This steam press is used for shaped-fixed and ironing processing for suits, the trousers' legs and rousers which made of woool, synthetic fibric, it is easy in maintance and adaptable to medium and small-size garment manufactures.
Both the top mold and bottom mold is vacuum and heated by steam.
The machine can be operated manually or automatic that the air operated automatic steam press.
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department.
Our machine has famous spare part like Mitsubishi, Omron, SCHNEIDER, FOTEK and so on.
The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.
II. Automatic Pant press machine
Model | CZAJ-101 / CZAJ-101R |
Control | Automatic LED PLC / touch-screen PLC |
Total pressure | 2,600kg (MAX) |
Steam | 0.4-0.6MPa (18kg/h) 1/2” |
Compress air | 0.4-0.6MPa (25L/min) 8mm |
Electric power | 220V/1ph/50HZ |
Vacuum | 1.5kw extra vacuum pump 2” / build-in vacuum unit |
Drained water | 1/2” |
Dimension | 1200x1200x1350mm |
Net weight | 470kg |
III. Feature
Scissors-type close & press
Metal buck is suitable for garment
(customizable)
Supper high pressure upto 2,600kg
Automatic LED PLC / Touch-screen PLC
3 level safety protection device
180mm length shock absorber (long life)
Steam heating system
Top buck steam spray
High volume Japan type steam valve
(steam chamber supply much volume)
Bottom buck has vacuum
Famous pneumatic parts
IV. Full pant press machine
NO. | Model | Description of machine | Dimension: L x W x H mm |
1 | CZBJ-137 | Seat seam open | 900x1200x1300 |
2 | CZCJ-136 | Pocket iron | 900x900x1650 |
3 | CZAJ-666 | Legger stretch | 1200x1200x1350 |
4 | CZAJ-119 | High pressure side seam | 1200x1200x1350 |
5 | CZBJ-119 | Side seam open | 1200x1200x1300 |
6 | CZBJ-102 | Topper press | 900x1200x1300 |
7 | CZAJ-102 | High pressure topper press | 900x1200x1350 |
8 | CZAJ-102R | Electric-heat high pressure topper | 900x1200x1350 |
9 | CZBJ-101 | Legger press | 1200x1200x1300 |
10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
11 | CZAJ-101R | Electric-heat high pressure legger | 1200x1200x1350 |
12 | CYAJ-101 | Vertical press legger press | 1200x1200x1650 |
13 | CYAJ-101S | Vertical press double legger | 3000x1600x1650 |
14 | VTH-288A | Pant blowing machine / dummy | 500x1200x2000 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
