Product Details:
|
| Control: | Touch-sreen PLC Led Controller | Press: | Vertical Straightly |
|---|---|---|---|
| Heat: | Steam Both Top + Bottom | Drive: | Compressed Air / Cylinder 100mm |
| Electric Power: | 220V/1ph/50HZ | Certification: | ISO9001:2015 |
| Highlight: | PLC Vertical Steam Press Machine,Heating System Steam Press Machine,Universal Laundry Steam Press |
||
Touch screen suit dress press machine equipment vertical press lapel Shanghai Jiejiabaigu
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic suit jacket press machine (double lapel)
| Model | CXAJ-126 |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 900x1200x1650mm |
| Net weight | 420kg |
III. Feature
Scissors-type close & vertical press types
(All buck surface press at same time)
Metal buck is suitable for garment
(customizable)
Automatic Touch-screen PLC 7inch color type
- bucks gap is adjustable (optional)
- pressure is adjustable
- steam spray optional: top, bottom or both design (optional)
- vacuum optional: top, bottom or both option (optional)
3 level safety protection device type
(in-out signal easy to check faulty in time)
180mm length shock absorber (long life for runing) or air type
Steam heating system type for both
Top buck steam spray + vacuum both (optional)
(steam chamber supply much volume spray)
Bottom buck has vacuum + steam spray
Famous pneumatic parts for stable
build-in vacuum unit
IV. Full dry press machine (vertical press type)
| NO. | Model | Description of machine high | Dimension: L x W x H mm |

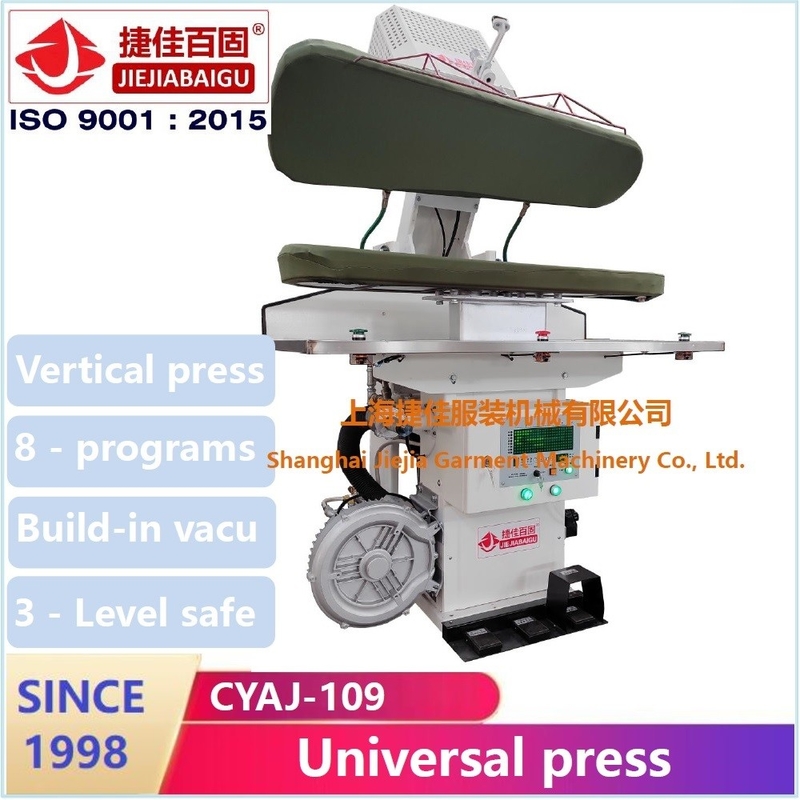

| 1 | CYAJ-109 | Universal press (vertical) | 1200x1200x1650 |
| 2 | CYAJ-101 | Legger press (vertical) | 1200x1200x1650 |
| 3 | CYAJ-L220 | Collar & cuff press | 1200x1200x1650 |
| 4 | CYAJ-107.108 | Right & left back press (vertical) | 1750x1200x1650 |
| 5 | CYAJ-122.123 | Right & left back press (vertial) | 1750x1200x1650 |
| 6 | CYAJ-1078R | Shirt front press | 1200x1200x1650 |
| 7 | CYAJ-1223R | Shirt back press | 1200x1200x1650 |
| 8 | CYAJ-102 |
Universal press small buck |
900x1200x1650 |
| 9 | CYAJ-101S | Double legger press | 3000x1600x1650 |
| 10 | CYAJ-113 | Sleeve press | 1200x1200x1650 |
| 11 | CYAJ-126 | Double lapel press | 900x1200x1650 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1.How could I get more information?
please contact with our E-mail or local agent.
2. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your -reference
3. Do you have any customer factory to see?
Yes. please contect with us to find close one for -you.
4. Do you have machine video?
Yes. please contact with us.
5. Are you factory?
Yes. We started to manufacture on 1995
6.Our garment is export to USA. Do you have suitable buck?
Yes. We have different types of buck series for your reference.
7.Our factory production is not much, could I have some suggestion about the machine?
Yes. We have double buck machine for small production -factory.
8.Do you have English manual and installation instruction?
Yes. We have all machine with English manual and installation -instruction.
9.Could you supply OEM product?
Yes. We are supplying many OEM machine for Italy, English, American -customer.
10. Could you supply with demo machine?
We could supply with demo machine but it is could be charged for some cost.
=========================================
