Product Details:
|
| Product Name: | PU Jacket Pressing Machine Right Front | Control: | Touch-sreen PLC 7 Inch / LED Controller |
|---|---|---|---|
| Press: | Vertical 750kg | Heat: | Steam 150C |
| Drive: | 100 Size Cylinder | Electric Power: | 220V/1ph/50HZ Or 110V |
| Application: | Jacket, Classic Suit, The Trousers, Trousers' Legs, | Buck: | Right Front Body |
| Steam: | High Volume | Drain: | Trap 1/2" |
| Highlight: | Automatic Suit Jacket Pressing Machine,Right Front Dress Pressing Machine 50HZ,PU Suit Dress Pressing Machine |
||

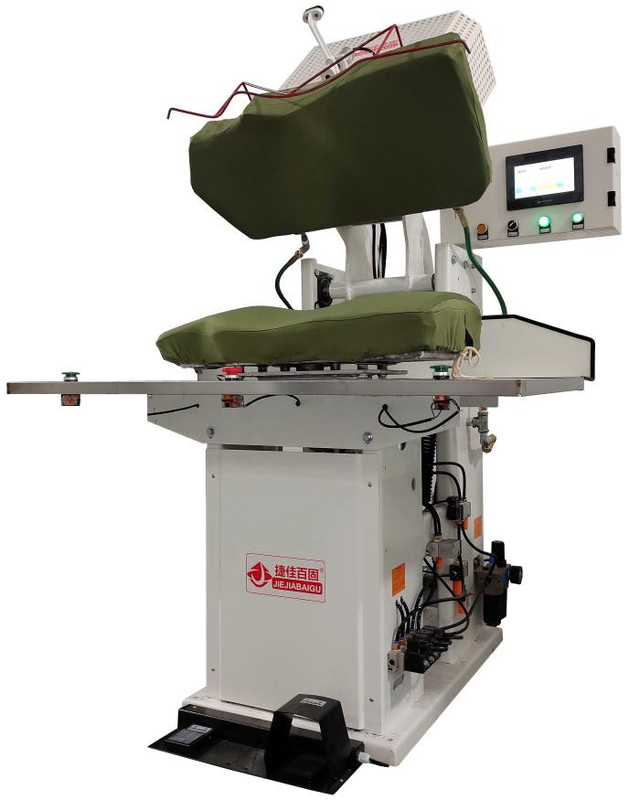

Automatic Lady PU Automatic Suit Jacket Pressing Machine Right Front
The universal steam Jacket press clamping machine is used for shaped-fixed and ironing processing for the classic suit, the trousers, trousers' legs, collar and sleeve which are made of wool, synthetic fabric, it is easy to operate and maintain and can be adapted for medium and small-sized garment manufacturers.
| Model | CZBJ | CYAJ |
| Driving mode | Automatic | Automatic |
| Heating model of upper and lower mould | Steam | Steam |
| Driving mode of the mould | 1 cylinder close & press | 1 cylinder close & 1 cylinder press |
| Steam working pressure (Mpa ) | 0.4Mpa to 0.6Mpa | 0.4Mpa to 0.Mpa |
| Steam consumption | 420kg | 520kg |
| Dimension | 1200mm*1200mm*1300mm | 1200mm*1200mm*1650mm |
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic suit jacket press machine (Lady Right front press)
| Model | CYAJ-107 lady front body jacket press machine |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” pipe |
| Compress air | 0.4-0.6MPa (15L/min) 8mm quick connect |
| Electric power | 220V/1ph/50HZ / 110V |
| Vacuum | 1.5kw extra vacuum pump 2” PIPE |
| Drained water | 1/2” PIPE |
| Dimension | 1200x1200x1650mm |
| Net weight5 | 20kg |
III. Feature
3.1 Scissors-type close & press
pressure 300kg
3.2 Metal buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty)
3,6 180mm length shock absorber (long life)
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on
5 series of main product:
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
Factory:
V. Q&A
| 1.Q | How could I get more information |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Sure. We have 3 different levels of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Sure. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Sure. Please contact with us. |
| 5.Q | Are you factory? |
| A | Sure. We started to manufacture on 1995 in Shanghai China. |
| 6.Q | Do you have different buck for different market? |
| A | Sure. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Sure. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Sure s. We have all for you. |
| 9.Q | Could you supply OEM product? |
| A | Sure. We are supplying OEM machine for Italy, English, American customer. |
| 10.Q | Could you supply with demo machine? |
| We could supply with demo machine with refundable cost. |
