Product Details:
|
| Product Name: | Steam 150C Duffel Coat Pressing Machine | Control: | Touch-sreen PLC 7 Inch / LED Controller |
|---|---|---|---|
| Press: | Vertical 750kg | Keyword: | Stainless Steel Board |
| Drive: | 100 Size Cylinder | Electric Power: | 220V/1ph/50HZ Or 110V |
| Buck: | Left Front Body | Steam: | High Volume |
| Drain: | Trap 1/2" | Feature: | 3 Level Safety Protection Device |
| Highlight: | Steam Duffle Coat Pressing Machine,Vertical Lapel Press Dress Pressing Machine,Right Front Automatic Dress Press Machine |
||

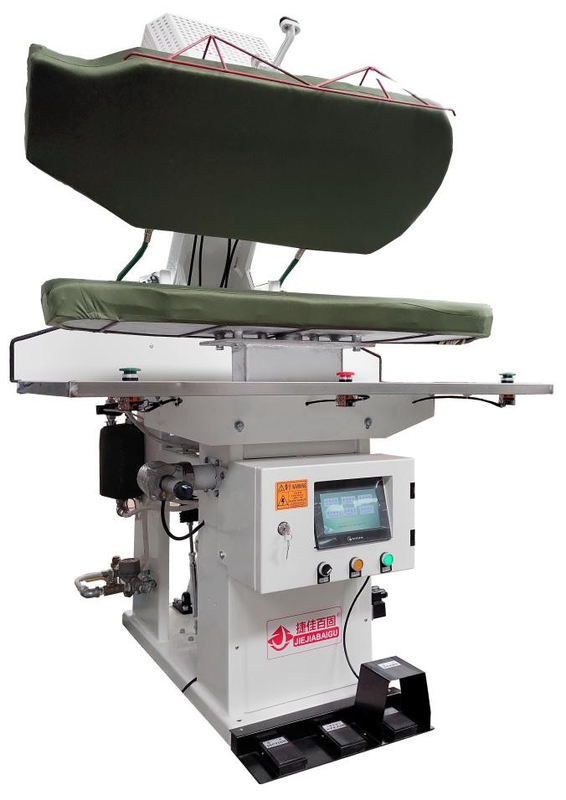

Steam Duffel Coat Pressing Machine Right Front Vertical Lapel Press Dress Pressing Machine
Feature
3.1 Scissors-type close & press
pressure 300kg
3.2 Metal buck is suitable for garment
(customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty)
3,6 180mm length shock absorber (long life)
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
| Model | CZBJ | CYAJ |
| Driving mode | Automatic | Automatic |
| Heating model of upper and lower mould | Steam | Steam |
| Driving mode of the mould | 1 cylinder close & press | 1 cylinder close & 1 cylinder press |
| Steam working pressure (Mpa ) | 0.4Mpa to 0.6Mpa | 0.4Mpa to 0.Mpa |
| Steam consumption | 420kg | 520kg |
| Dimension | 1200mm*1200mm*1300mm | 1200mm*1200mm*1650mm |
II. Automatic suit jacket press machine (Lady left front press)
| Model | CYAJ-107 lady front body |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” pipe |
| Compress air | 0.4-0.6MPa (15L/min) 8mm quick connect |
| Electric power | 220V/1ph/50HZ / 110V |
| Vacuum | 1.5kw extra vacuum pump 2” PIPE |
| Drained water | 1/2” PIPE |
| Dimension | 1200x1200x1650mm |
| Net weight5 | 20kg |
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CYAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CYAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CYAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CYAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CYAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CYEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CYGJ-547 | Collar master | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
Factory:
Factory
The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
Our company has passed is090001-2015 quality system certification.
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department.
Our machine has famous spare part like Mitsubishi, Omron, SCHNEIDER, FOTEK and so on.
The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.
V. Q&A
| 1.Q | How could I get more information |
| A | Please contact with our E-mail or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Sure. We have 3 different levels of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Sure. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Sure. Please contact with us. |
| 5.Q | Are you factory? |
| A | Sure. We started to manufacture on 1995 in Shanghai China. |
| 6.Q | Do you have different buck for different market? |
| A | Sure. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Sure. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Sure s. We have all for you. |
| 9.Q | Could you supply OEM product? |
| A | Sure. We are supplying OEM machine for Italy, English, American customer. |
| 10.Q | Could you supply with demo machine? |
| We could supply with demo machine with refundable cost. |
