Product Details:
|
Product Name: | Duffel Coat Pressing Machine | Control: | Touch-sreen PLC |
---|---|---|---|
Press: | Vertical | Heat: | Steam Heating System |
Drive: | Compressed Air / Cylinder | Electric Power: | 220V/1ph/50HZ |
Buck Material: | Aluminiu Aa | Feature: | 180mm Length Shock Absorber |
Highlight: | Vertical Duffle Coat Pressing Machine,Blazer Suit Coat Pressing Machine,Steam Heating Automatic Dress Press Machine |

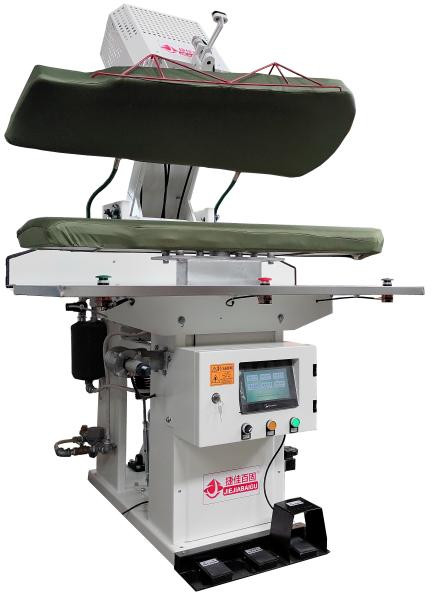

Vertical Duffel Coat Pressing Machine Left Back With Steam Heating System Blazer Suit
The Duffel Coat Pressing Machine is used for shaped-fixed and ironing processing for the classic suit, the trousers, trousers' legs, collar and sleeve which are made of wool, synthetic fabric, it is easy to operate and maintain and can be adapted for medium and small-sized garment manufacturers
Specification:
1. High efficiency universal press machine, manual or automatic control
2. The new designed could be guarantee high performances and big production costs saving
3. The wide range of version and available shapes, according to the need, makes this series extremely versatile
4. Top press unit made of aluminum casting which is light to handle, non-oiling ball bearing
5. Well insulated press design allow fast steam escape from the press head
Model | CPJ | CYAJ |
Driving mode | Manual | Automatic cylinder |
Heating model of upper and lower mould | Steam | Steam |
Driving mode of the mould | Upper mould hand operated Lower mould foot operated |
Upper mould and lower mould automatic move |
Steam working pressure (Mpa ) | 0.4Mpa to 0.6Mpa | 0.4Mpa to 0.Mpa |
Steam consumption | 18kg/h | 18kg/hour |
Dimension | 1200mm*1200mm*1350mm | 1200mm*1200mm*1650mm |
II. Automatic suit jacket press machine (Lady left back press)
Model | CYAJ-122 |
Control | Automatic LED PLC (8 programs) |
Optional: touch-screen PLC (16 programs) | |
Buck name | left back body |
Buck material | Aluminiu aa |
Total pressure | 100 ...750kg |
Heat method | Steam chamber and pipe system |
Steam spray | Top buck, bottom buck, or both heat |
Vacuum | Bottom buck, top buck, or both vacuum |
Standard: 2” vacuum pipe system | |
Optional 1: 1.5kw 220V build-in pump | |
Optional 2: 0.75kw 380V build-in pump | |
Steam | 0.4-0.6MPa (18kg/h) / (15kg/h) |
Standard: 1/2” pipe | |
Optional: build-in steam boiler 12kw 380V | |
Spray by Japan design steam vavle | |
Compress air | 0.4-0.6MPa (20L/min) |
Standard: 8mm pipe system | |
Optional: build-in air compressor 1.5kw 220V | |
Electric power |
220V/1ph/50hz, 0.1kw 220V/1ph/50hz, 1.6kw (with build-in pump) 380V/1PH/50hz, 0,85kw (with build-in pump) |
Drained water | 1/2” pipe |
Dimension | 1200x1200x1650mm |
Safety | 3 levels |
Net weight | 470kg up |
Package | Wooden case |
II. Feature
3.1 Scissors-type close & vertical press well
(All buck surface press at same time)
3.2 Aluminiu buck is suitable for garment
(customizable or standar)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs to save)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty if necessary)
3,6 180mm length shock absorber (long life)
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
3.10 Bottom buck has vacuum
3.11 Famous pneumatic parts
IV. Full final suit press machine
NO. | Model | Description of machine | Dimension: L x W x H mm |
1 | CYAJ-107 | Left front press | 1200x1200x1650 |
2 | CYAJ-108 | Right front press | 1200x1200x1650 |
3 | CYAJ-122 | Left back press | 1200x1200x1650 |
4 | CYAJ-123 | Right back press | 1200x1200x1650 |
5 | CYAJ-126 | Double lapel press | 900x1200x1650 |
6 | CYEJ-116.117 | Double shoulder press | 1000x1000x2150 |
7 | CYGJ-547 | Collar master press | 1100x1100x2150 |
8 | CZBJ-104 | Sleeve front press | 900x1200x1300 |
9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
11 | CABJ-114-14 | Sleeve blocking press | 900x1200x1300 |
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
I. Factory
The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - jacket ironing machine 2 - shirt ironing machine 3 - pant ironing machine.
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
=========================================
