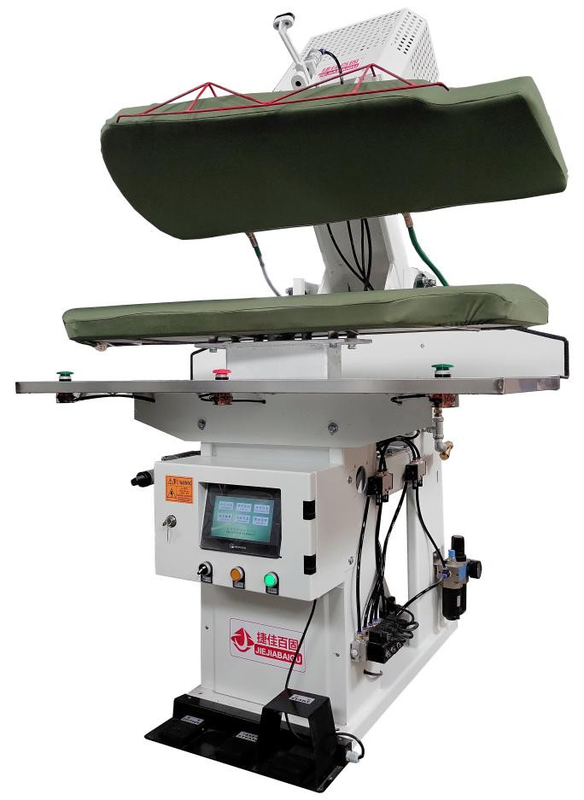

Vertical Automatic Duffle Coat Pressing Machine Right Back Steam Heating System

Vertical Automatic Duffle Coat Pressing Machine Right Back Steam Heating System
Vertical Automatic Duffle Coat Pressing Machine Right Back Steam Heating System
Vertical Automatic Duffle Coat Pressing Machine Right Back Steam Heating System Vertical Automatic Duffle Coat Pressing Machine Right Back Steam Heating System

Large Image :  Vertical Automatic Duffle Coat Pressing Machine Right Back Steam Heating System

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Vertical Automatic Duffle Coat Pressing Machine Right Back Steam Heating System

Description
Product Name: Automatic Duffel Coat Pressing Machine Control: Touch-sreen 7" PLC
Press: Vertical High Pressure Type: Right Back Body Press
Drive: Dryed Compressed Air / Cylinder Electric Power: 220V/1ph/5060HZ
Feature: Scissors-type Close & Vertical Press Pressure: 100 ~ 750kg
Vacuum: Pipe 2" Or Build-in Location Lazer: Optional Or 2 Pieces
High Light:

Automatic Duffle Coat Pressing Machine

,

Vertical Garment Coat Pressing Machine

,

Steam Heating System Dress Pressing Machine

Vertical Garment Automatic Duffel Coat Pressing Machine Right Back Steam Heating System Feature



Scissors-type close & vertical press

(All buck surface press at same time)

Metal buck is suitable for garment

(customizable)

Automatic Touch-screen PLC

3 level safety protection device

(easy to check faulty)

180mm length shock absorber (long life)

Steam heating system

bottom buck with heating system & vacuum

top buck with heating chamber & optional vacuum

Top buck steam spray

(steam chamber supply much volume)

Bottom buck has vacuum

Famous pneumatic parts



Model CPJ CYAJ
Driving mode Manual Automatic
Heating model of upper and lower mould Steam Steam
Driving mode of the mould Upper mould hand operated
Lower mould foot operated

Upper mould and lower mould automatic
Steam working pressure (Mpa ) 0.4Mpa to 0.6Mpa 0.4Mpa to 0.Mpa
Steam consumption 18kg/hour 18kg/hour
Dimension 900mm*1200mm*1350mm 1200mm*1200mm*1650mm





II. Automatic suit jacket press machine (Lady left back press)

Model CYAJ-122
Control Automatic touch-screen PLC
Total pressure 750kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (20L/min) 8mm
Electric power 220V/1ph/5060HZ
Vacuum 1.5kw extra vacuum pump 2”
Drained water 1/2”
Dimension 900x1200x1650mm
Net weight 420kg







IV. Full final suit jacket uniform press machine list



NO. Model Description of machine Dimension: L x W x H mm
1 CYAJ-107 Left front body press 1200x1200x1650
2 CYAJ-108 Right front body press 1200x1200x1650
3 CYAJ-122 Left back body press 1200x1200x1650
4 CYAJ-123 Right back body press 1200x1200x1650
5 CYAJ-126 Double lapel 900x1200x1650
6 CYEJ-116.117 Double shoulder 1000x1000x2150
7 CYGJ-547 Collar master 1100x1100x2150
8 CZBJ-104 Sleeve front 900x1200x1300
9 CZBJ-105 Sleeve elbow 900x1200x1300
10 CZBJ-114 Sleeve arm-hole 900x1200x1300
11 CABJ-114-14 Sleeve blocking 900x1200x1300






V. Q&A

1.How could I get more information?
please contact with our E-mail or local agent.

2. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

3. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

4. Do you have machine video?

Yes. please contact with us.

5. Are you factory?

Yes. We started to manufacture on 1995

6.Our garment is export to USA. Do you have suitable buck?

Yes. We have different types of buck series for your reference.

7.Our factory production is not much, could I have some suggestion about the machine?

Yes. We have double buck machine for small production factory.

8.Do you have English manual and installation instruction?

Yes. We have all machine with English manual and installation instruction.

9.Could you supply OEM product?

Yes. We are supplying many OEM machine for Italy, English, American customer.

10. Could you supply with demo machine?

We could supply with demo machine but it is could be charged for some cost.









======================================
