Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine

Description
Features: Steam Heating System Blazer Suit Product Name: Jacket Pressing Machine
Control: Touch-sreen PLC Press: Vertical
Steam Working Pressure (Mpa ): 0.4Mpa To 0.6Mpa Drive: Compressed Air / Cylinder
Electric Power: 220V/1ph/50HZ Type: Right Back
High Light:

PU Jacket Pressing Machine

,

Right Back Dress Pressing Machine

,

PLC Dress Pressing Machine


Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine​
Jacket Pressing Machine is used for  the classic suit, the trousers, trousers' legs, collar and sleeve which are made of wool, synthetic fabric, it is easy to operate and maintain and can be adapted for medium and small-sized garment manufacturers


Specification:

1. High efficiency universal press machine, manual or automatic control
2.The new designed could be guarantee high performances and big production costs saving
3.The wide range of version and available shapes, according to the need, makes this series extremely versatile
4.Top press unit made of aluminum casting which is light to handle, non-oiling ball bearing

5.Well insulated press design allow fast steam escape from the press head


II. Feature

  • Sclssors-type close & press.
  • Metal buck is suitable for garment (Customizable)
  • Automatic LED Controller (8 programs)
  • Automatic LED Controller (8 programs)
  • (Set: close, press steam, Vacuum)
  • Pneumatic Pressure adjustment for every type of fabric
  • Sensitive Ironing with Pat-pat Ironing function.
  • Safety frame for operate safe optional
  • Computer (PLG) Control
  • Laser Pointer
  • Period of step: 0.5/1.0/1.5/2.0/2.5 second
  • 3 level safety protection device.
  • Output signal on electric board (easy to check faulty)
  • 180 mm length shock absorber (long life)
  • Stainless still board, Steam heating system.
  • Top buck steam spray (Italy-made Valve)
  • Bottom buck has vacuum
  • Famous Pneumatic parts.
ModelCPJ suit jacket press machineCYAJ suit jacket press machine
Driving modeManualAutomatic cylinder
Heating model of upper and lower mouldSteamSteam
Driving mode of the mouldUpper mould hand operated
Lower mould foot operated

Upper mould and lower mould automatic move
Steam working pressure (Mpa )0.4Mpa to 0.6Mpa0.4Mpa to 0.6Mpa
Steam consumption18kg/h18kg/hour
Dimension1200mm*1200mm*1350mm1200mm*1200mm*1650mm



II. Automatic suit jacket press machine (Lady left back press)

Modelsuit jacket press machine
ControlAutomatic LED PLC (8 programs)
 Optional: touch-screen PLC (16 programs)
Buck nameleft back body
Buck materialAluminiu aa
Total pressure100 ...750kg
Heat methodSteam chamber and pipe system
Steam sprayTop buck, bottom buck, or both heat
VacuumBottom buck, top buck, or both vacuum
 Standard: 2” vacuum pipe system
 Optional 1: 1.5kw 220V build-in pump
 Optional 2: 0.75kw 380V build-in pump
Steam0.4-0.6MPa (18kg/h) / (15kg/h)
 Standard: 1/2” pipe
 Optional: build-in steam boiler 12kw 380V
 Spray by Japan design steam vavle
Compress air0.4-0.6MPa (20L/min)
 Standard: 8mm pipe system
 Optional: build-in air compressor 1.5kw 220V
Electric power

220V/1ph/50hz, 0.1kw
220V/1ph/50hz, 1.6kw (with build-in pump)
380V/1PH/50hz, 0,85kw (with build-in pump)

Drained water1/2” pipe
Dimension1200x1200x1650mm
Safety3 levels
Net weight470kg up
PackageWooden case



IV. Full final suit press machine


NO.ModelDescription of machineDimension: L x W x H mm
1CYAJ-107Left front press1200x1200x1650
2CYAJ-108Right front press1200x1200x1650
3CYAJ-122Left back press1200x1200x1650
4CYAJ-123Right back press1200x1200x1650

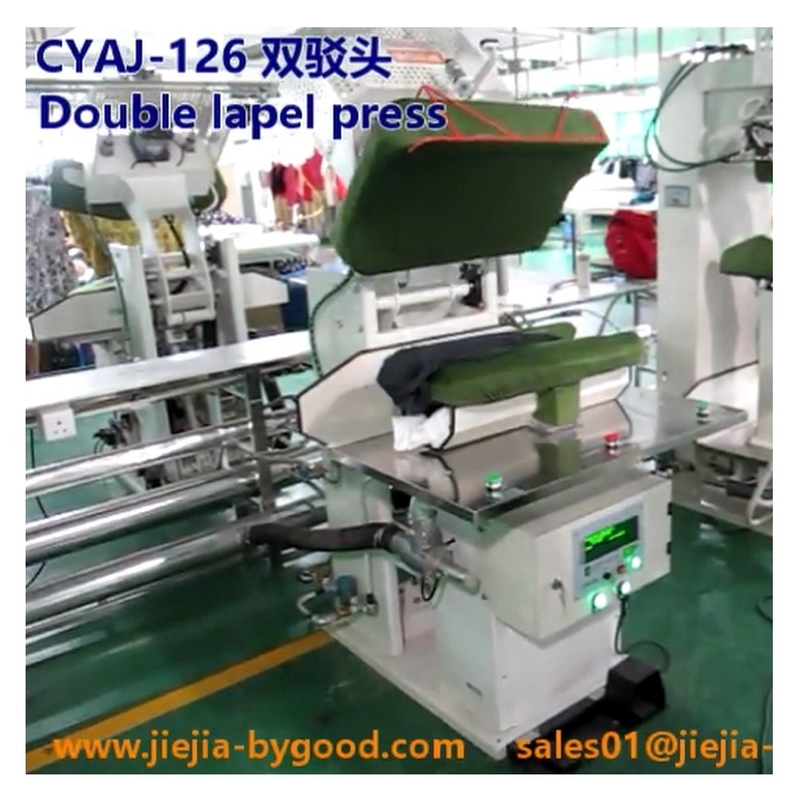

5CYAJ-126Double lapel press900x1200x1650
6CYEJ-116.117Double shoulder press1000x1000x2150
7CYGJ-547Collar master press1100x1100x2150
8CZBJ-104Sleeve front press900x1200x1300
9CZBJ-105Sleeve elbow900x1200x1300
10CZBJ-114Sleeve arm-hole900x1200x1300
11CABJ-114-14Sleeve blocking press900x1200x1300




 5 series of main product:


  1. Fabric shrink / inspect / fuse machinery all solution
  2. Suits pressing machinery series
  3. trousers machinery series
  4. Shirt machinery series
  5. Jeans denim machinery series
  6. Knitting / sweater machinery series


=========================================




I
Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 0Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 1

Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 2

Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction

Factory:
Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 3  Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 4

Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 5  Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 6

Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 7  Right Back Automatic Dress Pressing Machine PU Jacket Pressing Machine 8

I. Factory
The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - jacket ironing machine 2 - shirt ironing machine 3 - pant ironing machine.

V. Q&A

1.QHow could I get more information
APlease contact with our E-mail or local agent.
2.QDo you have another type of machine?
AYes. We have 3 different levels of machine for your reference
3.QDo you have any customer factory to see?
AYes. Please contact with us to find close one for you.
4.QDo you have machine video?
AYes. Please contact with us.
5.QAre you factory?
AYes. We started to manufacture on 1995
6.QOur garment is export to different countries. Do you have suitable buck?
AYes. We have different types of buck series for your reference.
7.QOur factory production is not much, could I have some suggestion?
AYes. We have double buck machine for small production factory.
8.QDo you have English manual and installation instruction?
AYes. We have all.
9.QCould you supply OEM product?
AYes. We are supplying OEM machine for Italy, English, American customer.
10.QCould you supply with demo machine?
AWe could supply with demo machine with some cost.
