Product Details:
Place of Origin: CHINA, SHANGHAI
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Full Range Garment Ironing Machine For Lady Dress Back

Description
Control: Color Touch-sreen PLC Press: Vertical Presss
Drive: Compressed Air / Cylinders Heat: Steam Chamber &steam Pipes
Electric Power: 220V/1ph/50HZ Certification: ISO9001:2015
High Light:

full range garment ironing machine

,

lady dress back garment ironing machine

,

full range shirt steam press machine

Shanghai Jiejiabaigu Factory 1998 Full Range Garment Ironing Machine lady dress front



I. Factory



Factory since: 1998

Full range of garment ironing equipment

Reliable equipment quality

Delivery in time

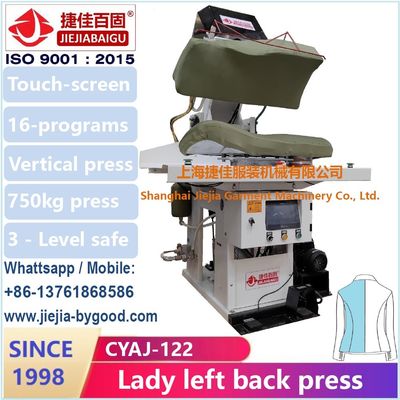

II. Automatic suit jacket press machine (sleeve elbow seam)



Model CYAJ-122 / CYAJ-123
Control Automatic LED PLC / touch-screen PLC
Total pressure upto 750kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (20L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 1.5kw extra vacuum pump 2”
Drained water 1/2”
Dimension 900x1200x1650mm
Net weight 470kg









III. Feature

Scissors-type close & vertical presss

Aluminum buck is suitable for lady dresss

(customizable)s

Automatic LED  PLC / Touch-screen PLCs

-16 programs

-MITSUBISHI PLCs

-touch-screen 7"

3 level safety protection device

Steam heating systems

-steam cheambers

-stainless steel pipe

Top buck steam spray

big volume (adjustable) steam valve

Bottom buck has vacuum

Famous pneumatic parts





IV. Full inline suit press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-105 sleeve front seam 900x1200x1300mm
2 CZBJ-104 sleeve elbow seam 900x1200x1300mm
3 CYAJ-107 Left front 1200x1200x1650mm
4 CYAJ-108 Right front 1200x1200x1650mm
5 CYAJ-122 Left back 1200x1200x1650mm
6 CYAJ-123 Right back 1200x1200x1650mm
7 CYEJ-116.117 Double shoulder 1000x1100x2050mm
8 CYGJ-547 Collar master 1100x1100x2050mm
9 CZBJ-114 Sleeve blocking 900x1200x1300mm
10 CZBJ-114-14 Sleeve arm-hole 900x1200x1300mm
11 CYAJ-126 Double lapel 900x1200x1650mm



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



Add: No. 2759 Shendu Road, Shanghai, China 201112



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================

Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
