Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

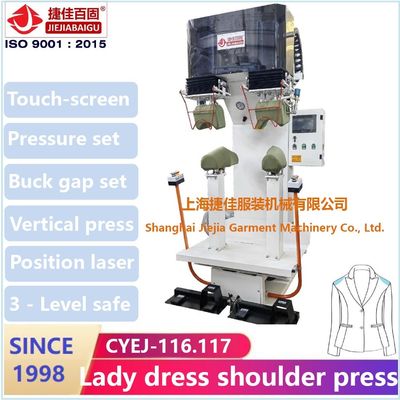

Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment

Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment
Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment
Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment

Large Image :  Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYEJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment

Description
Control: Touch-sreen PLC 7" Press: Vertical 300KG
Heat: Steam Chamber & Pipe Both Drive: Air Cylinder Automatic
Location: Laser Pilot Buck: Left Shoulder & Right Shoulder
Buck Gap: Set In PLC 0 To 50mm Steam Spray: Japan Design Vavle & Italy Made Valve
High Light:

ISO jacket pressing machine

,

7" jacket pressing machine

,

steam iron press machine for clothes

Lady Blazer double shoulder Jacket Pressing Machines Vertical steam ironing equipment





1. Instructions:

CXEJ-116.117 is used to press jacket blazer suit double shoulder in suit final press line.

They are designed for different kind of fabric with many different functions



2. Machine perameter:

Model CYEJ-116.117 lady
Control Automatic touch-screen PLC controller
Total pressure 200kg max
Steam 0.4-0.6MPa (18kg/h) 1/2” in
Compress air 0.4-0.6MPa (15L/min) 8mm in
Electric power 220V/1ph/50HZ-60
Vacuum 1.5kw extra vacuum pump 2” x2 in
Drained water 1/2”x2 in
Buck gap 0-50mm set in PLC set
Location pilot Laser light *2
Dimension 1000x1000x2250mm size
Net weight 300kg net



3. Machine's advantage

3.1 ) Vertically press: full surface move down at same time to make pressure equallys

3.2 ) Touch-screen PLC with more functions

       3 level safety protection designs
       buck gap is able to set between 0-50mm in PLCs

3.3 ) steam heating system and steam sprays

3.4 ) with location pilot laser lights

3.5 ) top buck and bottom buck with steam heating chambers

3.6 ) Top steam spray by Japan design valve (steam: dry & huge valume)s

3.7 ) Steam spray: top + bottoms

3.8 ) Vacuum: bottom + tops

3.9 ) top buck with extra heating pipes



extra build-in vacuum unit



4. Machine's application

4.1 ) High class wool jacket blazer front suit final presss

4.2 ) Dark color light fabric jacket blazer font suit final presss

4.3 ) classical jacket blazer font suit final presss

4.4 ) formal jacket blazer font suit final presss



5. Company profile:



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main products:



  1. Fabric shrink / inspect / fuse machineryc
  2. Suits pressing machineryc
  3. Pant machineryc
  4. Shirt machineryc
  5. Jeans machineryc
  6. Knitting machineryc



Any customer could find his satisfied machinery and acceptable price for economical class or high classc.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so onc.





6. Q&A

8.1 —How could I get more informationc?
please contact with E-mail and telephone

8.2 —Do you have another type of machine c
Yes. we have 3 different levels of machine for your reference

8.3 —Do you have any customer factory to seec?
Yes. please contect with us to find close one for you.

8.4 —Do you have machine videoc?

Yes. please contact with us.

8.5 —Are you factoryc?

Yes. We have manufactured for over 20 years.

8.6 —Could I customize machine or buckc

Yes. We could make machine according to your requirement.



7.  Full final suit press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CXAJ-107 Left front pressb 1200x1200x1650
2 CXAJ-108 Right front pressb 1200x1200x1650
3 CXAJ-122 Left back pressb 1200x1200x1650
4 CXAJ-123 Right back pressb 1200x1200x1650
5 CXAJ-126 Double lapelb 900x1200x1650
6 CXEJ-116.117 Double shoulderb 1000x1000x2150
7 CXGJ-547 Collar masterb 1100x1100x2150
8 CZBJ-104 Sleeve frontb 900x1200x1300
9 CZBJ-105 Sleeve elbowb 900x1200x1300
10 CZBJ-114 Sleeve arm-holeb 900x1200x1300
11 CABJ-114-14 Sleeve blockingb 900x1200x1300



8. Photo

Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 0



Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 1



Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 2Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 3Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 4Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 5



Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 6

Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 7Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 8Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 9Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 10Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 11Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 12Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 13Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 14

Lady Blazer Double Shoulder Jacket Pressing Machine Vertical Steam Ironing Equipment 15
