Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZAJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Full Range Trousers Ironing Machine With Mitsubishi PLC Fast High Pressure

Description
Controler: 16programs Touch-sreen PLC 7inch Press: Up To 3,000kg Max
Heat: Steam Heat & Electric Heat Or Both Drive: Dry Compressed Air Cylinder
Electric Power: 220V/1ph/50HZ Certification: ISO9001:2015versions
Garment: Casual Trousers Pant Jeans Part: Waist Topper Part
Steam: Big Volume Adjustable Drain: Trap By Pass
High Light:

PLC Pant Press Machine

,

Full Range Trousers Ironing Machine

,

High Pressure Trousers Ironing Machine

cotton Trousers Pant Steam Pressing Machine touch-Screen Plc Garment Ironing Machine





I. Factory

Full range of garment ironing equipment
Reliable equipment quality
Delivery in time



The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries



There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department.

Our machine has famous spare part like Mitsubishhi, Omron, SCHNEIDER, FOTEK and so on.

The main products include: 1 - suits ironing machine 2 - shirt ironing machine 3 - trouserrs ironing machine.

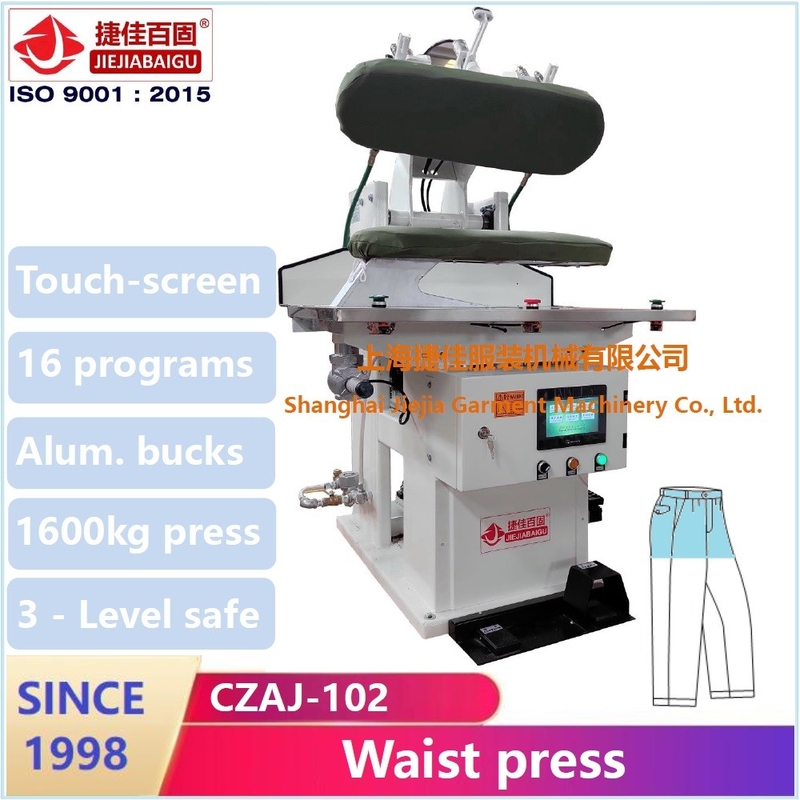

II. Automatic CZAJ Pant press machine

Model CZAJ-102  / CZAJ-102R
Control 16 programs 7" toucch-screen PLC
Total pressure up to 3,000kg max
Steam 0.4-0.6MPa (16-18kg/h) 1/2”
Compress air 0.4-0.6MPa (25L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 0.75kw extra vacuum pump 2” / build-in vacuum unit
Drained water 1/2”
Dimension 900x1200x1350mm
Net weight 420kg





III. Feature

Scissors-type close & high pressure

(up to 3,000kg m)

Metal buck is suitable for casual pant / trousers

(customizable & optional)

waist buck has 6 types of differnt choices design

Supper high pressure upto 1,600kg

Automatic LED  PLC or 7" Touch-screen PLC

3 level safety protection device

180mm length shock absorber (long life design)

Steam heating system or electric plus

Top buck steam spray

High volume Japon type steam valve

(steam chamber supply much volume)

Bottom buck has vacuum

Famous pneumatic parts

optional device: vacuum pump / steam genreator / compressor

optional device: bottom buck with steam spray



** 6 TYPES OF BUCK FOR DIFFERENT POPOSE.





IV. Full pant press machine



NO. Model Description of machineg Dimension: L x W x H mm
1 CZBJ-137 Seat seamg 900x1200x1300
2 CZCJ-136 Pocketg 900x900x1650
3 CZAJ-666 Legger stretchg 1200x1200x1350
4 CZAJ-119 High pressure side seamg 1200x1200x1350
5 CZBJ-119 Side seamg 1200x1200x1300
6 CZBJ-102 Topperg 900x1200x1300
7 CZAJ-102 High pressure topperg 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topperg 900x1200x1350
9 CZBJ-101 Leggerg 1200x1200x1300
10 CZAJ-101 High pressure leggerg 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure leggerg 1200x1200x1350
12 CYAJ-101 Vertical press leggerg 1200x1200x1650
13 CYAJ-101S Vertical press double leggerg 3000x1600x1650






Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developsd 5 series of main product:



  1. Fabrics shrink / inspect / fuse machinery
  2. Suitss pressing machinery
  3. Pants machinery
  4. Shirts machinery
  5. Jeans machinery
  6. Knittings machinery
  7. t-shirts / sweaters



Any customer could find his satisfiied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================
