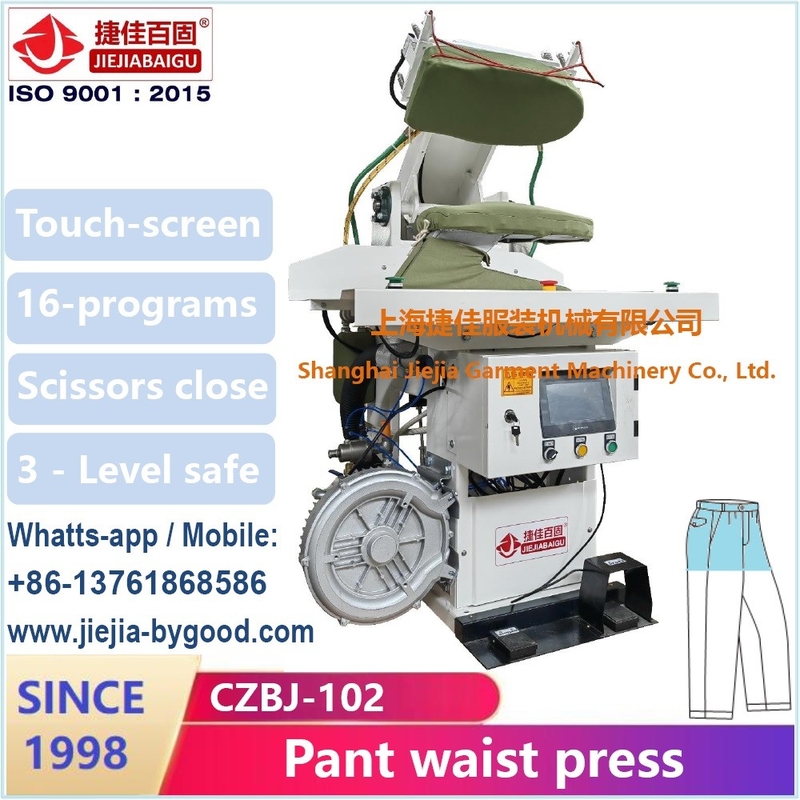

Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System

Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System
Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System
Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System

Large Image :  Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System

Product Details:
Place of Origin: CHINA, SHANGHAI
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZBJ-102
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day

Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System

Description
Buck Move: Cylinder Press: FAST Pressure
Heat: Steam Chamber Cool: Suction
Vacuum: Build-in Vacuum Pump Buck Material: Aluminium
Safety: 3 Level Design Buck Number: 2 Bucks
High Light:

Wrinkle Free Pant Press Machine

,

Waist Clamp Stretch Trouser Pressing Machine

,

Steam Heating System Trouser Pressing Machine

Trousers pant waist topper Press Machine for wrinkle free seam sealing steam heating system waist clamp stretch Shanghai Jiejiabaigu





I. Factory

The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries

Our company has passed is090001-2015 quality system certification.

There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers ironing machine.



II. Automatic CZAJ series press machine (legger)

Model CZBJ-102
Control 7" touch-screen PLC / Automatic LED PLC (8 programs)
  Optional: touch-screen PLC (16 programs)
Buck name waist / top
Buck material Alumninum
Total pressure 1,600kg
Heat method Steam chamber
  Optional electric heating
Steam spray Top buck, bottom buck, or both
Vacuum Bottom buck, top buck, or both
  Standard: 2” vacuum pipe system
  Optional 1: 1.5kw 220V build-in vacuum pump
  Optional 2: 0.75kw 380V build-in vacuum pump
Steam 0.4-0.6MPa (18kg/h) / (15kg/h)
  Standard: 1/2” pipe
  Optional: build-in steam boiler 12kw 380V
  Spray by Japan design big volume steam
Compress air 0.4-0.6MPa (15L/min)
  Standard: 8mm pipe
  Optional: build-in air compressor 1.5kw 220V
Electric power

220V/1ph/50hz, 0.1kw

220V/1ph/50hz, 1.6kw (with build-in vacuum pump)

380V/1PH/50hz, 0,85kw (with build-in vacuum pump)

Drained water 1/2”
Dimension 900x1200x1350mm
Safety 3 levels
Net weight 420kg
Package Wooden case



III. Feature

3.1 Scissors-type close & level press

High pressure 2,600kg / 1,600kg

3.2 Metal buck is suitable for garment

(customizable)

3.3 Automatic LED controller (8 programs)

(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)

3.4 (3) level safety protection device

3.5 Input & output signal

(easy to check faulty)

3,6 180mm length shock absorber (long life)

Optional air shock absorber system

3.7 Stainless steel board

Optional painted metal board

3.8 Steam heating system (top + bottom)

3.9 Top buck steam spray

(steam chamber supply much volume)

3.10 Bottom buck has vacuum

3.11 Famous pneumatic parts

3.12 suitable for: pant / trousers

3.13 ironing part: waist / topper

3.14 extra device: waist stretch down device, improve efficiency



IV. Full pant trousers press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-136 Pocket press 900x1200x1300
2 CZBJ-137 Seat seam press 900x1200x1300
3 CZAJ-666 Legger stretch press 1200x1200x1350
4 CZBJ-119 Side seam press 1200x1200x1300
  CZAJ-119 --Dual cylinder 1200x1200x1300
5 CZBJ-102 Waist press 900x1200x1300
  CZAJ-102 --Dual cylinder 900x1200x1350
  CZAJ-102R --Dual cylinder & electric heat 900x1200x1350
6 CZBJ-101 Legger press 1200x1200x1300
7 CZAJ-101 --Dual cylinder 1200x1200x1350
8 CZAJ-101R --Dual cylinder & electric heat 1200x1200x1350
9 CYAJ-101 --vertical press 1200x1200x1650
10 CYAJ-101S Double legger press 3000x1600x1350






V. Production range of machinery:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. T-shirt / Sweater pressing machine
  7. Non-sewing seam seal press



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



VI. Q&A

1.How could I get more information? please contact with: barclay_yang@163.com

2. Do you have another type of machine ? Yes. we have 3 different levels of machine for your reference

3. Do you have any customer factory to see? Yes. please contect with us to find close one for you.

4. Do you have machine video? Yes. please contact with us.

5. Are you factory? Yes. We have manufactured for over 20 years.



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.

Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 0



Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 1



2. Automatic suit jacket press machine (double lapel)

Model CZAJ-102C
Control Automatic touch-screen PLC / LED PLC
Total pressure 2600kg
Buck heating Electric heat
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 0.75kw extra vacuum pump 2”
Drained water 1/2”
Dimension 900x1200x1350mm
Net weight 420kg







3. Feature

Scissors-type close & supper strong press

pressure: 1600-2600kg

Metal buck is suitable for garment

(customizable)

Automatic Touch-screen PLC

- bucks gap is adjustable in PLC

- pressure is adjustable in PLC

- steam spray optional: top, bottom or both

- vacuum optional: top, bottom or both

3 level safety protection device

(easy to check faulty)

Steam heating system

Top buck steam spray + vacuum

(steam chamber supply much volume)

Bottom buck has vacuum + steam spray

Famous pneumatic parts



Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 2





Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 3



Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 4Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 5Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 6Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 7Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 8



4Machine list of Shirt final press





Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed different product:



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-136 Pocket press 900x1200x1300
2 CZBJ-137 Seat seam press 900x1200x1300
3 CZAJ-666 Legger stretch press 1200x1200x1350
4 CZBJ-119 Side seam press 1200x1200x1300
  CZAJ-119 --Dual cylinder 1200x1200x1300
5 CZBJ-102 Waist press 900x1200x1300
  CZAJ-102 --Dual cylinder 900x1200x1350
  CZAJ-102R --Dual cylinder & electric heat 900x1200x1350
6 CZBJ-101 Legger press 1200x1200x1300
7 CZAJ-101 --Dual cylinder 1200x1200x1350
8 CZAJ-101R --Dual cylinder & electric heat 1200x1200x1350
9 CYAJ-101 --vertical press 1200x1200x1650
10 CYAJ-101S Double legger press 3000x1600x1350



Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 9





5. Factory product range



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.




=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction

6. Question & Answer



1.Q

How could I get more information about your equipment & factory
A Please contact with our E-mail or local agent.
2.Q Do you have another type of equipment?
A Yes. We have 3 different levels of equipment for your reference
3.Q Do you have any customer factory to see?
A Yes. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Yes. Please contact with us.
5.Q Are you factory?
A Yes. We started to manufacture on 1995
6.Q Our garment is export to different countries. Do you have suitable buck?
A Yes. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Yes. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Yes. We have all.
9.Q Could you supply OEM product?
A Yes. We are supplying OEM equipment for Italy, English, American customer.
10.Q Could you supply with demo equipment e?
  We could supply with demo equipment with some cost.


7. Factory and supporting processing equipment

Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 10   Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 11



Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 12   Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 13



Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 14   Waist Clamp Stretch Trouser Pressing Machine For Wrinkle Free Steam Heating System 15
