Product Details:
|
| Control: | 7" Touch-sreen PLC Auto Controller | Press: | 750kg Max Press |
|---|---|---|---|
| Heat: | Steam Or Steam+electric | Drive: | Compress Air / Cylinders X2 |
| Electric Power: | 220V/1ph/50HZ / 380V | Certification: | ISO9001:2015 |
| Buck: | Waist Standard | Buck Material: | Aluminium Mix |
| Steam: | Big Volume Spray Japan Type | Vacuum: | 2" Pipe System Center Supply |
| High Light: | Vacuum Trouser Pressing Machine,Professional Trouser Pressing Machine,Steam Trouser Pressing Machine |
||
Automatic Industrial Garment Ironing Machine Steam Press For waist topper trousers press machine vacuum pump
This steam pressing machine is perfect machine forr hotels, classic pant factory / laundry factory, health care center to do ironing job of clothes
This steam press is used for shaped-fixed and ironing processing for trousers waist topper which made of woool, synthetic fibric, it is easy in maintance and adaptable to medium and small-size garment manufactures.
Both the top mold and bottom mold is vacuum and heated by steam system.
The machine can be operated manually or automatic that the air operated automatic steam press.
I. Factory
The company established a production base in Shanghai in 1998, with more than 24 years of clothing ironing equipment design, research and development, experience
Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries
Our company has passed is090001-2015 quality system certification.

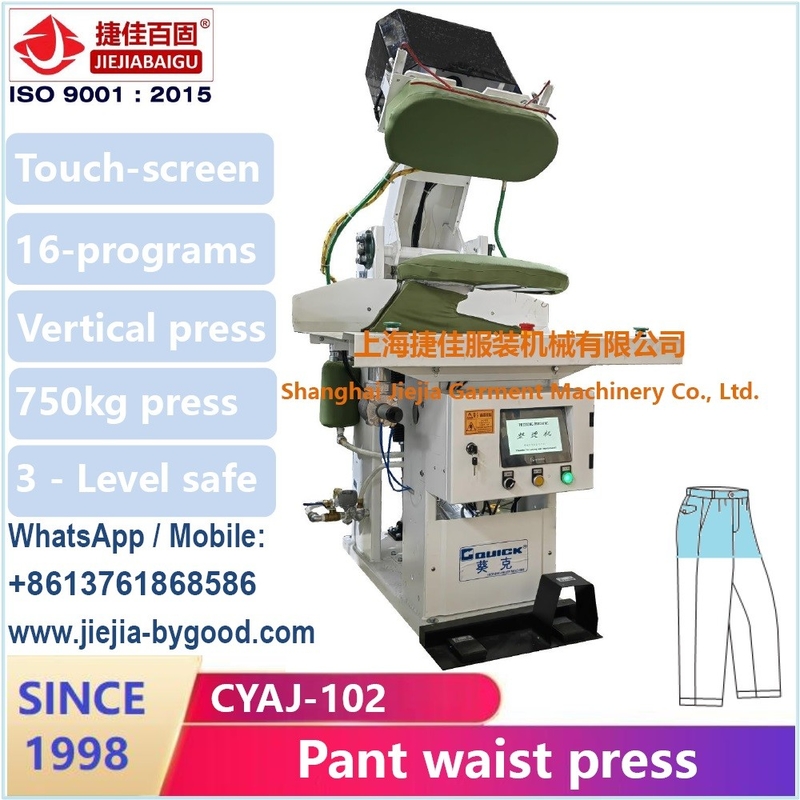

II. Automatic Pant press machine
| Model | CYAJ-102 |
| Control | Touch-screen PLC controller 7" |
| Optional: touch-screen PLC (16 programs) | |
| Buck name | waist / topper |
| Buck material | aluminium |
| Total pressure | 750kg |
| Heat method | Steam chamber |
| Optional electric heating | |
| Steam spray | Top buck, bottom buck, or both |
| Vacuum | Bottom buck, top buck, or both |
| Standard: 2” vacuum pipe systems | |
| Optional 1: 1.1kw 220V build-in vacuum pumpa | |
| Optional 2: 0.75kw 380V build-in vacuum pumpa | |
| Steam | 0.4-0.6MPa (15kg/h) |
| Standard: 1/2” pipe | |
| Optional: build-in steam boiler 12kw 380V | |
| Spray by Japan design big volume steams | |
| Compress air | 0.4-0.6MPa (15L/min) |
| Standard: 8mm pipes | |
| Optional: build-in air compressor 1.5kw 220Vs | |
| Electric power |
220V/1ph/50hz, 0.1kw 220V/1ph/50hz, 1.2kw (with build-in vacuum pumpa) 380V/1PH/50hz, 0,85kw (with build-in vacuum pumpa) |
| Drained water | 1/2” |
| Dimension | 900x1200x1650mmz |
| Safety | 3 levelzs |
| Net weight | 420kg |
| Package | Wooden casez |
III. Feature
3.1 Scissors-type close & vertical press
High pressure 750kg max
3.2 Aluminium buck is suitable for garment
(6 different types of bucks for optioanl , or customizable)
3.3 Automatic LED controller (8 programs)
(set: close, press, steam, vacuum)
optional touch-screen PLC (16 programs)
3.4 (3) level safety protection device
3.5 Input & output signal
(easy to check faulty)
3,6 air shock absorber (long life)
Optional air shock absorber system
3.7 Stainless steel board
Optional painted metal board
3.8 Steam heating system (top + bottom)
3.9 Top buck steam spray
(steam chamber supply much volume)
Japan type steam valve
3.10 Bottom buck has vacuum
3.11 best quality pneumatic parts
IV. Full pant press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-137 | Seat seams | 900x1200x1300 |
| 2 | CZCJ-136 | Pockert | 900x900x1650 |
| 3 | CZAJ-666 | Legger stretchs | 1200x1200x1350 |
| 4 | CZAJ-119 | High pressure side seams | 1200x1200x1350 |
| 5 | CZBJ-119 | Side seams | 1200x1200x1300 |
| 6 | CZBJ-102 | Toppers | 900x1200x1300 |
| 7 | CZAJ-102 | High pressure toppers | 900x1200x1350 |
| 8 | CZAJ-102R | Electric-heat high pressure toper | 900x1200x1350 |
| 9 | CZBJ-101 | Leger | 1200x1200x1300 |
| 10 | CZAJ-101 | High pressure legger | 1200x1200x1350 |
| 11 | CZAJ-101R | Electric-heat high pressure leger | 1200x1200x1350 |
| 12 | CYAJ-101 | Vertical press leger | 1200x1200x1650 |
| 13 | CYAJ-101S | Vertical press double leger | 3000x1600x1650 |
V. Q & A
| 1.Q | How could I get more information |
| A | Please contact with our E-mail or local agent also. |
| 2.Q | Do you have another type of machine? |
| A | Yes. We have 3 different levels of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Yes. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Yes. Please contact with us. |
| 5.Q | Are you factory? |
| A | Yes. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable buck? |
| A | Yes. We have different types of buck series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Yes. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Yes. We have all. |
| 9.Q | Could you supply OEM product? |
| A | Yes. We are supplying OEM machine for Italy, English, American customer. |
| 10.Q | Could you supply with demo machine? |
| A | We could supply with demo machine with some cost. |
