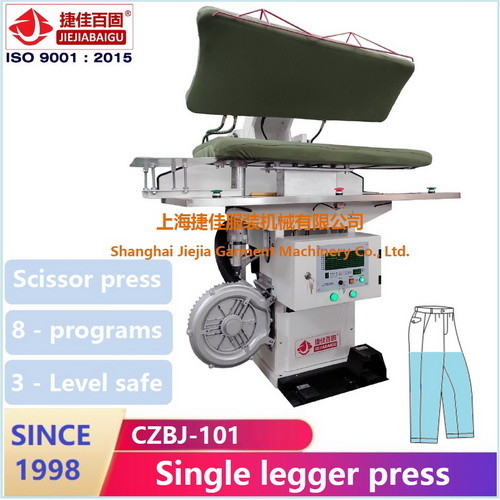

Steam Industrial Trouser Pressing Machine LEGGER

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Steam Industrial Trouser Pressing Machine LEGGER

Steam Industrial Trouser Pressing Machine LEGGER
Steam Industrial Trouser Pressing Machine LEGGER
Steam Industrial Trouser Pressing Machine LEGGER Steam Industrial Trouser Pressing Machine LEGGER

Large Image :  Steam Industrial Trouser Pressing Machine LEGGER

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZBJ
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

Steam Industrial Trouser Pressing Machine LEGGER

Description
Control: LED PLC / Touch-sreen PLC Press: Scissors
Heat: Steam Drive: Compressed Air / Cylinder
Electric Power: 220V/1ph/50HZ Certification: ISO9001:2015

CZAJ pant trousers sewing line Auto-PLC press machine LEGGER Shanghai Jiejiabaigu



This steam press is perfect machine forr hotels, classic laundry shop, health care center to do ironing job of clothes

This steam press is used for shaped-fixed and ironing processing for suits, the trousers' legs and rousers which made of woool, synthetic fibric, it is easy in maintance and adaptable to medium and small-size garment manufactures.

Both the top mold and bottom mold is vacuum and heated by steam.

The machine can be operated manually or automatic that the air operated automatic steam press.



I. Factory

Factory since: 1998

Full range of garment ironing equipment

Reliable equipment quality

Delivery in time



II. Automatic Pant press machine (LEGGER)

Model CZAJ-101
Control Automatic LED PLC / touch-screen PLC
Total pressure 200kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 0.75kw extra vacuum pump 2”
Drained water 1/2”
Dimension 900x1200x1650mm
Net weight 320kg



Steam Industrial Trouser Pressing Machine LEGGER 0



III. Feature

Scissors-type close & press

Metal buck is suitable for garment

(customizable)

Automatic LED  PLC / Touch-screen PLC

3 level safety protection device

180mm length shock absorber (long life)

Steam heating system

Top buck steam spray

Italy steam valve

(steam chamber supply much volume)

Bottom buck has vacuum

Famous pneumatic parts



Steam Industrial Trouser Pressing Machine LEGGER 1

Steam Industrial Trouser Pressing Machine LEGGER 2

Steam Industrial Trouser Pressing Machine LEGGER 3





IV. Full pant press machine



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-137 Seat seam 900x1200x1300
2 CZCJ-136 Pocket 900x900x1650
3 CZAJ-666 Legger stretch 1200x1200x1350
4 CZAJ-119 High pressure side seam 1200x1200x1350
5 CZBJ-119 Side seam 1200x1200x1300
6 CZBJ-102 Topper 900x1200x1300
7 CZAJ-102 High pressure topper 900x1200x1350
8 CZAJ-102R Electric-heat high pressure topper 900x1200x1350
9 CZBJ-101 Legger 1200x1200x1300
10 CZAJ-101 High pressure legger 1200x1200x1350
11 CZAJ-101R Electric-heat high pressure legger 1200x1200x1350
12 CYAJ-101 Vertical press legger 1200x1200x1650
13 CYAJ-101S Vertical press double legger 3000x1600x1650
14 VTH-288A Pant blowing machine / dummy 500x1200x2000



Steam Industrial Trouser Pressing Machine LEGGER 4

Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:



  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================
