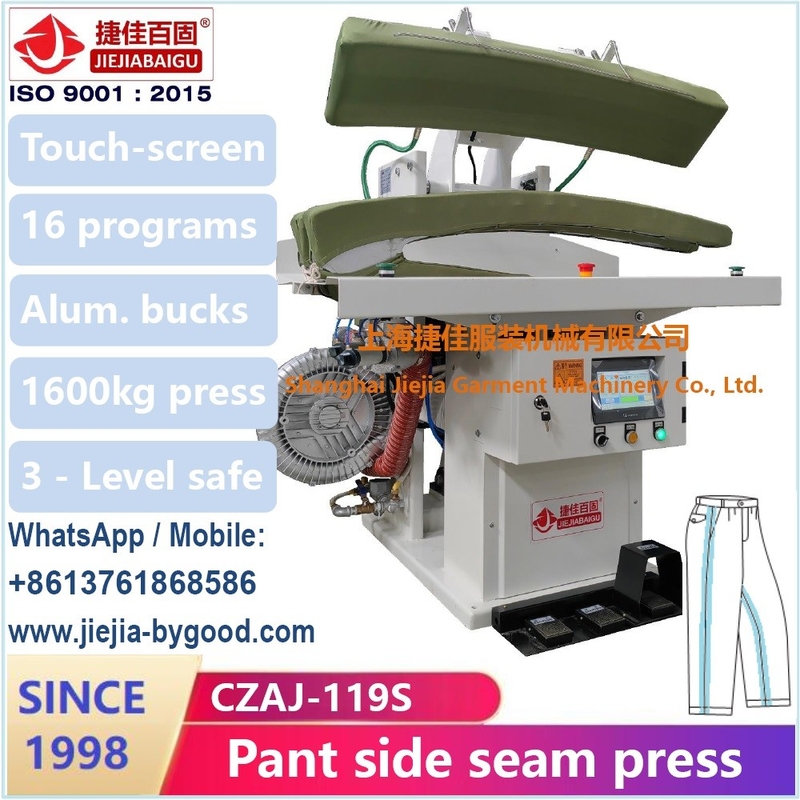

Automatic steam press machine trousers side seam ironing garment pressing machine

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

Automatic steam press machine trousers side seam ironing garment pressing machine

Automatic steam press machine trousers side seam ironing garment pressing machine
Automatic steam press machine trousers side seam ironing garment pressing machine
Automatic steam press machine trousers side seam ironing garment pressing machine Automatic steam press machine trousers side seam ironing garment pressing machine

Large Image :  Automatic steam press machine trousers side seam ironing garment pressing machine

Product Details:
Place of Origin: Shanghai China
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CZAJ-119S
Payment & Shipping Terms:
Minimum Order Quantity: 2 SETS
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 20 units per month

Automatic steam press machine trousers side seam ironing garment pressing machine

Description
Control: Touch-sreen PLC Press: Dual Cylinder
Heat: Steam Drive: Compressed Air / Cylinder
Electric Power: 220V/1ph/50HZ Certification: ISO9001:2015
Buck: Side Seam Work Method: Heavy Duty

Touch screen suit dress press machine equipment vertical press lapel Shanghai Jiejiabaigu



I. Factory information
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time


II. Automatic suit jacket press machine (double lapel)

Model CZAJ-119S
Control Automatic touch-screen PLC
Total pressure 1600kg
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (15L/min) 8mm
Electric power 220V/1ph/50HZ
Vacuum 0.75kw extra vacuum pump 2”
Drained water 1/2”
Dimension 1200x1200x1350mm
Net weight 420kg




III. Feature

Scissors-type close & supper strong press

pressure: 1600-2600kg

Metal buck is suitable for garment

(customizable)

Automatic Touch-screen PLC

- bucks gap is adjustable in PLC

- pressure is adjustable in PLC

- steam spray optional: top, bottom or both

- vacuum optional: top, bottom or both

3 level safety protection device

(easy to check faulty)

180mm length shock absorber (long life)

Steam heating system

Top buck steam spray + vacuum

(steam chamber supply much volume)

Bottom buck has vacuum + steam spray

Famous pneumatic parts







IV. Full pant trousers press machine




Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed different product:



NO. Model Description of machine Dimension: L x W x H mm
1 CZBJ-136 Pocket press 900x1200x1300
2 CZBJ-137 Seat seam press 900x1200x1300
3 CZAJ-666 Legger stretch press 1200x1200x1350
4 CZBJ-119 Side seam press 1200x1200x1300
  CZAJ-119 --Dual cylinder 1200x1200x1300
5 CZBJ-102 Waist press 900x1200x1300
  CZAJ-102 --Dual cylinder 900x1200x1350
  CZAJ-102R --Dual cylinder & electric heat 900x1200x1350
6 CZBJ-101 Legger press 1200x1200x1300
7 CZAJ-101 --Dual cylinder 1200x1200x1350
8 CZAJ-101R --Dual cylinder & electric heat 1200x1200x1350
9 CYAJ-101 --vertical press 1200x1200x1650
10 CYAJ-101S Double legger press 3000x1600x1350





  1. Fabric shrink / inspect / fuse machinery
  2. Suits pressing machinery
  3. Pant machinery
  4. Shirt machinery
  5. Jeans machinery
  6. Knitting machinery



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1.Q How could I get more information
A Please contact with our E-mail or local agent.
2.Q Do you have another type of machine?
A Sure. We have 3 different levels of machine for your reference
3.Q Do you have any customer factory to see?
A Sure. Please contact with us to find close one for you.
4.Q Do you have machine video?
A Sure. Please contact with us.
5.Q Are you factory?
A Sure. We started to manufacture on 1995
6.Q Our garment is export to different countries. Do you have suitable buck?
A Sure. We have different types of buck series for your reference.
7.Q Our factory production is not much, could I have some suggestion?
A Sure. We have double buck machine for small production factory.
8.Q Do you have English manual and installation instruction?
A Sure s. We have all.
9.Q Could you supply OEM product?
A Sure. We are supplying OEM machine for Italy, English, American customer.
10.Q Could you supply with demo machine?
  We could supply with demo machine with some cost.



=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
