Product Details:
|
| Control: | MANUAL | Press: | MECHANICAL |
|---|---|---|---|
| Heat: | Steam | Drive: | Hand And Foot |
| Buck: | Universal | Vacuum: | Build-in |
| Safety: | 3 Level | OEM: | Yes |
| Highlight: | Dry clean press machine,Clothes Steam Press Machine,Laundry Wet Press |
||
Steam heat high pressure stainless steel buck press machine for dry clean press machine
1. Instructions:
CZAJ-1040R is used to bonding press underware non-sewing seam underware bonding press.
It has high pressure and temperature setting for different requirement
2. Automatic underware bonding press
| Model | CZBJ-109 |
| Control | sEMI Automatic LED PLC / touch-screen PLC |
| Total pressure | 600kg |
| Buck size | 1000x350mm |
| Compress air | 0.4-0.6MPa (25L/min) 8mm |
| Electric power | 380V/3ph/50HZ, 6.1KW |
| Vacuum | 0.75kw build-in vacuum unit |
| total pressure | 600kg |
| Dimension | 1200x1200x1350mm |
| Net weight | 370kg |
3. Machine's advantage points
3.1 / scissor close and lever amplification pressure
3.2 / LED controller or Touch-screen PLC controller with more function
3 level safety protection design for more safe
output and input signal, for easy check fault
3.3 / Advanced 180mm length shock absorber (long life use design)
3.4 / top buck with electric heating
3.5 / top buck with telfon cover
3.6 / bottom buck with vacuum (supper strong)
3.7 / build-in vacuum unit
3.8 / Vacuum: step-run, release-stop (save energy)
3.9 / emergency stop
4. Machine's application
4.1 / underware bonding press
4.2 / non-sewing seam press
4.3 / wrinkle free seam press
4.4 / sportward bonding press

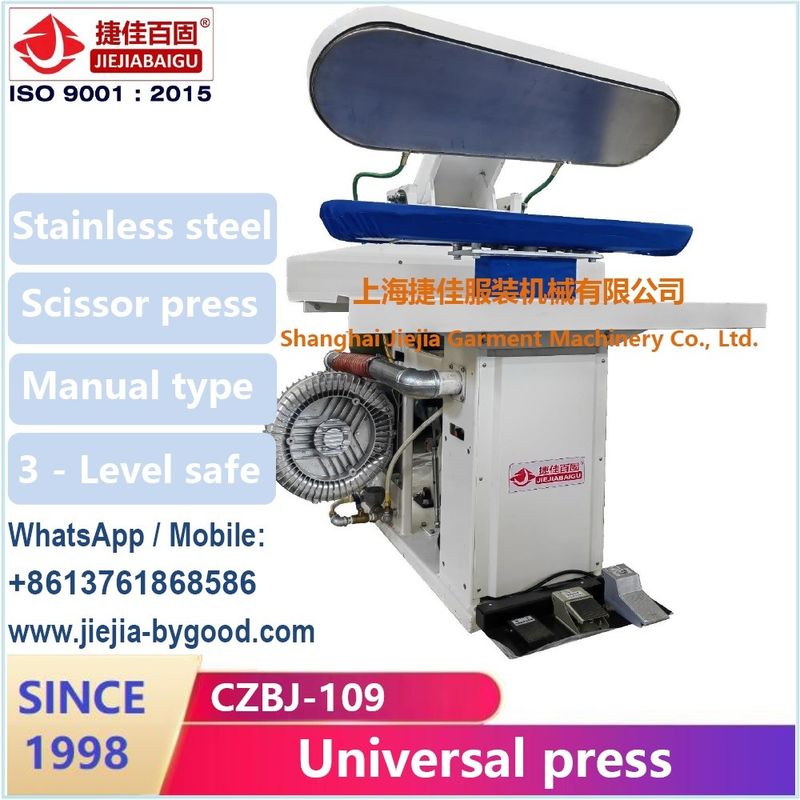

5. Machine's picture
6. Question & Answer
|
1.Q |
How could I get more information |
|
A |
Please contact with our E-mail or local agent. |
|
2.Q |
Do you have another type of machine? |
|
A |
Sure. We have 3 different levels of machine for your reference |
|
3.Q |
Do you have any customer factory to see? |
|
A |
Sure. Please contact with us to find close one for you. |
|
4.Q |
Do you have machine video? |
|
A |
Sure. Please contact with us. |
|
5.Q |
Are you factory? |
|
A |
Sure. We started to manufacture on 1995 |
|
6.Q |
Our garment is export to different countries. Do you have suitable buck? |
|
A |
Sure. We have different types of buck series for your reference. |
|
7.Q |
Our factory production is not much, could I have some suggestion? |
|
A |
Sure. We have double buck machine for small production factory. |
|
8.Q |
Do you have English manual and installation instruction? |
|
A |
Sure s. We have all. |
|
9.Q |
Could you supply OEM product? |
|
A |
Sure. We are supplying OEM machine for Italy, English, American customer. |
|
10.Q |
Could you supply with demo machine? |
|
|
We could supply with demo machine with some cost. |
