Product Details:
|
| Garment Type: | Jacket Blazer | Machine Type: | Pressing Ironing Machine |
|---|---|---|---|
| Press Type: | Vertical Press | Garment Area: | Left Front |
| Control: | Touch Screen PLC | Heating Type: | Steam |
| Location: | Laser Pilot Optional | Usage: | Garment Pressing |
| Size: | 1200x1200x1800mm | Steam Spray: | Big Volume Adjustable |
| Suitable For: | Dress Suit Jacket Front And Edge | Location Lazer: | Optional Or 2 Pieces |
| Garment: | Suit Interline | Frequency: | 50Hz |
| Part: | Edege Lapel | Material: | Stainless Steel |
| Pressure: | 100 ~ 750kg | Color: | Silver |
| Air: | 0.4-0.6MPa | Steam: | High Volume Spray |
| Power: | 100W |
Jacket blazer steam automatic garment press machine vertical press front touch screen
Shanghai Jiejiabaigu Factory 1998 Full Range Garment Ironing Machine lady dress front
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic suit jacket press machine (sleeve elbow seam)
| Model | CYAJ-107 / CYAJ-108 |
| Control | Automatic LED PLC / touch-screen PLC |
| Total pressure | upto 750kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (20L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 1200x1200x1800mm |
| Net weight | 470kg |
III. Feature
Scissors-type close & vertical pressn
Aluminum buck is suitable for lady dress
(customizable)n
Automatic LED PLC / Touch-screen PLC
-16 programs
-MITSUBISHI PLC
-touch-screen 7"n
3 level safety protection device
Steam heating systemn
-steam cheamber
-stainless steel pipen
Top buck steam spray
big volume (adjustable) steam valven
Bottom buck has vacuumn
pressure is adjustable
pressing down distance is adjustablen
Famous pneumatic partsn
IV. Full inline suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CZBJ-105 | sleeve front seam | 900x1200x1300 |
| 2 | CZBJ-104 | sleeve elbow seam | 900x1200x1300 |
| 3 | CYAJ-107 | Left front | 1200x1200x1800 |

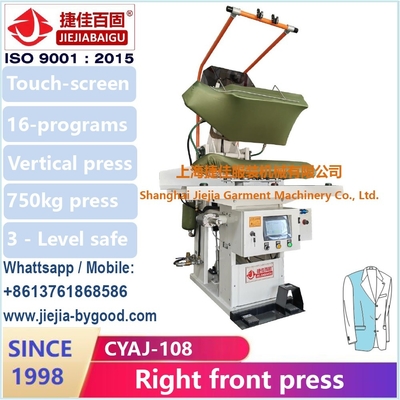

| 4 | CYAJ-108 | Right front | 1200x1200x1800 |

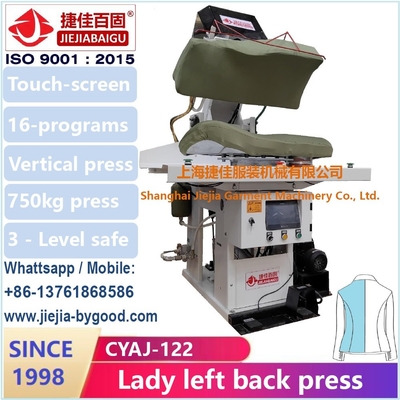

| 5 | CYAJ-122 | Left back | 1200x1200x1800 |

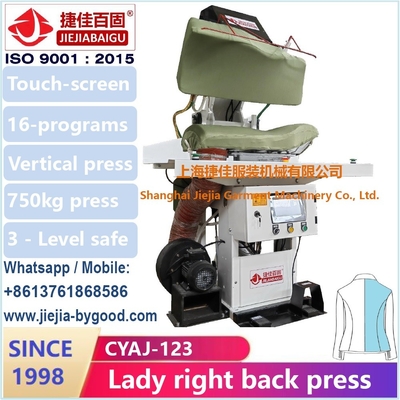

| 6 | CYAJ-123 | Right back | 1200x1200x1800 |
| 7 | CYEJ-116.117 | Double shoulder | 1000x1100x2050 |
| 8 | CYGJ-547 | Collar master | 1100x1100x2050 |
| 9 | CZBJ-114 | Sleeve blocking | 900x1200x1300 |
| 10 | CZBJ-114-14 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CYAJ-126 | Double lapel | 900x1200x1650 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
Add: No. 2759 Shendu Road, Shanghai, China 201112
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
Auto press machine for suit jacket uniform interlining steam ironing equipment with vacuum suction
