Highlight:

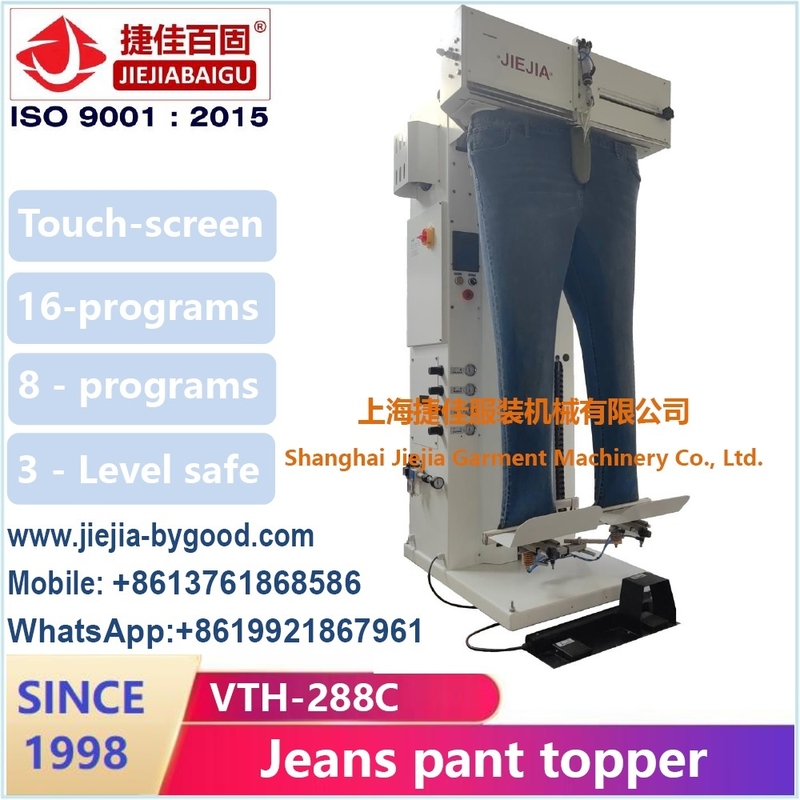

Jeans blowing machine topper dummy ironing machine
Jeans blowing machine topper dummy ironing machine
1, Available to press any special parts of cloth.
2, With strong blowing moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...
6, suitable for all kinds of trousers of commercial laundry
I. Factory
Factory since: 1998
Full range of garment ironing equipment
Reliable equipment quality
Delivery in time
II. Automatic commercial laundry trousers pant blowing machine
| Model |
VTH-288C |
| Control |
Automatic LCD PLC |
| Total pressure |
air blowing expend |
| Steam |
0.4-0.6MPa (18kg/h) 1/2” |
| Compress air |
0.4-0.6MPa (40L/min) 8mm |
| Electric power |
220V/1ph/50HZ 380V |
| Blowing |
0.75kw fan |
| Drained water |
1/2” |
| Dimension |
730x1100x1880mm |
| Net weight |
210kg |
III. Feature
waist band size is suitable for mainly size
lenght of pant is automatically adjusted
bottom is clipped by automatic device
pocket is pressed by special device
blowing volume is adjustable
program is selectable from 8
steam, steam + hot air, air
heating system is by steam exchanger
steam sprays with big volume
stainless steel spare parts
Famous pneumatic parts
IV. Full jeans ironing & pressing machine
| NO. |
Model |
Description of machine |
Dimension: L x W x H mm |
| 1 |
VTH-288C |
jeans blowing machine |
730x1100x1880 |
| 2 |
VTH-880 |
3-D wrinkle machine |
1250x700x1700 |
| 3 |
VTH-980 |
jeans grinding machine |
1620x1600x1450 |
| 4 |
CZAJ-101R |
Legger press |
1200x1200x1350 |
| 5 |
CZAJ-102R |
Waist & topper press |
900x1200x1300 |
| 6 |
FKJ-6 |
pant turning machine |
1420x820x1750 |
| 7 |
VTH-300L |
vertical jeans 3-D wrinkle |
850x850x2100 |
| 8 |
YSJ-200R |
jeans shrinking machine |
3120x2800x1115 |
| 9 |
VT-011 |
horizontal grinding machine |
1620x1600x1450 |
| 10 |
VTH-288A |
Pant blowing machine |
500x1200x2000 |
| 11 |
GB-88 |
Spotting table |
1050x460x900 |
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main laundry product:
- washing machine
- washing & extracting machine
- dryer
- dry washing machine
- bed-sheet ironing machine
- bed-sheet folding machine
- towel folding machine
- laundry ironing machine
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
V. Q&A
1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
3. Do you have machine video?
Yes. please contact with us.
4. Are you factory?
Yes. We have manufactured for over 20 years.
=========================================
