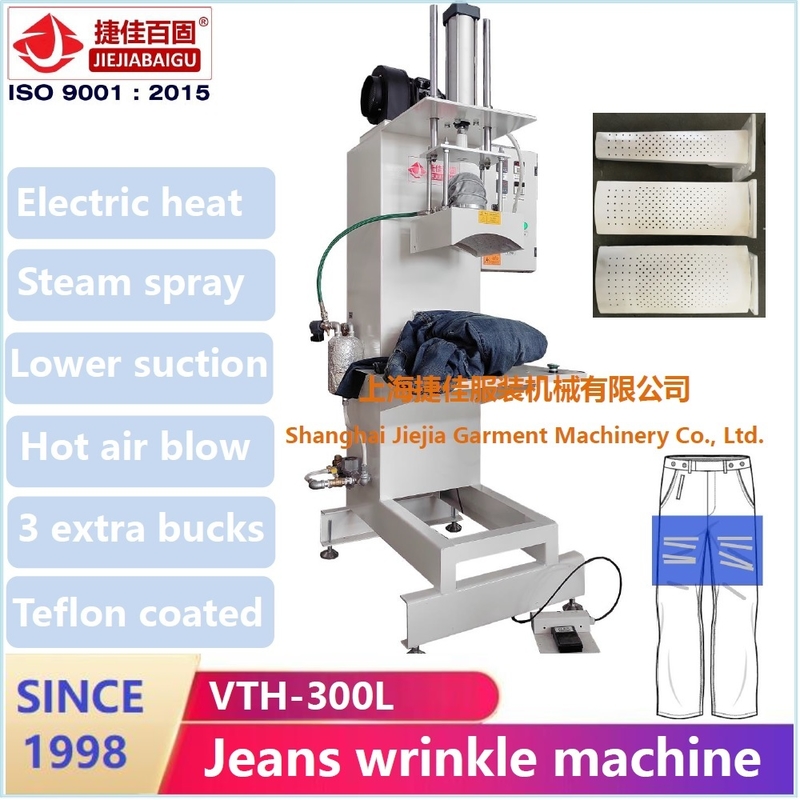

Automatic jeans wrinkle machine electric heat hot air blowing

Product Details

Place of Origin: Shanghai China

Brand Name: JIEJIABAIGU

Certification: ISO9001:2015

Model Number: VT-300L

Payment & Shipping Terms

Minimum Order Quantity: 2 SETS

Price: price is negotiable

Packaging Details: wooden case

Delivery Time: 7-15 works day

Supply Ability: 20 units per month

Get Best Price
Contact Now
Specifications
Highlight:
Control:
Touch-sreen LCD PLC
Press:
Vertical Blow
Heat:
Steam Exchanger
Drive:
Compressed Air Cylinder & Motor
Electric Power:
220V/1ph/50HZ 380V
Certification:
ISO9001:2015 VER
Suitable:
Laundry Pant
Pocket:
Press
Ironing:
Hot Air Blowing
Foot:
Clip Device
Control:
Touch-sreen LCD PLC
Press:
Vertical Blow
Heat:
Steam Exchanger
Drive:
Compressed Air Cylinder & Motor
Electric Power:
220V/1ph/50HZ 380V
Certification:
ISO9001:2015 VER
Suitable:
Laundry Pant
Pocket:
Press
Ironing:
Hot Air Blowing
Foot:
Clip Device
Description
Automatic jeans wrinkle machine electric heat hot air blowing

Automatic jeans wrinkle machine electric heat hot air blowing



1, Available to press any special parts of cloth.
2, With strong blowing moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...

6, suitable for all kinds of trousers of commercial laundry



I. Factory

Factory since: 1998

Full range of garment ironing equipment

Reliable equipment quality

Delivery in time



II. Automatic commercial laundry trousers pant blowing machine

Model VT-300L
Control Automatic LCD PLC
Total pressure air blowing expend
Steam 0.4-0.6MPa (18kg/h) 1/2”
Compress air 0.4-0.6MPa (40L/min) 8mm
Electric power  380V 3ph 50hz
Blowing 2.2 kw fan
Drained water 1/2”
Dimension 850x850x2100mm
Net weight 210kg





III. Feature

VT-300L
Jeans wrinkle machine
Automatic program
top buck electric heat
top buck steam spray
top buck hot air blowing
bottom buck vacuum
build-in pump
3 different sizes for different size jeans





IV. Full jeans ironing & pressing machine



NO. Model Description of machine Dimension: L x W x H mm
1 VTH-288C jeans blowing machine 730x1100x1880
2 VTH-880 3-D wrinkle machine 1250x700x1700
3 VTH-980 jeans grinding machine 1620x1600x1450
4 CZAJ-101R Legger press 1200x1200x1350
5 CZAJ-102R Waist & topper press 900x1200x1300
6 FKJ-6 pant turning machine 1420x820x1750
7 VTH-300L vertical jeans 3-D wrinkle 850x850x2100
8 YSJ-200R jeans shrinking machine 3120x2800x1115
9 VT-011 horizontal grinding machine 1620x1600x1450
10 VTH-288A Pant blowing machine 500x1200x2000
11 GB-88 Spotting table 1050x460x900



Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main laundry product:



  1. washing machine
  2. washing & extracting machine
  3. dryer
  4. dry washing machine
  5. bed-sheet ironing machine
  6. bed-sheet folding machine
  7. towel folding machine
  8. laundry ironing machine



Any customer could find his satisfied machinery and acceptable price for economical class or high class.



Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.



V. Q&A

1. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

2. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

3. Do you have machine video?

Yes. please contact with us.

4. Are you factory?

Yes. We have manufactured for over 20 years.





=========================================
