Product Details:
|
| Control: | Touch-sreen PLC | Press: | Vertical |
|---|---|---|---|
| Heat: | Steam | Drive: | Compressed Air / Cylinder |
| Location: | Laser Pilot * 4 Pieces | Buck: | Double Back |
| Buck Gap: | 0 To 50 Mm Adjust In PLC | Steam Spray: | Japan Design Valve And Italy Valve |
| High Light: | 300w cloth steam press,220v cloth steam press,ISO9001 automatic press for clothes |
||
Touch screen PLC Jacket blazer back vertical press machine equipment suit final press
1. Machine's advantage
3.1 >top buck vertically press down: top buck surface presses equally on suit back
3.2 >Touch-screen PLC could more advanced function
3 level safety protection device
buck gap is able to be adjusted between 0-50mm in PLC program
3.3 >Hydraulic type 180mm length shock absorber (long life use)
3.4 >with laser light for locating garment
3.5 >top buck and bottom buck with steam heating chamber
3.6 >Top steam spray by Japan design valve (steam: dry & huge valume)
3.7 >Steam spray: top + bottom
3.8 >Vacuum: bottom + top
3.9 >top buck with extra stainless steel heating pipe
2. Machine's application
4.1 >High class wool jacket blazer back suit final press
4.2 >Dark color light fabric jacket blazer back suit final press
4.3 >classical jacket blazer back suit final press
4.4 >formal jacket blazer back suit final press
3. Instructions:
CXAJ-122.123 (Left front press) is used to press jacket blazer suit back in suit final press line.
They are designed for different kind of fabric with many different functions
4. Machine perameter:
| Model | CXAJ-122.123 double back |
| Control | Automatic touch-screen PLC |
| Total pressure | 750kg |
| Steam | 0.4-0.6MPa (35kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 3.0kw extra vacuum pump 2”x2 |
| Drained water | 1/2” |
| Buck gap | 0-50mm set in PLC |
| Location pilot | Laser light *4 |
| Dimension | 1750x1200x1650mm |
| Net weight | 520kg |

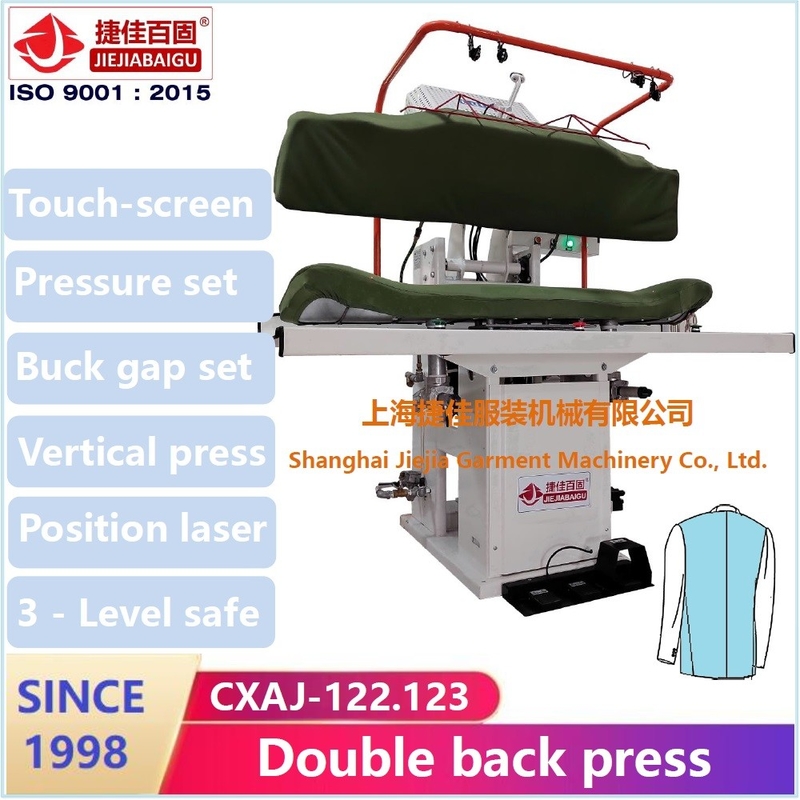

5. Machine's picture
6. Full machine list for suit final press
| NO. | Model | Description of machine | Dimension: L x W x H |
| 1 | CXAJ-107 | Left front press | 1200x1200x1650mm |
| 2 | CXAJ-108 | Right front press | 1200x1200x1650mm |
| 3 | CXAJ-122 | Left back press | 1200x1200x1650mm |
| 4 | CXAJ-123 | Right back press | 1200x1200x1650mm |
| 5 | CXAJ-126 | Double lapel | 900x1200x1650mm |
| 6 | CXEJ-116.117 | Double shoulder | 1000x1000x2150mm |
| 7 | CXGJ-547 | Collar master | 1100x1100x2150mm |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300mm |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300mm |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300mm |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300mm |
7. Company profile:
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998. Over 20 years we developed 5 series of main product:
8. Q&A
1.How could I get more information?
please contact with E-mail.
2. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference
3. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.
4. Do you have machine video?
Yes. please contact with us.
5. Are you factory?
Yes. We have manufactured for over 20 years.
6.Our garment is export to USA. Do you have suitable buck?
Yes. We have different types of buck series for your reference.
7.Our factory production is not much, could I have some suggestion about the machine?
Yes. We have double buck machine for small production factory.
8.Do you have English manual and installation instruction?
Yes. We have all machine with English manual and installation instruction.
9.Could you supply OEM product?
Yes. We are supplying many OEM machine for Italy, English, American customer.
10. Could you supply with demo machine?
We could supply with demo machine but it is could be charged for some cost.
