Product Details:
|
| Control: | Touch-sreen PLC 7" | Press: | Vertical X 3 |
|---|---|---|---|
| Heat: | Steam Heat | Drive: | Compressed Air / Cylinder |
| Buck: | Top 3 Bucks | Buck Gap: | Adjust In PLC 0-50 |
| Steam Spray: | Italy Made Valve X 3 | Vacuum: | Bottom Buck |
| High Light: | Touch Screen Cloth Press Machine,Vertical Cloth Press Machine,1.5KW automatic press cloth machine |
||
Touch screen Jacket blazer collar master press machine equipment suit final press
1. Instructions:

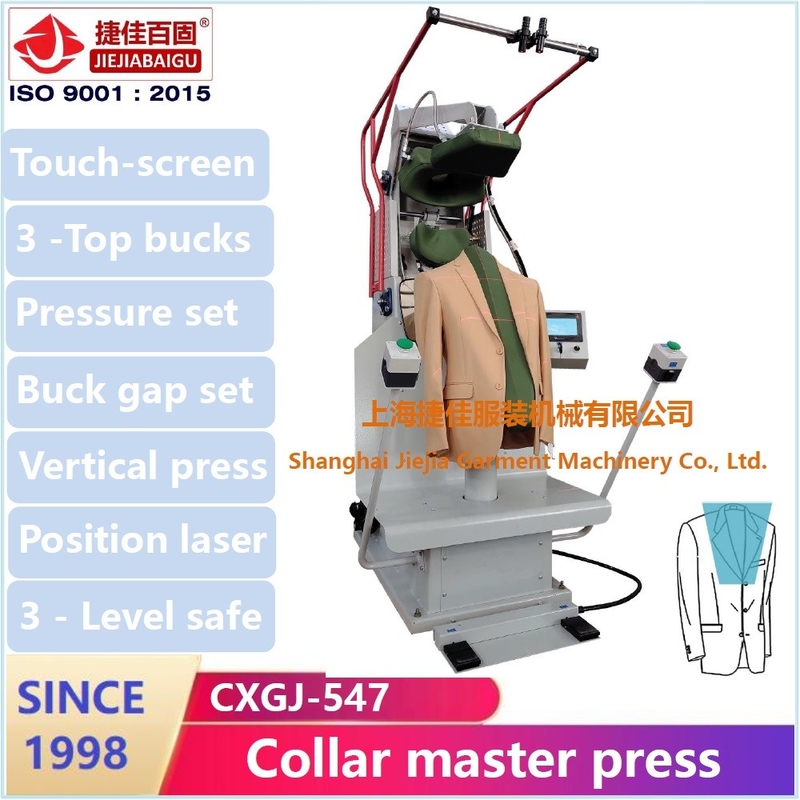

CXGJ-547 collar master pressing machine is used to press jacket blazer suit collar in suit final press line.
They are designed for different kind of fabric with many different functions, and for different types of suits, jacket or blazer.
II. Automatic suit jacket press machine (double lapel)
| Model | CXGJ-547 collar master |
| Control | Automatic touch-screen PLC |
| Total pressure | 150kg |
| Steam | 0.4-0.6MPa (18kg/h) 1/2” |
| Compress air | 0.4-0.6MPa (15L/min) 8mm |
| Electric power | 220V/1ph/50HZ |
| Vacuum | 1.5kw extra vacuum pump 2” |
| Drained water | 1/2” |
| Dimension | 1000x1000x2150mm |
| Net weight | 380kg |
3. Machine's advantage
3.1 ) Vertically press: by 3 top bucks to bottom bucks with equal pressur
3.2 ) Touch-screen PLC with more input and ouput working ways
3 level safety protection design device
buck gap is able to set between 0-50mm in PLC controller
3.3 ) Advanced designed 180mm length shock absorber (lons life use)
3.4 ) with location pilot laser light on bottom buck
3.5 ) top buck and bottom buck with steam heating chamber
3.6 ) Top steam spray by Italy impoted valve
3.7 ) Steam spray: 3 x top + 1x bottom
3.8 ) Vacuum: bottom + top
3.9 ) top buck with extra heating stainless steel pipe
4. Machine's application
4.1 ) High class wool jacket blazer front suit final press
4.2 ) Dark color light fabric jacket blazer font suit final press
4.3 ) classical jacket blazer font suit final press
4.4 ) formal jacket blazer font suit final press
4.5 ) uniform jacket collar press together with lapel
4.6 ) formal jacket blazer collar with lapel or without lapel (set in PLC)
5. Machine's picture
IV. Full final suit press machine
| NO. | Model | Description of machine | Dimension: L x W x H mm |
| 1 | CXAJ-107 | Left front press | 1200x1200x1650 |
| 2 | CXAJ-108 | Right front press | 1200x1200x1650 |
| 3 | CXAJ-122 | Left back press | 1200x1200x1650 |
| 4 | CXAJ-123 | Right back press | 1200x1200x1650 |
| 5 | CXAJ-126 | Double lapel | 900x1200x1650 |
| 6 | CXEJ-116.117 | Double shoulder | 1000x1000x2150 |
| 7 | CXGJ-547 | Collar master (with lapel) | 1100x1100x2150 |
| 8 | CZBJ-104 | Sleeve front | 900x1200x1300 |
| 9 | CZBJ-105 | Sleeve elbow | 900x1200x1300 |
| 10 | CZBJ-114 | Sleeve arm-hole | 900x1200x1300 |
| 11 | CABJ-114-14 | Sleeve blocking | 900x1200x1300 |
7. Company profile:
Shanghai Jiejia Garment Machinery Co., Ltd. was registered in 1998 (start on 1995). Over 20 years we developed 6 series of main product:
Any customer could find his satisfied machinery and acceptable price for economical class or high class.
Jiejia could supply with full solution for all kinds of garment ironing purpose like: suits, pant, shirt, T-shirt, sweater, coat and so on.
8. Q&A
|
1.Q |
How could I get more information |
|
A |
Please contact with our E-mail or local agent. |
|
2.Q |
Do you have another type of machine? |
|
A |
Yes. We have 3 different levels of machine for your reference |
|
3.Q |
Do you have any customer factory to see? |
|
A |
Yes. Please contact with us to find close one for you. |
|
4.Q |
Do you have machine video? |
|
A |
Yes. Please contact with us. |
|
5.Q |
Are you factory? |
|
A |
Yes. We started to manufacture on 1995 |
|
6.Q |
Our garment is export to different countries. Do you have suitable buck? |
|
A |
Yes. We have different types of buck series for your reference. |
|
7.Q |
Our factory production is not much, could I have some suggestion? |
|
A |
Yes. We have double buck machine for small production factory. |
|
8.Q |
Do you have English manual and installation instruction? |
|
A |
Yes. We have all. |
|
9.Q |
Could you supply OEM product? |
|
A |
Yes. We are supplying OEM machine for Italy, English, American customer. |
|
10.Q |
Could you supply with demo machine? |
|
A |
We could supply with demo machine with some cost. |
