Product Details:
Place of Origin: CHINA, SHANGHAI
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CYHJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day

Shirt Pressing Machine ironing machine for shirt left front body rotary move & vertical press teflon cover buck

Description
Buck Move: Servo Motro-drive Press: Vertical 200 Supper High Pressure
Heat: Electric Cool: Vacuum Pump
Vacuum: Build-in 0.75kw Buck Size: LEFT FRONT SHIRT
Safety: 3 Level Design Buck Number: 3 Bucks
High Light:

800mm Shirt Pressing Machine

,

400mm Shirt Pressing Machine

,

Water Cool automatic press for clothes

Rotary 2 work position Shirt pressing machine touch screen PLC shirt final press

Right front body





  Factory

The company established a production base in Shanghai in 1998, with more than 22 years of clothing ironing equipment design, research and development, production experience

Customers are all in China, in Southeast Asia, Europe, America, Africa and other countries

Our company has passed is090001-2015 quality system certification.

There are 5 main departments, such as technology development department, product design department, product sales department, accounting department and production management department. The main products include: 1 - suit ironing machine 2 - shirt ironing machine 3 - trousers 4- jeans denimironing machine.



1. Instructions of CYHJ-X110
CYHJ-S107 is used to fuse and press left front body in shirt final press.
It has temperature adjustment according to different shirt requirement

1, Available to press any special parts of cloth.
2, With strong vacuum moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...

2. Automatic CYHJ-S107shirt final press

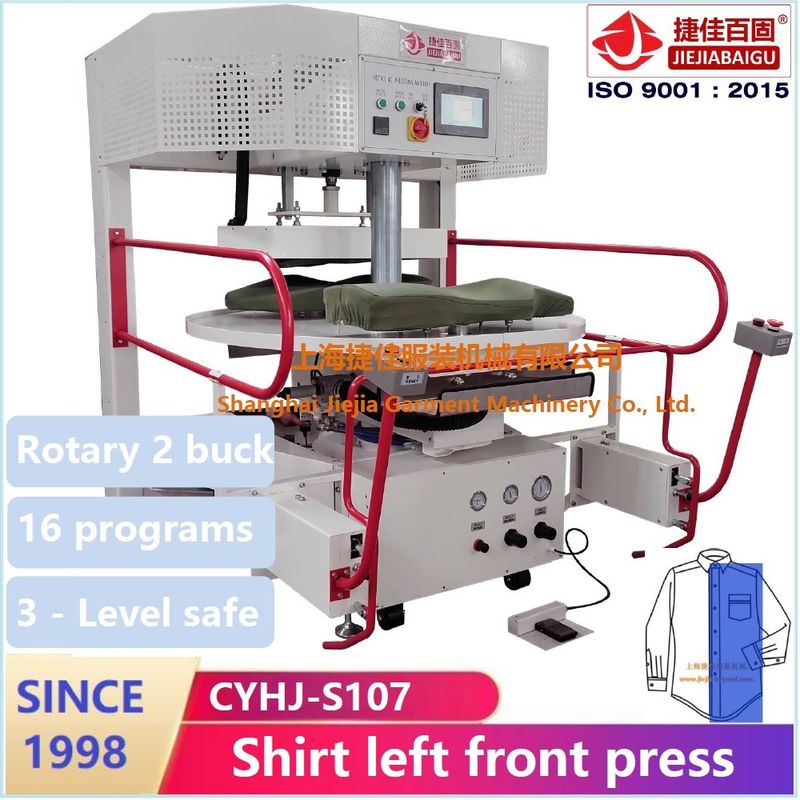

Model CYHJ-S107 left front shirt
Control Automatic touch-screen PLC 7" color
Total pressure 1,200kg
Buck size CNC processed left front shirt
Compress air 0.4-0.6MPa (80L/min) 8mm inlet
Electric power 380V/3ph/50HZ, 5KW power
Vacuum 1.5kw build-in vacuum pump in
Heating electric element
Dimension 1650x1820x1850mm
Net weight 1,200kg



3. Machine's advantage points
3.1 / Rotary bottom buck move type
& Vertical press with equal pressure design
3.2 / Touch-screen PLC 7" color controller with more using ways
3 level safety protection design for more safety purpose
output and input signal, for easy check fault in PLC
3.3 /Top buck with teflon cover surface
3.4 / top buck with electric heating stainless steel
3.5 / Digital temperature controller zone
3.6 /bottom buck with vacuum
3.7 /build-in vacuum unit
3.8 /Vacuum: step-run, release-stop
3.9 /emergency stop
3.10 / CNC processed bucks

4. Machine's application
4.1 /shirt body side seam and sleeve seam fuse and press machine
4.2 /shirt arm-hole seam fuse and press machine
4.3 /shirt shoulder seam fuse and press machine
4.4 /shirt back seam fuse and press machine

4.5 /shirt front press

4.6 /shirt back press

4.7 /shirt sleeve press machine

4.8 /shirt collar & cuff press machine

4.9 /shirt bottom seam press machine



5. Machine list of Shirt final press

NO. Model Description of machine
1 CS-X110 Body side seam & sleeve seam fuse press
2 CS-B116 Shoulder and back seam fuse press
3 CS-L220 Collar & cuff press (THIS MACHINE)
4 CZAJ-X110 Body side seam & sleeve seam fuse press
5 CZAJ-B116 Shoulder and back seam fuse press
6 CZAJ-L220 Collar & cuff press
7 CZAJ-M112 Front placket press
8 CYHJ-S108 Rotary right front press
9 CYHJ-S107 Rotary left front press
10 CYHJ-X110L Rotary side seam press
11 CYHJ-S132 Rotary back press
12 CYHJ-X113 Rotary sleeve press
13 CZAJ-S118 Body bottom seam fuse press
14 CS-230 Thread suction machine
15 CS-205 Shirt blowing machine
16 CS-L210 Cold and hot collar press machine
17 CS-240 Shirt folding table.



6 Q&A

1.How could I get more information?
please contact with our E-mail or local agent.

2. Do you have another type of machine ?
Yes. we have 3 different levels of machine for your reference

3. Do you have any customer factory to see?
Yes. please contect with us to find close one for you.

4. Do you have machine video?

Yes. please contact with us.

5. Are you factory?

Yes. We started to manufacture on 1995

6.Our garment is export to USA. Do you have suitable buck?

Yes. We have different types of buck series for your reference.

7.Our factory production is not much, could I have some suggestion about the machine?

Yes. We have double buck machine for small production factory.

8.Do you have English manual and installation instruction?

Yes. We have all machine with English manual and installation instruction.

9.Could you supply OEM product?

Yes. We are supplying many OEM machine for Italy, English, American customer.

10. Could you supply with demo machine?

We could supply with demo machine but it is could be charged for some cost.





7. Machine picture:

Shirt Pressing Machine ironing machine for shirt left front body rotary move & vertical press teflon cover buck 0

Shirt Pressing Machine ironing machine for shirt left front body rotary move & vertical press teflon cover buck 1Shirt Pressing Machine ironing machine for shirt left front body rotary move & vertical press teflon cover buck 2

Shirt Pressing Machine ironing machine for shirt left front body rotary move & vertical press teflon cover buck 3Shirt Pressing Machine ironing machine for shirt left front body rotary move & vertical press teflon cover buck 4
