Product Details:
|
| Buck Move: | Air Cylinder | Press: | Blowing |
|---|---|---|---|
| Heat: | Electric & Steam | Cool: | Air Blowing |
| Blow: | Build-in | Buck Size: | Normal Man |
| Safety: | 3 Level Design | Buck Number: | 6 |
| High Light: | Shirt cloth automatic press machine,0.6MPa cloth automatic press machine,0.4MPa cloth steam press |
||

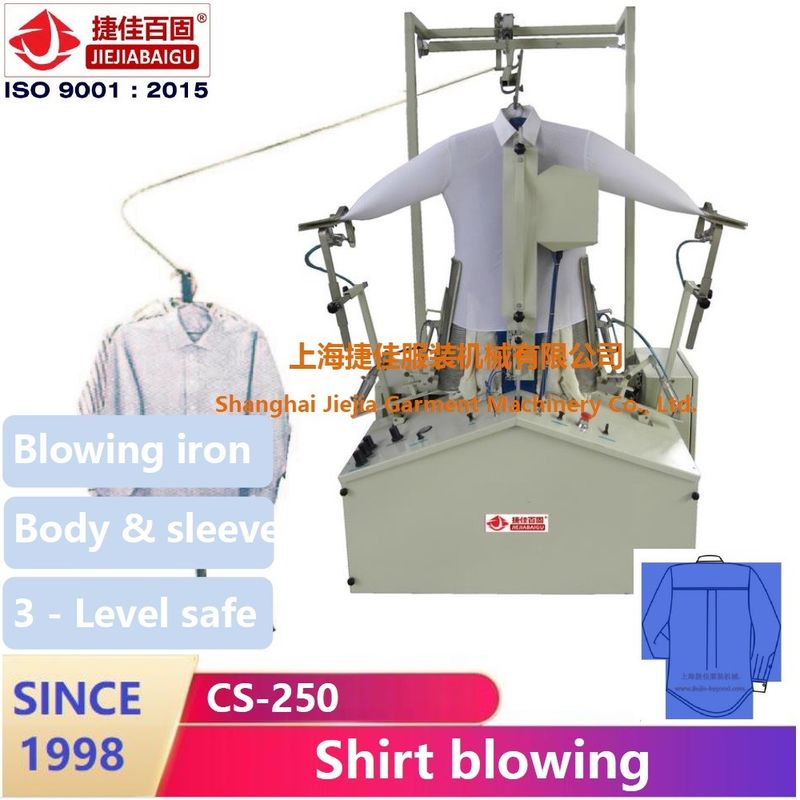

Wrinke free Shirt body & sleeve blowing machine 3-D dummy
1. Instructions of CS-250
It is used to ironing sleeve and body in shirt final press.
It has temperature adjustment according to different shirt requirement
It has strong air blowing to expend shirt body and sleeve.
1, Available to press any special parts of cloth.
2, With strong hot air blowing system.
3, With strong cold air blowing system.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...
2. Automatic CYHJ shirt final press
| Model | CS-250 shirt body & sleeve blowing machine / 3-D dummy |
| Control | Automatic touch-screen PLC 7" |
| Steam | yes |
| how air blowing | yes |
| Compress air | 0.4-0.6MPa (80L/min) 8mm |
| Electric power | 380V/3ph/50HZ, 5KW |
| cold air blow | yes |
| Heating | electric & steam |
| Dimension | 1200x820x2000mm |
| Net weight | 470kg |
3. Machine's advantage points
3.1 / one step to iron body, sleeve, front placket & pocket
3.2 / Touch-screen PLC controller with more using ways
3 level safety protection design for more safety purpose
output and input signal, for easy check fault in PLC
3.3 / steam spray from inside
3.4 / strong hot air blows from inside
3.5 / strong cold air blows from inside
3.6 / body size is automatic ajusted
3.7 / non-press-crease on sleeve
3.8 / all function time is adjustable on PLC
3.9 /emergency stop
3.10 / stainless steel bucks
4. Machine's application
4.1 /shirt body side seam and sleeve seam fuse and press
4.2 /shirt arm-hole seam fuse and press
4.3 /shirt shoulder seam fuse and press
4.4 /shirt back seam fuse and press
4.5 /shirt front press
4.6 /shirt back press
4.7 /shirt sleeve press
4.8 /shirt collar & cuff press
4.9 /shirt bottom seam press
5. Machine picture:
6. Machine list of Shirt final press
| NO. | Model | Description of machine |
| 1 | CS-X110 | Body side seam & sleeve seam fuse press |
| 2 | CS-B116 | Shoulder and back seam fuse press |
| 3 | CS-L220 | Collar & cuff press (THIS MACHINE) |
| 4 | CZAJ-X110 | Body side seam & sleeve seam fuse press |
| 5 | CZAJ-B116 | Shoulder and back seam fuse press |
| 6 | CZAJ-L220 | Collar & cuff press |
| 7 | CZAJ-M112 | Front placket press |
| 8 | CYHJ-S108 | Rotary right front press |
| 9 | CYHJ-S107 | Rotary left front press |
| 10 | CYHJ-X110L | Rotary side seam press |
| 11 | CYHJ-S132 | Rotary back press |
| 12 | CYHJ-X113 | Rotary sleeve press |
| 13 | CZAJ-S118 | Body bottom seam fuse press |
| 14 | CS-230 | Thread suction machine |
| 15 | CS-250 | Shirt blowing machine |
| 16 | CS-L210 | Cold and hot collar press machine |
| 17 | CS-240 | Shirt folding table. |
7.Question & Answer
| 1.Q | How could I get more information |
| A | Please contact by our Email or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Sure. We have 3 different types of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Sure. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Sure. Please contact with us. And we could send it you. |
| 5.Q | Are you factory? |
| A | Sure. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable mould? |
| A | Sure. We have different types of mould series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Sure. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Sure s. We have all. |
| 9.Q | Could you supply O-E-M product? |
| A | Sure. We are supplying O-E-M machine for Italy, English, American customer. |
| 10.Q | Could you supply with test machine? |
| We could supply with test machine with some cost. |
