Product Details:
|
| Control: | TOUCH SCREEN Plc | Press: | Vertical Press Down |
|---|---|---|---|
| Heat: | Electric On Top Buck 3 Zones | Drive: | By Cylinder |
| Buck: | Collar And Cuff With Tefolong Cover | Vacuum: | Build-in Suction Pump |
| Air-bag: | Silicone Material | Safety: | 3 Protection Design Method |
| High Light: | Shirt Pressing Machine,Collar Shirt Pressing Machine,1.5KW machine press clothes |
||
Rotary 2 work position Shirt sleeve seam & side seam pressing machine touch screen PLC shirt final press
1. Instructions of CYHJ-X110
CYHJ-X110 is used to fuse and press sleeve seam & side seam in shirt final press.
It has temperature adjustment according to different shirt requirement
1, Available to press any special parts of cloth.
2, With strong vacuum moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...
2. Automatic CS-X110 shirt final press
| Model | CYHJ-X110 sleeve seam & side seam |
| Control | Automatic touch-screen PLC 7" |
| Total pressure | 1,200kg |
| Buck size | 2 bars for dual sleeve |
| Compress air | 0.4-0.6MPa (80L/min) 8mm |
| Electric power | 380V/3ph/50HZ, 5KW |
| Vacuum | 1.5kw build-in vacuum pump |
| Heating | electric |
| Dimension | 1650x1820x1850mm |
| Net weight | 1,200kg |
3. Machine's advantage points
3.1 / Rotary bottom buck move
& Vertical press with equal pressure

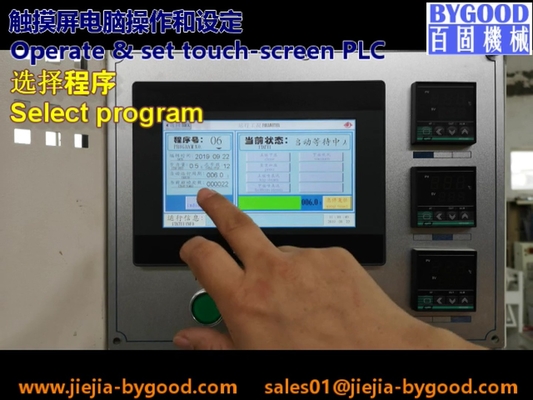

3.2 / Touch-screen PLC controller with more using ways
3 level safety protection design for more safety purpose
output and input signal, for easy check fault in PLC
3.3 /Top buck with teflon cover
3.4 / top buck with electric heating 3 heating zones
3.5 / Digital temperature controller
3.6 /bottom buck with vacuum
3.7 /build-in vacuum unit
3.8 /Vacuum: step-run, release-stop
3.9 /emergency stop
3.10 / CNC processed bucks
4. Machine's application
4.1 /shirt body side seam and sleeve seam fuse and press
4.2 /shirt arm-hole seam fuse and press
4.3 /shirt shoulder seam fuse and press
4.4 /shirt back seam fuse and press
4.5 /shirt front press
4.6 /shirt back press
4.7 /shirt sleeve press
4.8 /shirt collar & cuff press
4.9 /shirt bottom seam press
5. Machine picture:
6. Machine list of Shirt final press
| NO. | Model | Description of machine |
| 1 | CS-X110 | Body side seam & sleeve seam fuse press |
| 2 | CS-B116 | Shoulder and back seam fuse press |
| 3 | CS-L220 | Collar & cuff press (THIS MACHINE) |
| 4 | CZAJ-X110 | Body side seam & sleeve seam fuse press |
| 5 | CZAJ-B116 | Shoulder and back seam fuse press |
| 6 | CZAJ-L220 | Collar & cuff press |
| 7 | CZAJ-M112 | Front placket press |
| 8 | CYHJ-S108 | Rotary right front press |
| 9 | CYHJ-S107 | Rotary left front press |
| 10 | CYHJ-X110L | Rotary side seam press |
| 11 | CYHJ-S132 | Rotary back press |
| 12 | CYHJ-X113 | Rotary sleeve press |
| 13 | CZAJ-S118 | Body bottom seam fuse press |
| 14 | CS-230 | Thread suction machine |
| 15 | CS-205 | Shirt blowing machine |
| 16 | CS-L210 | Cold and hot collar press machine |
| 17 | CS-240 | Shirt folding table. |
7.Question & Answer
| 1.Q | How could I get more information |
| A | Please contact by our Email or local agent. |
| 2.Q | Do you have another type of machine? |
| A | Sure. We have 3 different types of machine for your reference |
| 3.Q | Do you have any customer factory to see? |
| A | Sure. Please contact with us to find close one for you. |
| 4.Q | Do you have machine video? |
| A | Sure. Please contact with us. And we could send it you. |
| 5.Q | Are you factory? |
| A | Sure. We started to manufacture on 1995 |
| 6.Q | Our garment is export to different countries. Do you have suitable mould? |
| A | Sure. We have different types of mould series for your reference. |
| 7.Q | Our factory production is not much, could I have some suggestion? |
| A | Sure. We have double buck machine for small production factory. |
| 8.Q | Do you have English manual and installation instruction? |
| A | Sure s. We have all. |
| 9.Q | Could you supply O-E-M product? |
| A | Sure. We are supplying O-E-M machine for Italy, English, American customer. |
| 10.Q | Could you supply with test machine? |
| We could supply with test machine with some cost. |
