shirt press machine rotary turn & vertical press for double sleeve

Certification
China shanghai jiejia garment machinery co .,ltd certification
China shanghai jiejia garment machinery co .,ltd certification
I'm Online Chat Now

shirt press machine rotary turn & vertical press for double sleeve

shirt press machine rotary turn & vertical press for double sleeve
shirt press machine rotary turn & vertical press for double sleeve shirt press machine rotary turn & vertical press for double sleeve shirt press machine rotary turn & vertical press for double sleeve shirt press machine rotary turn & vertical press for double sleeve

Large Image :  shirt press machine rotary turn & vertical press for double sleeve

Product Details:
Place of Origin: CHINA, SHANGHAI
Brand Name: JIEJIABAIGU
Certification: ISO9001:2015
Model Number: CS-X110
Payment & Shipping Terms:
Minimum Order Quantity: 2 sets
Price: price is negotiable
Packaging Details: wooden case
Delivery Time: 7-15 works day
Supply Ability: 40 units per month

shirt press machine rotary turn & vertical press for double sleeve

Description
Control: TOUCH SCREEN Press: Vertical Press
Heat: Electric On Top Buck Drive: By Air
Buck: CNC Processed Vacuum: Build-in Pump
Air-bag: Silicone Safety: 3 Protection Design
High Light:

Shirt clothes steam press machine

,

220V clothes steam press machine

,

Sleeve Seam automatic clothes press machine

Rotary 2 work position Shirt sleeve pressing machine touch screen PLC shirt final press

1. Instructions of CYHJ-X113
CYHJ-X113 is used to fuse and press sleeve in shirt final press.
It has temperature adjustment according to different shirt requirement

1, Available to press any special parts of cloth.
2, With strong vacuum moisture removing system.
3, Can press cloth dehydrated.
4, Using high-quality pneumatic components and with reasonable designed steam circuit. Controlled by compressed air.
5, Steam circuit is very simple and efficient. Temperature rises fast and with low heat ullage...

2. Automatic CS-X110 shirt final press

ModelCYHJ-X113 sleeve press
ControlAutomatic touch-screen PLC 7"
Total pressure1,200kg
Buck size2 bars for dual sleeve
Compress air0.4-0.6MPa (80L/min) 8mm
Electric power380V/3ph/50HZ, 5KW
Vacuum1.5kw build-in vacuum pump
Heatingelectric
Dimension1650x1820x1850mm
Net weight1,200kg



3. Machine's advantage points
3.1 / Rotary bottom buck move
        & Vertical press with equal pressure
3.2 /  Touch-screen PLC controller with more using ways
        3 level safety protection design for more safety purpose
        output and input signal, for easy check fault in PLC
3.3 /Top buck with teflon cover
3.4 / top buck with electric heating 3 heating zones
3.5 / Digital temperature controller
3.6 /bottom buck with vacuum
3.7 /build-in vacuum unit
3.8 /Vacuum: step-run, release-stop
3.9 /emergency stop
3.10 / CNC processed bucks

4. Machine's application
4.1 /shirt body side seam and sleeve seam fuse and press
4.2 /shirt arm-hole seam fuse and press
4.3 /shirt shoulder seam fuse and press
4.4 /shirt back seam fuse and press
4.5 /shirt front press
4.6 /shirt back press
4.7 /shirt sleeve press
4.8 /shirt collar & cuff press
4.9 /shirt bottom seam press

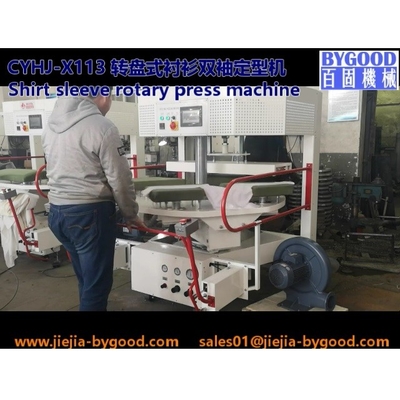

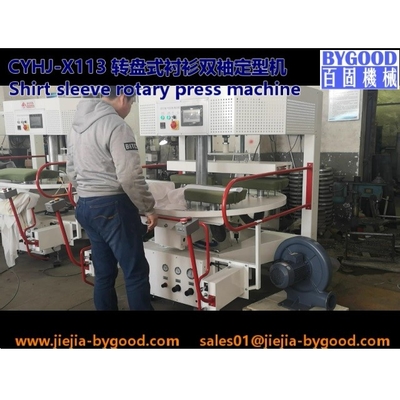

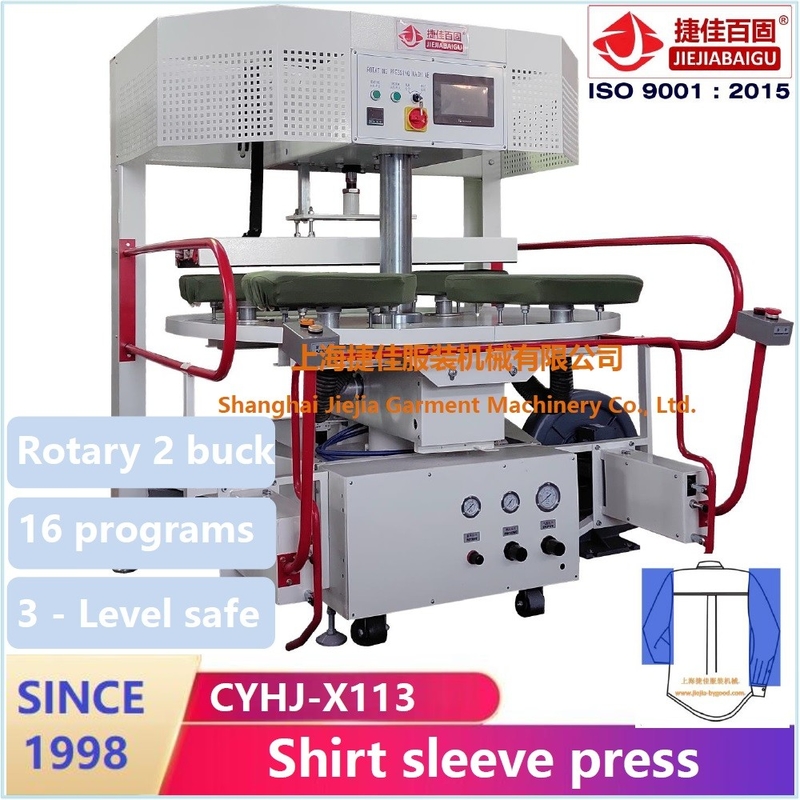

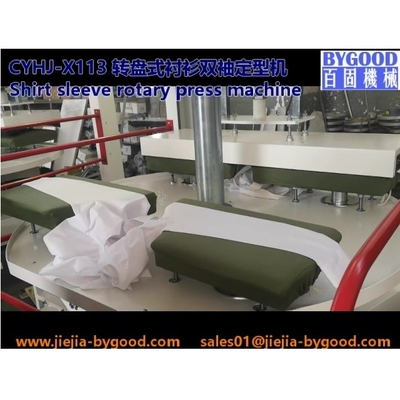

5. Machine's picture
shirt press machine rotary turn & vertical press for double sleeve 0

shirt press machine rotary turn & vertical press for double sleeve 1shirt press machine rotary turn & vertical press for double sleeve 2


6. Machine list of Shirt final press

NO.ModelDescription of machine
1CS-X110Body side seam & sleeve seam fuse press
2CS-B116Shoulder and back seam fuse press
3CS-L220Collar & cuff press
4CZAJ-X110Body side seam & sleeve seam fuse press
5CZAJ-B116Shoulder and back seam fuse press
6CZAJ-L220Collar & cuff press
7CZAJ-M112Front placket press
8CYHJ-S108Rotary right front press
9CYHJ-S107Rotary left front press
10CYHJ-X110LRotary side seam press
11CYHJ-S132Rotary back press
12CYHJ-X113Rotary sleeve press
13CZAJ-S118Bottom seam fuse press
14CS-230Thread suction machine
15CS-205Shirt blowing machine
16CS-L210Cold and hot collar press machine
17CS-240Shirt folding table.



7.Question & Answer


1.QHow could I get more information
APlease contact with our E-mail or local agent.
2.QDo you have another type of machine?
ASure. We have 3 different levels of machine for your reference
3.QDo you have any customer factory to see?
ASure. Please contact with us to find close one for you.
4.QDo you have machine video?
ASure. Please contact with us.
5.QAre you factory?
ASure. We started to manufacture on 1995
6.QOur garment is export to different countries. Do you have suitable buck?
ASure. We have different types of buck series for your reference.
7.QOur factory production is not much, could I have some suggestion?
ASure. We have double buck machine for small production factory.
8.QDo you have English manual and installation instruction?
ASure s. We have all.
9.QCould you supply OEM product?
ASure. We are supplying OEM machine for Italy, English, American customer.
10.QCould you supply with demo machine?
 We could supply with demo machine with some cost.
